VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )VZN185

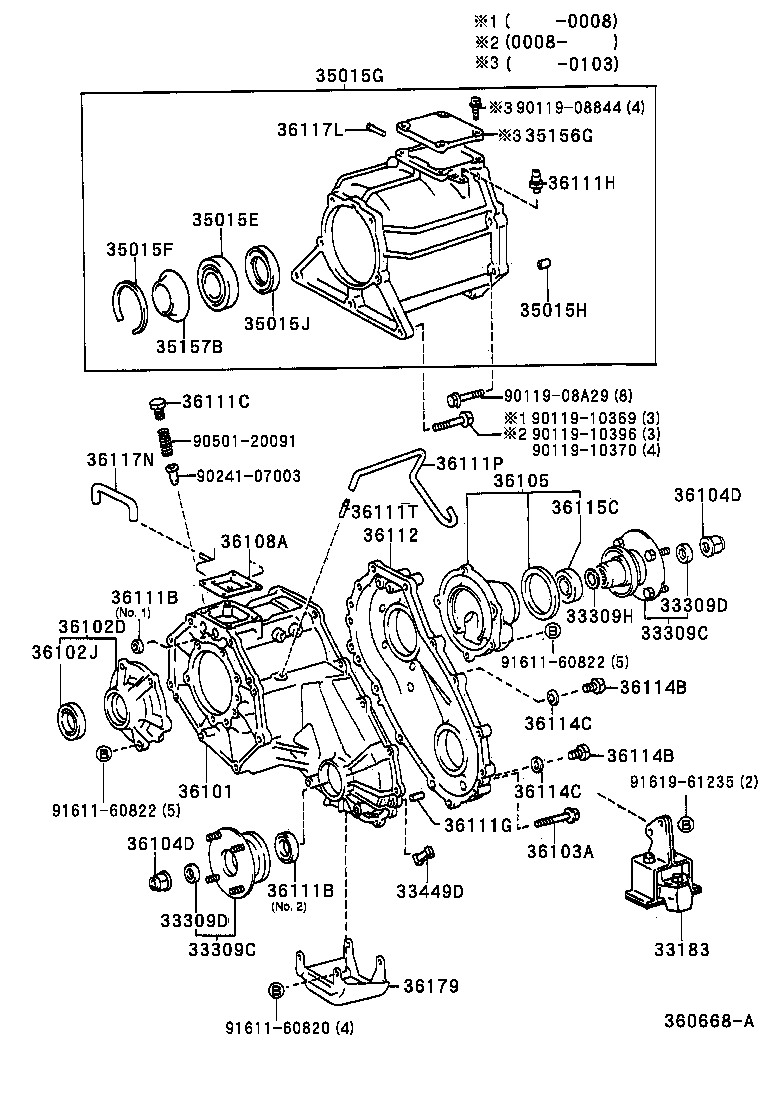

Click highlighted areas on diagram

diagram 33183 33309C 33309C 33309D 33309D 33309H 33449D 35015E 35015F 35015G 35015H 35015J 35156G 35157B 36101 36102D 36102J 36103A 36104D 36104D 36105 36108A 36111B 36111B 36111C 36111G 36111H 36111P 36111T 36112 36114B 36114B 36114C 36114C 36115C 36117L 36117N 36179 9011908844 9011908A29 9011910369 9011910370 9011910396 9024107003 9050120091 9161160820 9161160822 9161160822 9161961235
Part # Description Qty Price
33183 - DAMPER, TRANSFER DYNAMIC
33183-35050

VZN185

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

KDN185,KZN185,RZN185,VZN185

ﾘﾔ

 1
33309-35100

KDN185,KZN185,RZN185,VZN185

ﾌﾛﾝﾄ

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35091

KDN185,KZN185,RZN185,VZN185

ﾘﾔ

 1
33309-35100

KDN185,KZN185,RZN185,VZN185

ﾌﾛﾝﾄ

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

KDN185,KZN185,RZN185,VZN185

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

KDN185,KZN185,RZN185,VZN185

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

KDN185,KZN185,RZN185,VZN185

歯数=30,外径=38

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

KDN185,KZN185,RZN185,VZN185

 1
35015E - BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)
90363-37001

KDN185,KZN185,RZN185,VZN185..4FC

 1
35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER)
90521-72001

KDN185,KZN185,RZN185,VZN185..4FC

 1
35015G - ADAPTER, TRANSFER, REAR
35015-35030

VZN185

 1
35015-35060

VZN185

 1
35015H - PIN, RING(FOR TRANSFER CASE)
90253-11001

KDN185,KZN185,RZN185,VZN185..4FC

 2
35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
90311-40007

KDN185,KZN185,RZN185,VZN185..4FC

 1
35156G - COVER, TRANSMISSION CASE REAR ADAPTER
35156-35010

VZN185

 1
35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL
35157-35010

KDN185,KZN185,RZN185,VZN185..4FC

 1
35157-60010

KDN185,RZN185,VZN185

 1
36101 - CASE SUB-ASSY, TRANSFER
36111-35070

VZN185;KZN185..SSRG;KZN185..SSRX..TDI

 1
36111-35070

RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35032

KDN185,RZN185,VZN185

 1
36102-35031

KDN185,KZN185,RZN185,VZN185

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021

KDN185,KZN185,RZN185,VZN185

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

KDN185,KZN185,RZN185,VZN185

*8−1.25PX55−30

 12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

KDN185,KZN185,RZN185,VZN185

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

KDN185,KZN185,RZN185,VZN185

 2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-35040

KDN185,KZN185,RZN185,VZN185

 1
36108A - DEFLECTOR SUB-ASSY, BREATHER OIL
36108-35060

VZN185

 1
36108-35060

VZN185;RZN185..SSR

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

KDN185,KZN185,RZN185,VZN185

NO.2

 1
90311-41011

KDN185,RZN185,VZN185

NO.2

 1
90311-15008

VZN185;KZN185..SSRG;KZN185..SSRX..TDI

NO.1

 2
90311-15008

RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185

NO.1

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008

KDN185,KZN185,RZN185,VZN185

NO.2

 1
90311-41011

KDN185,RZN185,VZN185

NO.2

 1
90311-15008

VZN185;KZN185..SSRG;KZN185..SSRX..TDI

NO.1

 2
90311-15008

RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185

NO.1

 2
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

KDN185,KZN185,RZN185,VZN185

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

KDN185,KZN185,RZN185,VZN185

長さ=14,外径=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03085

KDN185,KZN185,RZN185,VZN185..4FC

 1
36111P - HOSE, BREATHER (FOR TRANSFER CASE)
90447-08119

KZN185,VZN185..WIB

長さ=540

 1
90447-08119

KZN185,RZN185,VZN185..WIB

長さ=540

 1
90447-08119

KDN185,KZN185,RZN185,VZN185

長さ=540

 1
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

KDN185,KZN185,RZN185,VZN185

 1
36112 - CASE, TRANSFER, REAR
36112-35060

RZN185..NOB;RZN185..SSRG;KDN185,KZN185,VZN185

 1
36112-35060

VZN185;KZN185..SSRG;KZN185..SSRX..TDI

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

KDN185,KZN185,RZN185,VZN185

 2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

KDN185,KZN185,RZN185,VZN185

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

KDN185,KZN185,RZN185,VZN185

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

KDN185,KZN185,RZN185,VZN185

 2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

KDN185,KZN185,RZN185,VZN185

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

KDN185,KZN185,RZN185,VZN185

 1
36117N - HOSE(FOR TRANSFER ADAPTER)
90904-45005

KDN185,KZN185,RZN185,VZN185..4FC

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-35010

KDN185,KZN185,RZN185,VZN185

 1
Common parts
90119-08844
90119-08A29
90119-10369
90119-10370
90119-10396
90241-07003
90501-20091
91611-60820
91611-60822
91619-61235
