VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )VZN18#

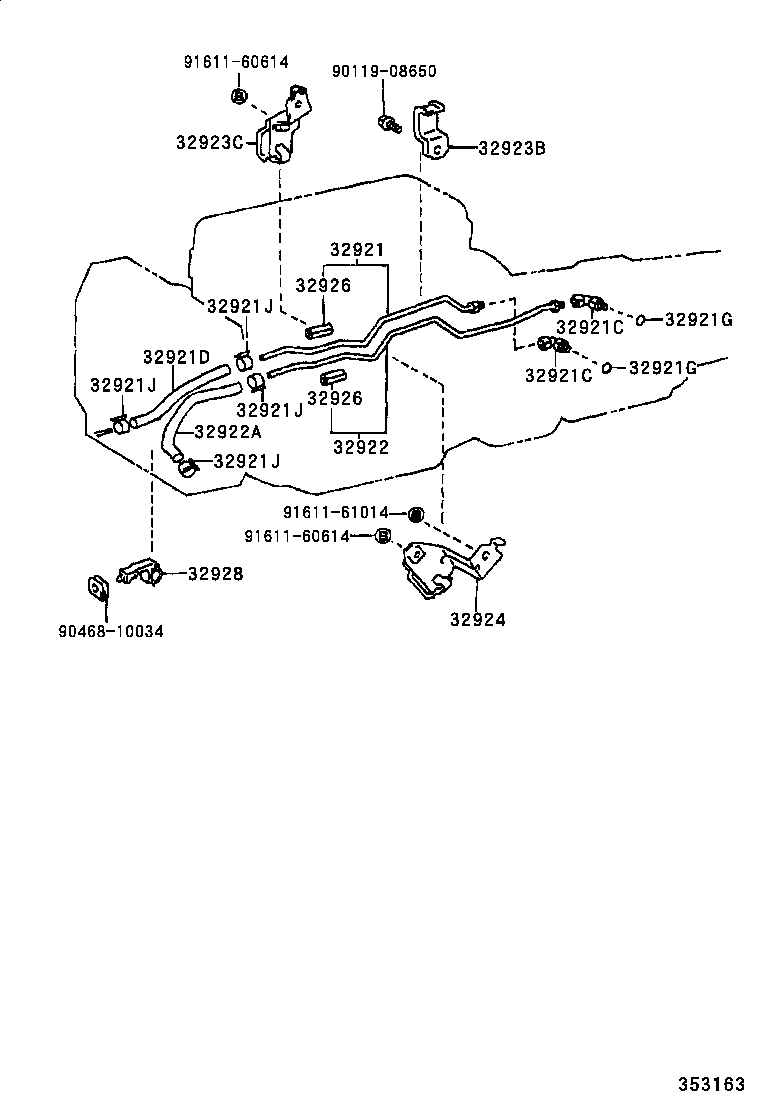

Click highlighted areas on diagram

A340E,A340F

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923B 32923C 32924 32926 32926 32928 9011908650 9046810034 9161160614 9161160614 9161161014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-35270

VZN18#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

KDN185,KZN185,RZN18#,VZN18#..4FC

ｱｳﾄﾚｯﾄ

 1
90407-16012

RZN18#,VZN18#..4FC

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

KDN185,KZN185,RZN18#,VZN18#..4FC

ｱｳﾄﾚｯﾄ

 1
90407-16012

RZN18#,VZN18#..4FC

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-35260

VZN18#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

KDN185,KZN185,RZN18#,VZN18#..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

KDN185,KZN185,RZN18#,VZN18#..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

KDN185,KZN185,RZN18#,VZN18#..4FC

 4
90467-16013

RZN185..4FC;KZN185..4FC..SSRX..TDE;KZN185,VZN185..4FC..(SSRG,SSRV)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

KDN185,KZN185,RZN18#,VZN18#..4FC

 4
90467-16013

RZN185..4FC;KZN185..4FC..SSRX..TDE;KZN185,VZN185..4FC..(SSRG,SSRV)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

KDN185,KZN185,RZN18#,VZN18#..4FC

 4
90467-16013

RZN185..4FC;KZN185..4FC..SSRX..TDE;KZN185,VZN185..4FC..(SSRG,SSRV)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

KDN185,KZN185,RZN18#,VZN18#..4FC

 4
90467-16013

RZN185..4FC;KZN185..4FC..SSRX..TDE;KZN185,VZN185..4FC..(SSRG,SSRV)

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-35300

VZN18#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-35110

VZN18#

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-24060

KDN185,KZN185,RZN18#,VZN18#..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-35120

VZN18#

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32909-34050

VZN18#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

KDN185,KZN185,RZN18#,VZN18#..4FC

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

KDN185,KZN185,RZN18#,VZN18#..4FC

長さ=35,内径=10

 6
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-35070

VZN18#

 1
Common parts
90119-08650
90468-10034
91611-60614
91611-61014
