VZN185W-GAPGK (1995)
Toyota Hilux Surf
Production
Nov 1995
-
Nov 2002
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )VZN185

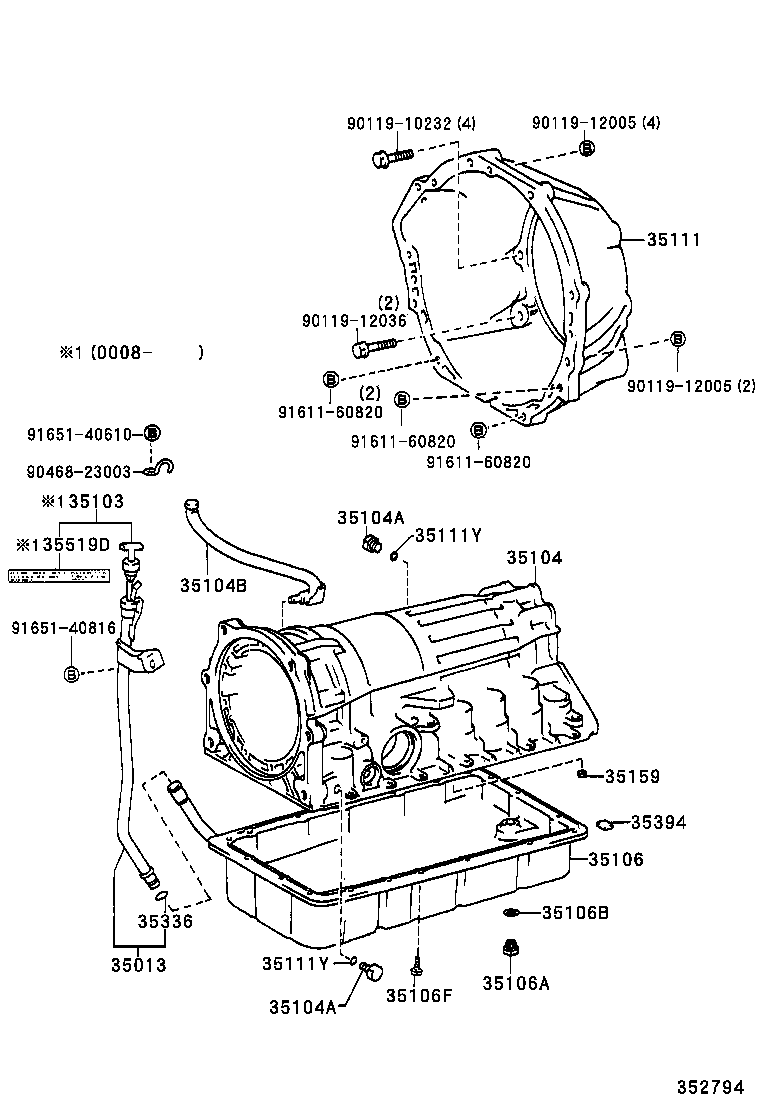

Click highlighted areas on diagram
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-35300 |
VZN185 |
1 | ||
| 35013-34060 |
VZN18# |
1 | ||
| 35013-35400 |
VZN185 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-35360 |
VZN185 |
1 | ||
| 35103-35310 |
VZN185 |
1 | ||
| 35103-35460 |
VZN185 |
1 | ||
| 35103-34060 |
VZN185 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-60170 |
RZN185,VZN185 |
1 | ||
| 35104-35011 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
RZN18#,VZN18#..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
RZN18#,VZN18#..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03116 |
VZN185 |
1 | ||
| 90930-03116 |
RZN185,VZN185 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-35110 |
VZN185 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
KDN185,VZN185 |
1 | ||
| 90341-10006 |
KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 35178-50010 |
RZN18#,VZN185 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35060 |
VZN18# |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
KDN185,KZN185,RZN185,VZN18#..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDN185,VZN185 |
4 | ||
| 35394-30011 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
RZN18#,VZN185 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12005 | ||||
| 90119-12036 | ||||
| 90468-23003 | ||||
| 91611-60820 | ||||
| 91651-40610 | ||||
| 91651-40816 | ||||
