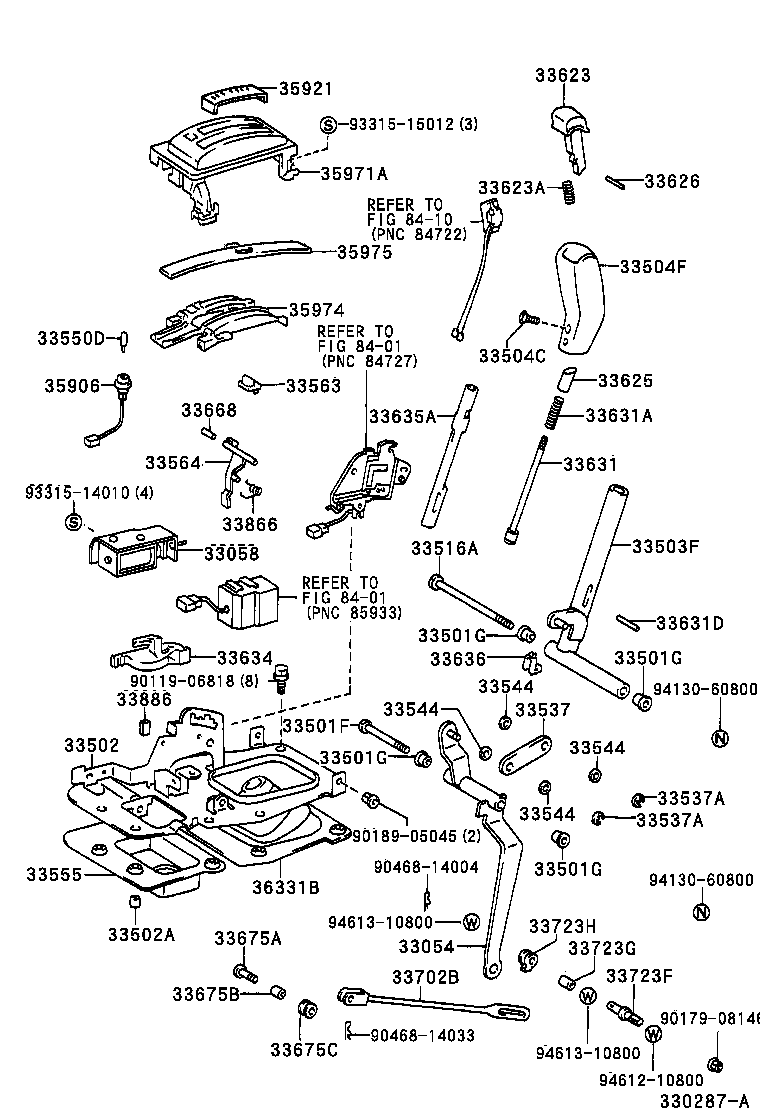

VZN185W-GAPGK (1995)
Toyota Hilux Surf
(9511- )KZN185,RZN185,VZN185..4FC ; (0008-)KDN185,RZN180
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-35020 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33054-35020 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-35070 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33058-35070 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-35180 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33511-35180 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KDN185,RZN18#,VZN185 |
4 | ||
| 90385-11003 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KDN185,RZN18#,VZN185 |
4 | ||
| 90385-11003 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KDN185,RZN18#,VZN185 |
4 | ||
| 90385-11003 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KDN185,RZN18#,VZN185 |
4 | ||
| 90385-11003 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-35370 |
KDN185,KZN185,RZN185,VZN185..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
KZN185,RZN185,VZN185..4FC 外径=8.8 |
8 | ||
| 90387-06065 |
KDN185,RZN18#,VZN185 外径=8.8 |
8 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-35080 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33055-35080 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-35170C0 |
KZN185,RZN185,VZN185..4FC BLACK,TRIM1#,4# |
1 | ||
| 33542-35170C0 |
KZN185,RZN185,VZN185..4FC BLACK,TRIM1# |
1 | ||
| 33542-35170C0 |
KZN185,RZN185,VZN185..WIB..4FC BLACK,TRIM1#,4# |
1 | ||
| 33542-35170C0 |
KDN185,KZN185,RZN18#,VZN185..4FC..(SSRG,SSRV,SSRX) BLACK,TRIM1#,4# |
1 | ||
| 33516A - SHAFT, CONTROL, NO.3 | ||||
| 33516-35010 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33516-35010 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-35030 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33537-35030 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
KZN185,RZN185,VZN185..4FC |
2 | ||
| 90523-06019 |
KDN185,RZN18#,VZN185 |
2 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
KZN185,RZN185,VZN185..4FC |
2 | ||
| 90523-06019 |
KDN185,RZN18#,VZN185 |
2 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33544-27010 |
KDN185,RZN18#,VZN185 |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33544-27010 |
KDN185,RZN18#,VZN185 |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33544-27010 |
KDN185,RZN18#,VZN185 |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
KZN185,RZN185,VZN185..4FC |
4 | ||
| 33544-27010 |
KDN185,RZN18#,VZN185 |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
KZN185,RZN185,VZN185..4FC 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
KDN185,RZN18#,VZN185 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-35160 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33555-35160 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-35080 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33563-35080 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-35110 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33564-35110 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-35051C0 |
KZN185,RZN185,VZN185..4FC BLACK,TRIM1#,4# |
1 | ||
| 33623-35050C0 |
KZN185,RZN185,VZN185..4FC BLACK,TRIM1# |
1 | ||
| 33623-35051C0 |
KZN185,RZN185,VZN185..WIB..4FC BLACK,TRIM1#,4# |
1 | ||
| 33623-35051C0 |
KDN185,KZN185,RZN18#,VZN185..4FC..(SSRG,SSRV,SSRX) BLACK,TRIM1#,4# |
1 | ||
| 33623-35051C0 |
KZN185,RZN185,VZN185..4FC BLACK,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06074 |
KDN185,RZN18#,VZN185 |
1 | ||
| 90501-06074 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-35050 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33625-35050 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 90256-02002 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 90256-02002 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-35050 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33631-35050 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
KDN185,RZN18#,VZN185 |
1 | ||
| 90256-04001 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33634 - PROTECTOR, WIRE | ||||
| 33634-35040 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33634-35040 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-35050 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33635-35050 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33668 - PIN, CONTROL LEVER LOCK | ||||
| 33668-35010 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33668-35010 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35210 |
VZN185 |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
KDN185,KZN185,RZN18#,VZN18#..4FC |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-35010 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33866-35010 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
KDN185,RZN18#,VZN185 |
1 | ||
| 33886-22010 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35080 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35906-35080 |
KDN185,RZN18#,VZN185 |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-35181 |
KDN185,RZN18#,VZN185 |
1 | ||
| 35921-35181 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35921-35180 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-35140 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35971-35140 |
KDN185,RZN18#,VZN185 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-35141 |
KDN185,RZN18#,VZN185 |
1 | ||
| 35974-35140 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35974-35141 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35131 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35975-35130 |
KZN185,RZN185,VZN185..4FC |
1 | ||
| 35975-35131 |
KDN185,RZN18#,VZN185 |
1 | ||
| 36331B - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-35010 |
KDN185,KZN185,RZN185,VZN185..4FC |
1 | ||
| Common parts | ||||
| 90119-06818 | ||||
| 90179-08146 | ||||
| 90189-05045 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
