VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

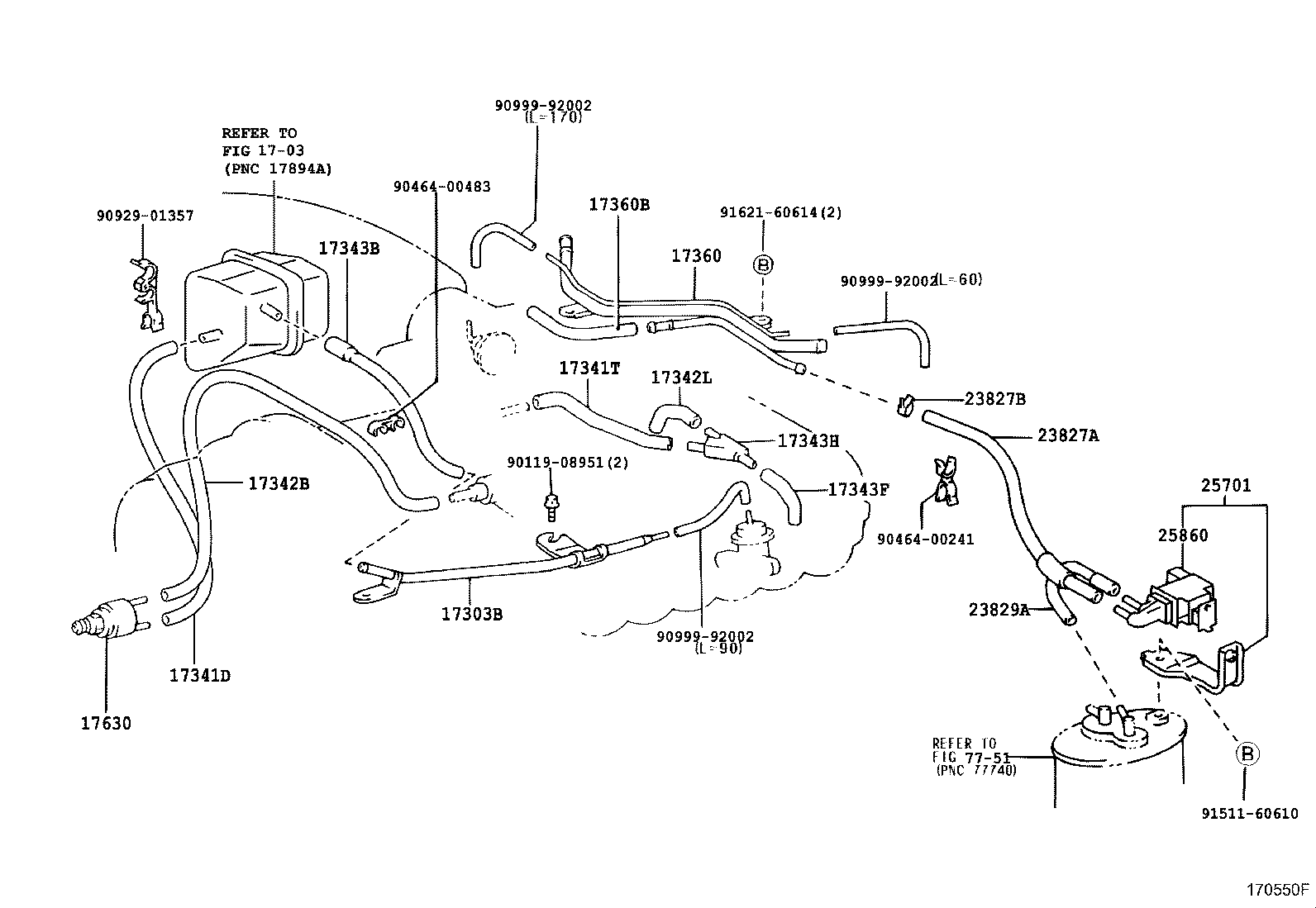

(9511-9807)5VZFE

Click highlighted areas on diagram

diagram 1703 17303B 17341D 17341T 17342B 17342L 17343B 17343F 17343H 17360 17360B 17630 23827A 23827B 23829A 25701 25860 7751 9011908951 9046400241 9046400483 9092901357 9099992002 9099992002 9099992002 9151160610 9162160614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62020

5VZFE..VZN18#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-62070

5VZFE..VZN18#

 1
17341-62050

5VZFE..VZN185

 1
17341T - HOSE, AIR, NO.1
17341-62060

5VZFE..VZN18#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-62090

5VZFE..VZN18#

 1
17342-62070

5VZFE..VZN185

 1
17342L - HOSE, AIR, NO.2
17342-62080

5VZFE..VZN18#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62110

5VZFE..VZN18#

 1
17343-62090

5VZFE..VZN185

 1
17343F - HOSE, AIR, NO.3
17343-62080

5VZFE..VZN18#

 1
17343H - WAY, 3(FOR AIR HOSE)
90904-13015

5VZFE..VZN18#

 1
17360 - TUBE ASSY, AIR
17360-62011

5VZFE..VZN185

 1
17360-62010

5VZFE..VZN18#

 1
17360B - HOSE(FOR AIR PIPE)
90445-12284

5VZFE..VZN18#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

5VZFE..VZN18#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
90445-12292

5VZFE..VZN18#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

5VZFE..VZN18#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-62030

5VZFE..VZN18#

 1
25701 - VALVE SET, EMISSION CONTROL
25701-62030

5VZFE..VZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75100

5VZFE..VZN18#

 1
Common parts
90119-08951
90464-00241
90464-00483
90929-01357
90999-92002
91511-60610
91621-60614
Linked diagrams
1703
7751

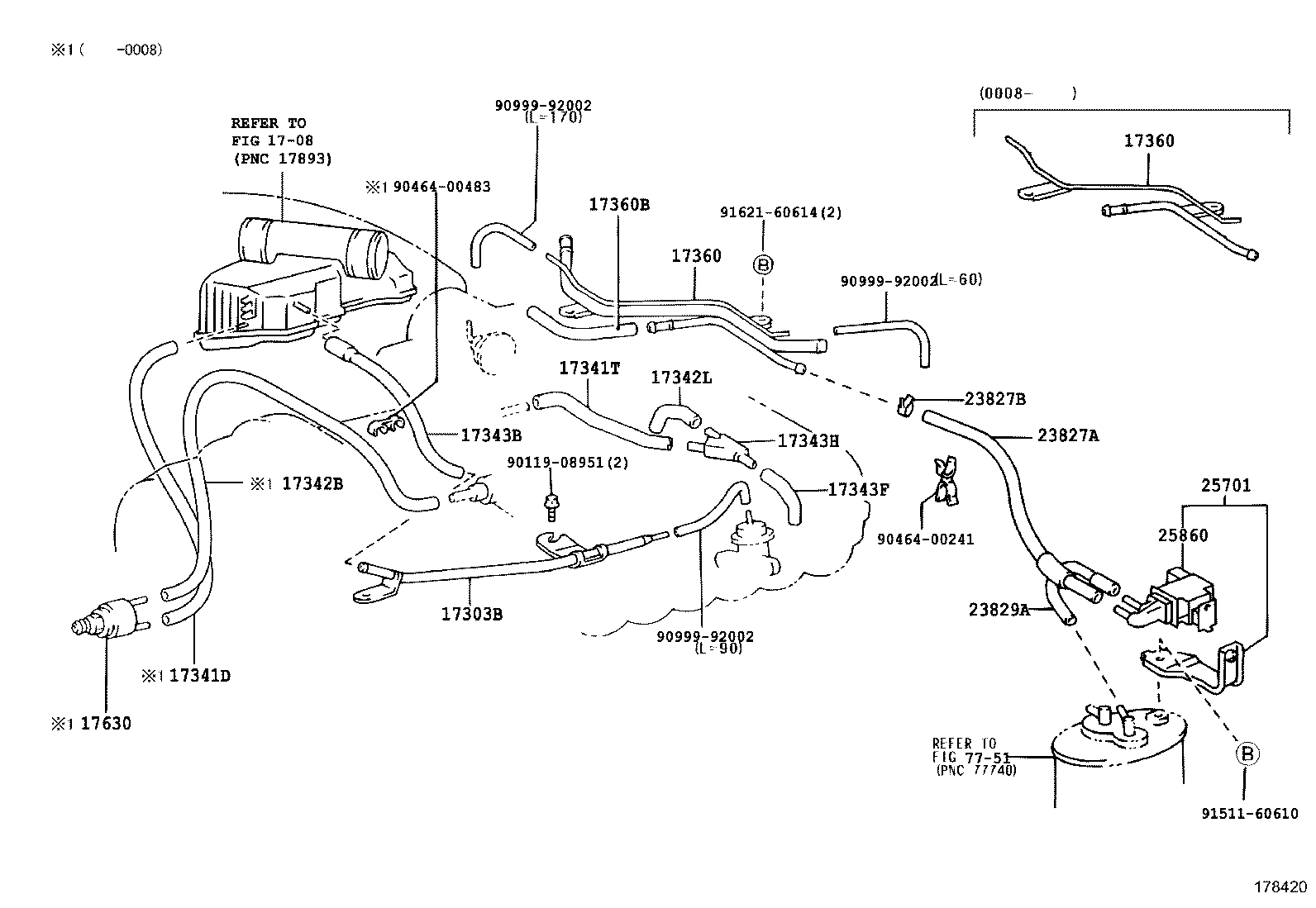

(9807- )5VZFE

Click highlighted areas on diagram

diagram 1708 17303B 17341D 17341T 17342B 17342L 17343B 17343F 17343H 17360 17360 17360B 17630 23827A 23827B 23829A 25701 25860 7751 9011908951 9046400241 9046400483 9099992002 9099992002 9099992002 9151160610 9162160614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62020

5VZFE..VZN18#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-62070

5VZFE..VZN18#

 1
17341-62050

5VZFE..VZN185

 1
17341T - HOSE, AIR, NO.1
17341-62060

5VZFE..VZN18#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-62090

5VZFE..VZN18#

 1
17342-62070

5VZFE..VZN185

 1
17342L - HOSE, AIR, NO.2
17342-62080

5VZFE..VZN18#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62110

5VZFE..VZN18#

 1
17343-62090

5VZFE..VZN185

 1
17343F - HOSE, AIR, NO.3
17343-62080

5VZFE..VZN18#

 1
17343H - WAY, 3(FOR AIR HOSE)
90904-13015

5VZFE..VZN18#

 1
17360 - TUBE ASSY, AIR
17360-62011

5VZFE..VZN185

 1
17360-62010

5VZFE..VZN18#

 1
17360 - TUBE ASSY, AIR
17360-62011

5VZFE..VZN185

 1
17360-62010

5VZFE..VZN18#

 1
17360B - HOSE(FOR AIR PIPE)
90445-12284

5VZFE..VZN18#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

5VZFE..VZN18#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
90445-12292

5VZFE..VZN18#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

5VZFE..VZN18#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-62030

5VZFE..VZN18#

 1
25701 - VALVE SET, EMISSION CONTROL
25701-62030

5VZFE..VZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75100

5VZFE..VZN18#

 1
Common parts
90119-08951
90464-00241
90464-00483
90999-92002
91511-60610
91621-60614
Linked diagrams
1708
7751
