VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

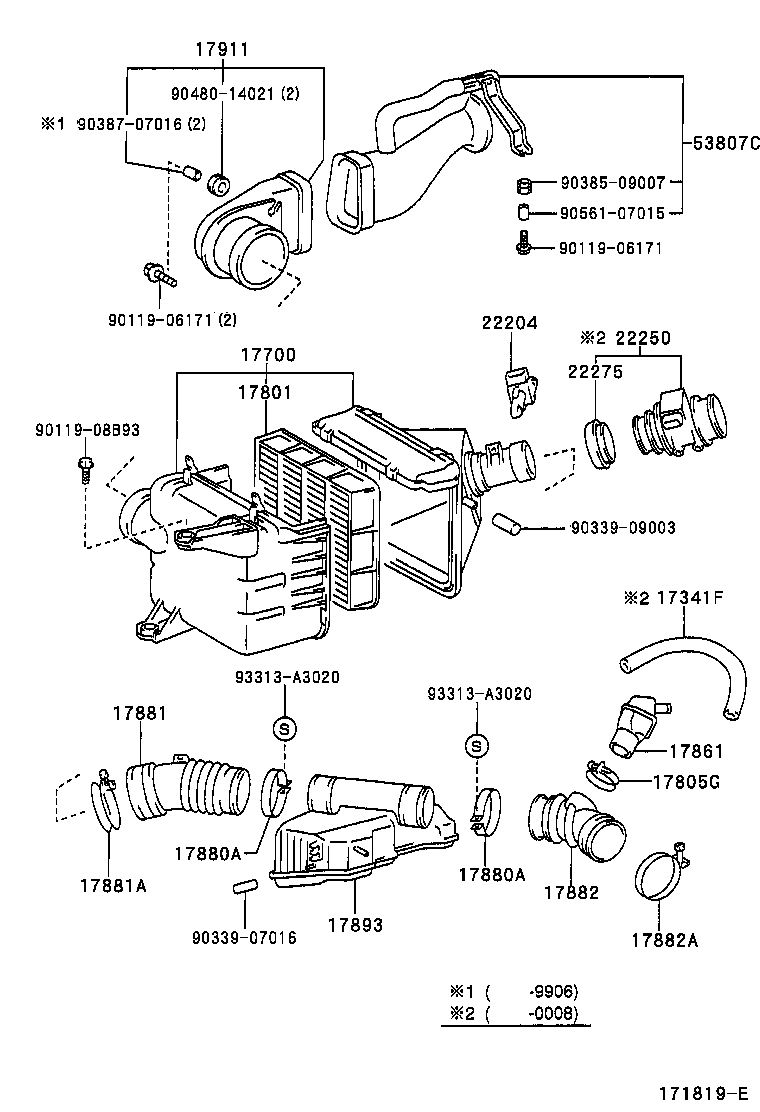

(9807- )5VZFE

Click highlighted areas on diagram

diagram 17341F 17700 17801 17805G 17861 17880A 17880A 17881 17881A 17882 17882A 17893 17911 22204 22250 22275 53807C 9011906171 9011906171 9011908B93 9033907016 9033909003 9038509007 9038707016 9048014021 9056107015 93313A3020 93313A3020
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
90445-18148

5VZFE..VZN185

 1
12261-62050

5VZFE..VZN18#

 1
17700 - CLEANER ASSY, AIR
17700-62050

5VZFE..VZN18#

 1
17700-62100

5VZFE..VZN185

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

5VZFE..VZN18#

 1
17805G - CLAMP, HOSE(FOR AIR CONNECTOR)
96111-10500

5VZFE..VZN185

 1
17861 - CONNECTOR, INTAKE AIR
17659-62010

5VZFE..VZN185

 1
17880A - CLAMP, HOSE
90460-73002

5VZFE..VZN18#

 2
17880A - CLAMP, HOSE
90460-73002

5VZFE..VZN18#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-62150

5VZFE..VZN18#

 1
17881-62090

5VZFE..VZN185

 1
17881-62091

5VZFE..VZN185

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

5VZFE..VZN18#

 1
96111-10900

5VZFE..VZN185

NO.2

 1
96111-10830

5VZFE..VZN185

NO.1

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-62010

5VZFE..VZN18#

 1
17882-62020

5VZFE..VZN185

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5VZFE..VZN18#

 1
17893 - RESONATOR, INTAKE AIR
17893-62060

5VZFE..VZN18#

 1
17893-62040

5VZFE..VZN185

 1
17893-62070

5VZFE..VZN18#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35010

5VZFE..VZN18#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

5VZFE..VZN185

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-20020

5VZFE..VZN18#

 1
22275 - GASKET, AIR FLOW METER
22275-20010

5VZFE..VZN18#

 1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35070

VZN18#

 1
53807-35040

VZN185

 1
Common parts
90119-06171
90119-08B93
90339-07016
90339-09003
90385-09007
90387-07016
90480-14021
90561-07015
93313-A3020

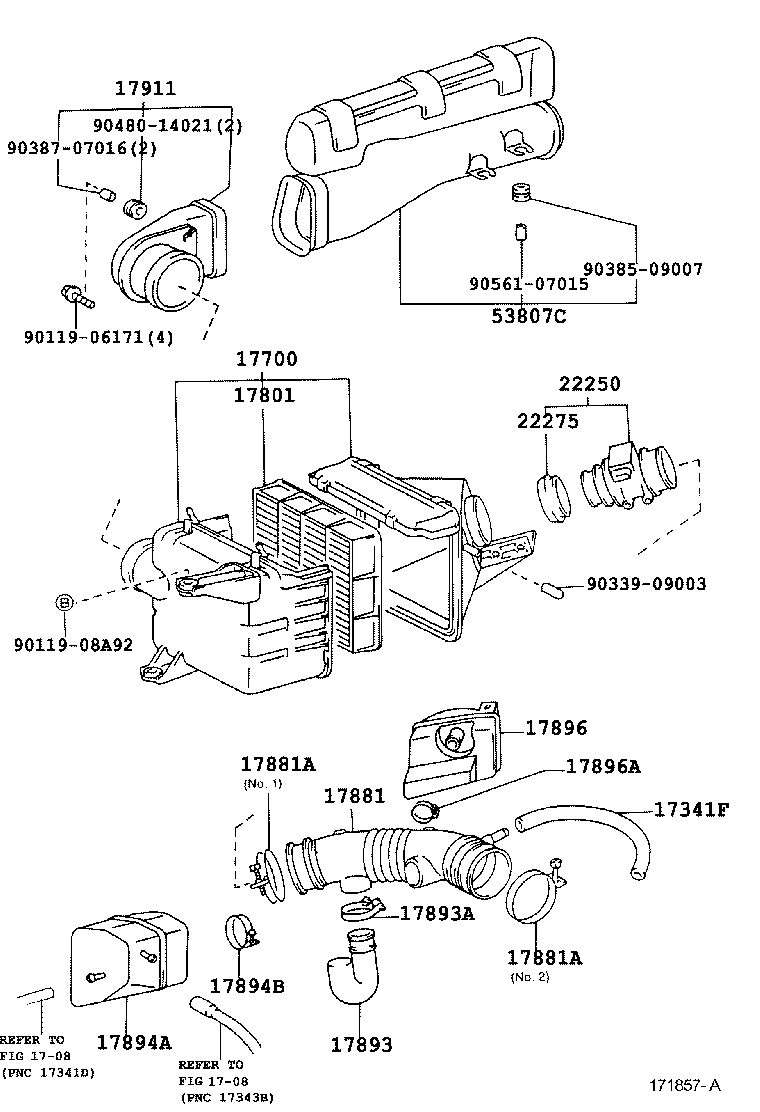

(9511-9807)5VZFE

Click highlighted areas on diagram

diagram 1708 1708 17341F 17700 17801 17881 17881A 17881A 17893 17893A 17894A 17894B 17896 17896A 17911 22250 22275 53807C 9011906171 9011908A92 9033909003 9038509007 9038707016 9048014021 9056107015
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
90445-18148

5VZFE..VZN185

 1
12261-62050

5VZFE..VZN18#

 1
17700 - CLEANER ASSY, AIR
17700-62050

5VZFE..VZN18#

 1
17700-62100

5VZFE..VZN185

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

5VZFE..VZN18#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-62150

5VZFE..VZN18#

 1
17881-62090

5VZFE..VZN185

 1
17881-62091

5VZFE..VZN185

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

5VZFE..VZN18#

 1
96111-10900

5VZFE..VZN185

NO.2

 1
96111-10830

5VZFE..VZN185

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

5VZFE..VZN18#

 1
96111-10900

5VZFE..VZN185

NO.2

 1
96111-10830

5VZFE..VZN185

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-62060

5VZFE..VZN18#

 1
17893-62040

5VZFE..VZN185

 1
17893-62070

5VZFE..VZN18#

 1
17893A - CLAMP, HOSE
96111-10530

5VZFE..VZN185

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-62020

5VZFE..VZN185

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10710

5VZFE..VZN185

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-62010

5VZFE..VZN185

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
96111-10330

5VZFE..VZN185

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35010

5VZFE..VZN18#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-20020

5VZFE..VZN18#

 1
22275 - GASKET, AIR FLOW METER
22275-20010

5VZFE..VZN18#

 1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35070

VZN18#

 1
53807-35040

VZN185

 1
Common parts
90119-06171
90119-08A92
90339-09003
90385-09007
90387-07016
90480-14021
90561-07015
Linked diagrams
1708
