VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )5VZFE

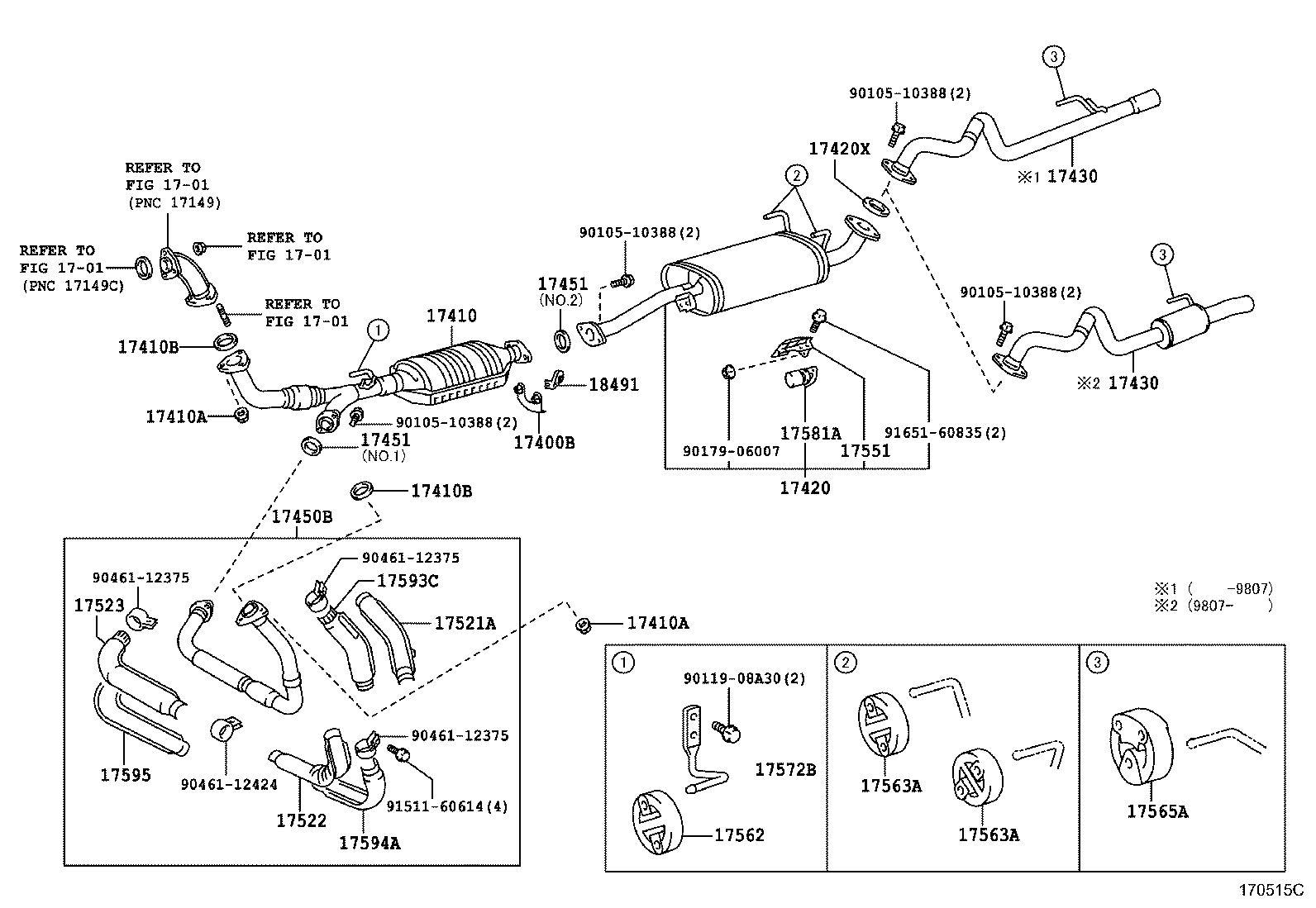

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 17400B 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17430 17450B 17451 17451 17521A 17522 17523 17551 17562 17563A 17563A 17565A 17572B 17581A 17593C 17594A 17595 18491 9010510388 9010510388 9010510388 9010510388 9011908A30 9017906007 9046112375 9046112375 9046112375 9046112424 9151160614 9165160835
Part # Description Qty Price
17400B - RETAINER, EXHAUST PIPE
18495-62010

5VZFE..VZN18#

 1
18495-62010

3RZFE,5VZFE..RZN18#,VZN185

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-62110

5VZFE..VZN185

 1
17401-62060

5VZFE..VZN185

 1
17401-62130

5VZFE..VZN18#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5VZFE..VZN18#

 6
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5VZFE..VZN18#

 6
17410B - GASKET, EXHAUST PIPE
90917-06065

5VZFE..VZN18#

 2
90917-06065

5VZFE..VZN185

 1
17410B - GASKET, EXHAUST PIPE
90917-06065

5VZFE..VZN18#

 2
90917-06065

5VZFE..VZN185

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-62210

5VZFE..VZN185

 1
17420-62270

5VZFE..VZN18#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1KDFTV,3RZFE,5VZFE..KDN185,RZN18#,VZN185

NO.2

 1
90917-06072

1K#,5VZFE..KDN185,KZN185,VZN18#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-62020

5VZFE..VZN185

 1
17405-67050

1KZTE,5VZFE..KZN185,VZN18#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-62020

5VZFE..VZN185

 1
17405-67050

1KZTE,5VZFE..KZN185,VZN18#

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-62020

5VZFE..VZN18#

 1
17451 - GASKET, EXHAUST PIPE
90917-06072

5VZFE..VZN18#

NO.2

 1
90917-06046

5VZFE..VZN18#

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06072

5VZFE..VZN18#

NO.2

 1
90917-06046

5VZFE..VZN18#

NO.1

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17505-62010

5VZFE..VZN18#

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17507-62070

5VZFE..VZN18#

 1
17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3
17509-62060

5VZFE..VZN18#

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-62010

5VZFE..VZN185

 1
17551-62010

3RZFE,5VZFE..RZN18#,VZN18#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74290

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 1
17565-74290

1KDFTV,5VZFE..KDN185,VZN185

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46010

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46010

1K#,3RZFE,5VZFE..KDN185,KZN185,RZN18#,VZN18#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3RZFE,5VZFE..RZN185,VZN185

 1
17566-67030

1K#,5VZFE..KDN185,KZN185,VZN18#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-62070

5VZFE..VZN185

 1
17572-62060

5VZFE..VZN185

 1
17572-62060

5VZFE..VZN18#

 1
17581A - DAMPER, EXHAUST PIPE
17581-46010

5VZFE..VZN18#

 1
17581-62010

5VZFE..VZN18#

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17506-62010

5VZFE..VZN18#

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17508-62010

5VZFE..VZN18#

 1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17059-62010

5VZFE..VZN18#

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-74020

3RZFE,5VZFE..RZN185,VZN185

 1
18491-28010

3RZFE,5VZFE..RZN185,VZN185

 1
Common parts
90105-10388
90119-08A30
90179-06007
90461-12375
90461-12424
91511-60614
91651-60835
Linked diagrams
1701
