VZN185W-GAPGK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)5VZFE

Click highlighted areas on diagram

diagram 12216B 12311 12315 12361 12361 12371 12381 12381 12511 1903 9011908B75 9011910777 9011910777 9011910811 9017910201 9017910201 9017912087 9017912087 9151160825 9153281025 9153281025 9162160614
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VZN18#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62030

5VZFE..VZN185

 1
12311-62070

5VZFE..VZN185

 1
12311-62060

5VZFE..VZN18#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62080

5VZFE..VZN185

 1
12315-62070

5VZFE..VZN18#

 1
12315-62040

5VZFE..VZN185

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62110

5VZFE..VZN185

 2
12361-62140

5VZFE..VZN18#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62110

5VZFE..VZN185

 2
12361-62140

5VZFE..VZN18#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62120

5VZFE..VZN185

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZN185

 2
12381-62020

5VZFE..VZN18#

右側

 1
12382-62010

5VZFE..VZN18#

左側

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZN185

 2
12381-62020

5VZFE..VZN18#

右側

 1
12382-62010

5VZFE..VZN18#

左側

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZN18#

 1
Common parts
90119-08B75
90119-10777
90119-10811
90179-10201
90179-12087
91511-60825
91532-81025
91621-60614
Linked diagrams
1903

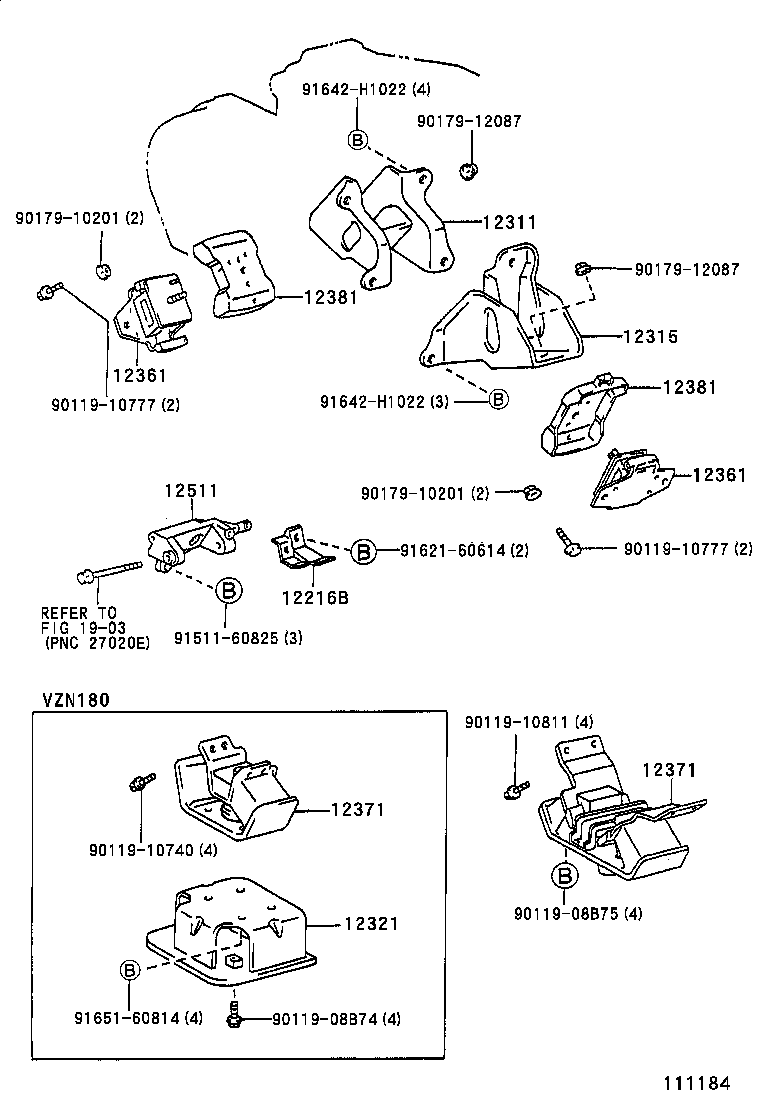

(9807- )5VZFE

Click highlighted areas on diagram

diagram 12216B 12311 12315 12321 12361 12361 12371 12371 12381 12381 12511 1903 9011908B74 9011908B75 9011910740 9011910777 9011910777 9011910811 9017910201 9017910201 9017912087 9017912087 9151160825 9162160614 91642H1022 91642H1022 9165160814
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VZN18#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62030

5VZFE..VZN185

 1
12311-62070

5VZFE..VZN185

 1
12311-62060

5VZFE..VZN18#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62080

5VZFE..VZN185

 1
12315-62070

5VZFE..VZN18#

 1
12315-62040

5VZFE..VZN185

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62110

5VZFE..VZN185

 2
12361-62140

5VZFE..VZN18#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62110

5VZFE..VZN185

 2
12361-62140

5VZFE..VZN18#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62120

5VZFE..VZN185

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62120

5VZFE..VZN185

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZN185

 2
12381-62020

5VZFE..VZN18#

右側

 1
12382-62010

5VZFE..VZN18#

左側

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZN185

 2
12381-62020

5VZFE..VZN18#

右側

 1
12382-62010

5VZFE..VZN18#

左側

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZN18#

 1
Common parts
90119-08B74
90119-08B75
90119-10740
90119-10777
90119-10811
90179-10201
90179-12087
91511-60825
91621-60614
91642-H1022
91651-60814
Linked diagrams
1903
