TRN215W-GKPXK (2005)

Toyota Hilux Surf

Production Aug 2005 - Aug 2009
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )TRN21#

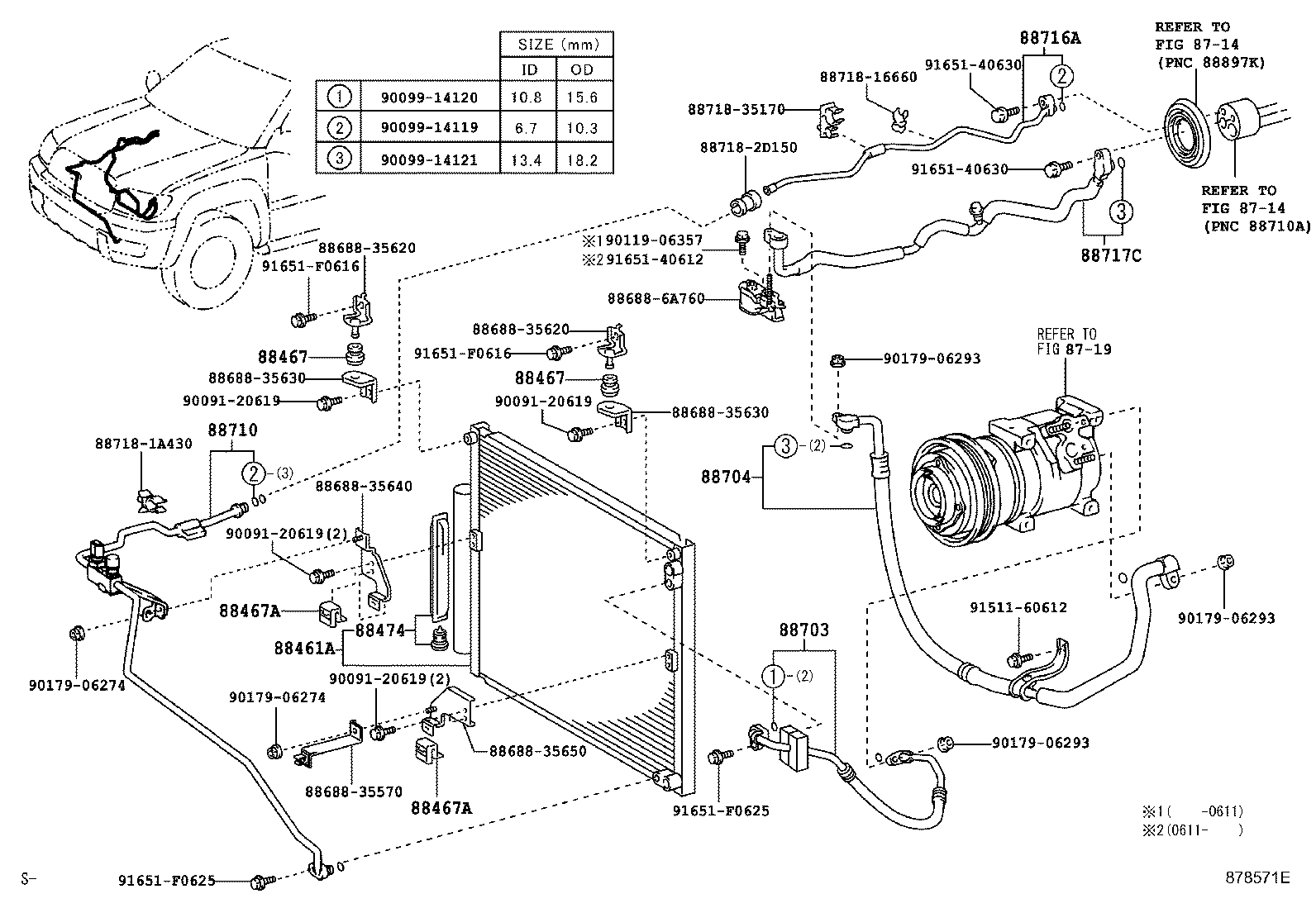

Click highlighted areas on diagram

diagram 8714 8714 8719 88461A 88467 88467 88467A 88467A 88474 8868835570 8868835620 8868835620 8868835630 8868835630 8868835640 8868835650 886886A760 88703 88704 88710 88716A 88717C 8871816660 887181A430 887182D150 8871835170 9009120619 9009120619 9009120619 9009120619 9009914119 9009914120 9009914121 9011906357 9017906274 9017906274 9017906293 9017906293 9017906293 9151160612 9165140612 9165140630 9165140630 91651F0616 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88461A - CORE, COOLER CONDENSER
88461-60091

GRN215,TRN21#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDN215,RZN21#,TRN21#,VZN21#

 2
88467-28050

GRN215,TRN21#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDN215,RZN21#,TRN21#,VZN21#

 2
88467-28050

GRN215,TRN21#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KDN215,RZN21#,TRN21#,VZN21#

 2
88467-35080

GRN215,TRN21#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KDN215,RZN21#,TRN21#,VZN21#

 2
88467-35080

GRN215,TRN21#

 2
88474 - DRYER, COOLER
88474-17010

KDN215,RZN21#,TRN21#,VZN21#

 1
88474-17010

GRN215,TRN21#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-35040

TRN21#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-60380

TRN21#

 1
88704-35040

TRN21#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35540

GRN215,TRN21#

 1
88710-35540

KDN215,TRN21#,VZN21#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35680

TRN21#

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-35230

TRN21#

 1
88717-6B040

GRN215,TRN21#

 1
Common parts
88688-35570
88688-35620
88688-35630
88688-35640
88688-35650
88688-6A760
88718-16660
88718-1A430
88718-2D150
88718-35170
90091-20619
90099-14119
90099-14120
90099-14121
90119-06357
90179-06274
90179-06293
91511-60612
91651-40612
91651-40630
91651-F0616
91651-F0625
Linked diagrams
8714
8719
