TRN215W-GKPXK (2004)

Toyota Hilux Surf

Production Aug 2004 - Aug 2005
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)

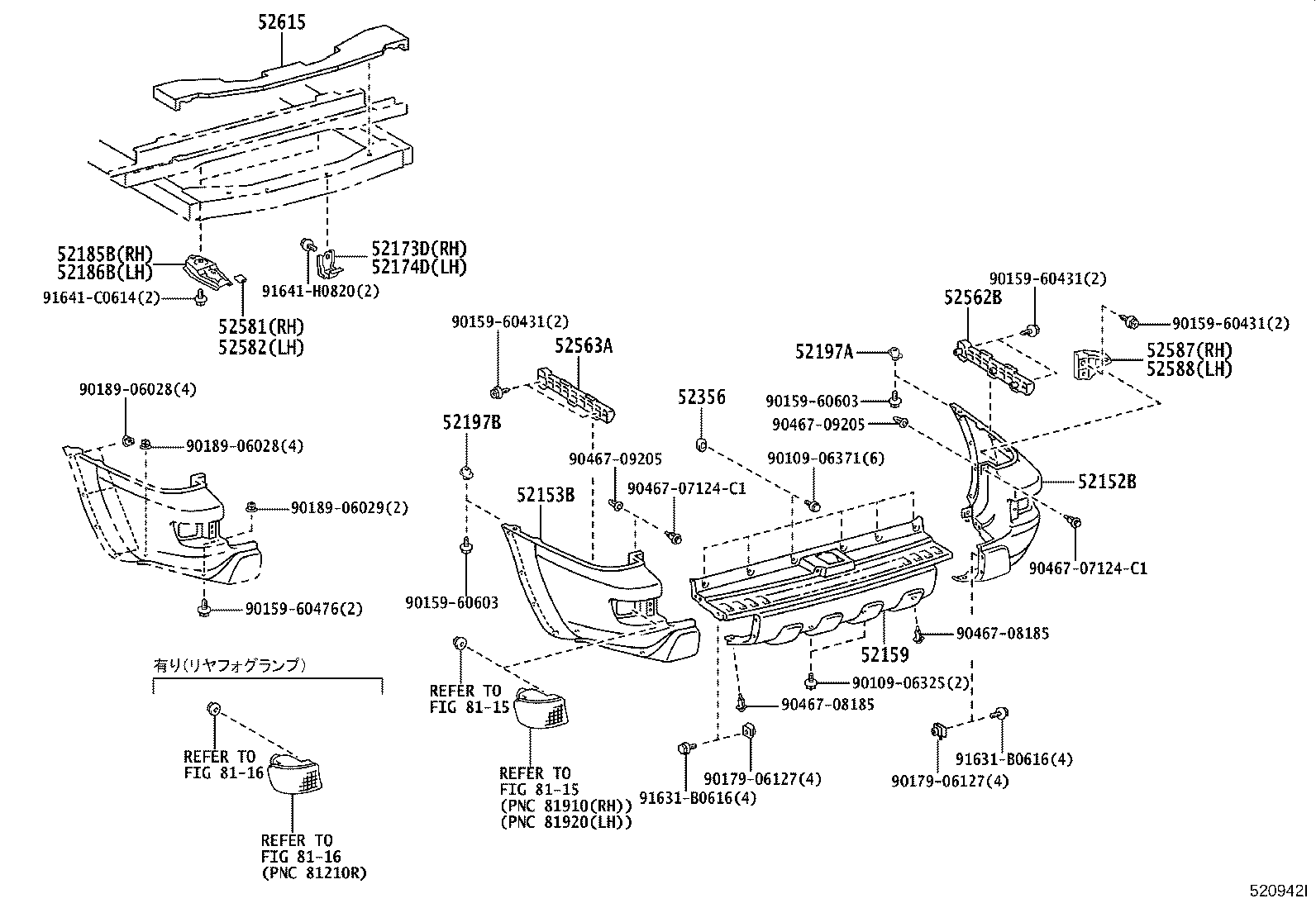

Click highlighted areas on diagram

diagram 52152B 52153B 52159 52173D 52174D 52185B 52186B 52197A 52197B 52356 52562B 52563A 52581 52582 52587 52588 52615 8115 8115 8116 8116 9010906325 9010906371 9015960431 9015960431 9015960431 9015960476 9015960603 9015960603 9017906127 9017906127 9018906028 9018906028 9018906029 9046707124C1 9046707124C1 9046708185 9046708185 9046709205 9046709205 91631B0616 91631B0616 91641C0614 91641H0820
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-35130A0

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
52152-35130C0

KDN215,RZN21#,TRN21#,VZN21#

BLACK,202

 1
52152-35130B1

KDN215,RZN21#,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
52152-35120

RZN21#,TRN21#..SSRX

ｱﾒﾘｶﾝﾊﾞｰｼﾞｮﾝ

 1
52152-35130F0

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
52152-35130B0

KDN215,RZN21#,TRN21#,VZN21#

SILVER ME.,1D4

 1
52152-35130J0

KDN215,RZN21#,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
52152-35130J1

KDN215,RZN21#,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
52152-35130D0

TRN215,VZN215..SSRX

DK. RED M.M.,3Q3

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-35130C0

KDN215,RZN21#,TRN21#,VZN21#

BLACK,202

 1
52153-35130B0

KDN215,RZN21#,TRN21#,VZN21#

SILVER ME.,1D4

 1
52153-35130F0

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
52153-35120

RZN21#,TRN21#..SSRX

ｱﾒﾘｶﾝﾊﾞｰｼﾞｮﾝ

 1
52153-35130B1

KDN215,RZN21#,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
52153-35130J0

KDN215,RZN21#,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
52153-35130J1

KDN215,RZN21#,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
52153-35130A0

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
52153-35130D0

TRN215,VZN215..SSRX

DK. RED M.M.,3Q3

 1
52159 - COVER, REAR BUMPER
52159-35080

RZN21#,TRN21#..SSRX

塗装不要,ｱﾒﾘｶﾝﾊﾞｰｼﾞｮﾝ

 1
52159-35090A0

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
52159-35090F0

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
52159-35090D0

TRN215,VZN215..SSRX

DK. RED M.M.,3Q3

 1
52159-35090B1

KDN215,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
52159-35090B0

KDN215,TRN21#,VZN21#..SSRX

SILVER ME.,8R3

 1
52159-35090C0

KDN215,TRN21#,VZN21#

BLACK,202

 1
52159-35090J1

KDN215,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
52159-35090B0

KDN215,TRN21#,VZN21#

SILVER ME.,1D4

 1
52159-35090B0

KDN215,TRN21#,VZN21#..SSRX

SILVER ME.,070 ,1E9 ,202 ,8Q0

 1
52159-35090J0

KDN215,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
52173D - REINFORCEMENT, REAR BUMPER BAR, RH
52173-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
52174D - REINFORCEMENT, REAR BUMPER BAR, LH
52174-35050

KDN215,RZN21#,TRN21#,VZN21#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60090

KDN215,RZN21#,TRN21#,VZN21#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-60090

KDN215,RZN21#,TRN21#,VZN21#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
52356 - CUSHION, REAR BUMPER STEP
52356-60050

KDN215,RZN21#,TRN21#,VZN21#

 6
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
52581 - PROTECTOR, REAR BUMPER, RH
52581-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
52582 - PROTECTOR, REAR BUMPER, LH
52581-35020

KDN215,RZN21#,TRN21#,VZN21#

 1
52587 - RETAINER, REAR BUMPER END, RH
52587-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
52588 - RETAINER, REAR BUMPER END, LH
52588-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
Common parts
90109-06325
90109-06371
90159-60431
90159-60476
90159-60603
90179-06127
90189-06028
90189-06029
90467-07124C1
90467-08185
90467-09205
91631-B0616
91641-C0614
91641-H0820
Linked diagrams
8115
8116
