TRN215W-GKPXK (2004)

Toyota Hilux Surf

Production Aug 2004 - Aug 2005
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )2TRFE

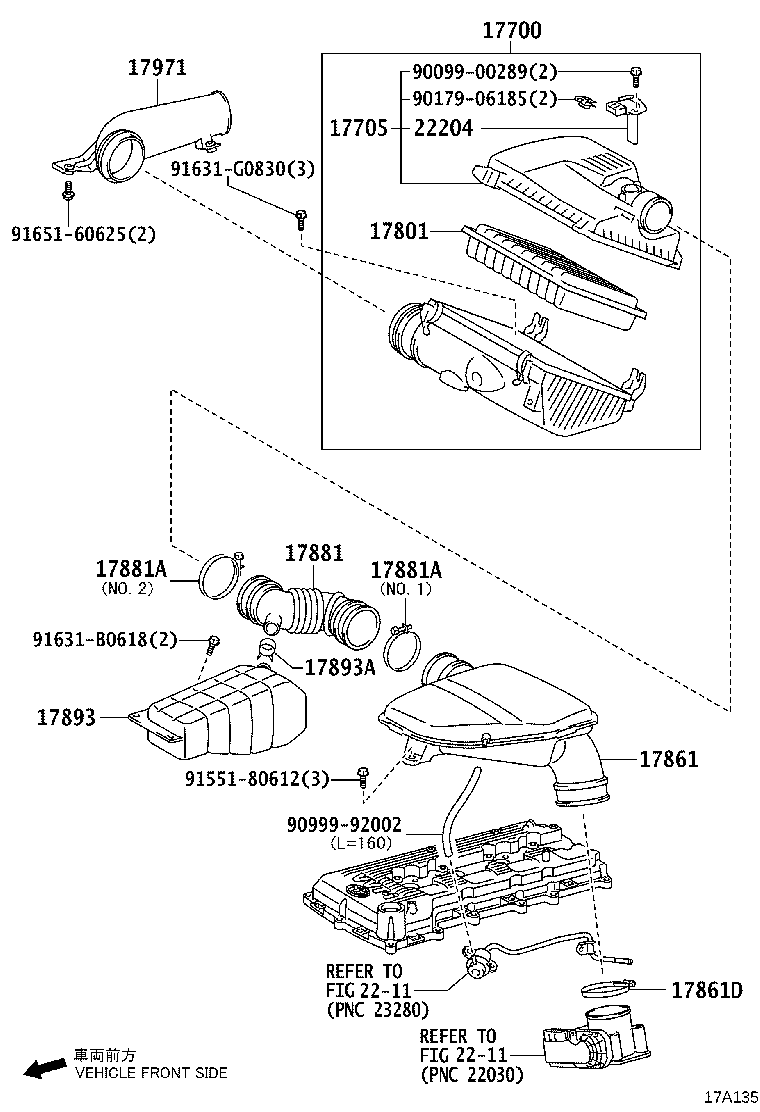

Click highlighted areas on diagram

diagram 17700 17705 17801 17861 17861D 17881 17881A 17881A 17893 17893A 17971 2211 2211 22204 9009900289 9017906185 9099992002 9155180612 91631B0618 91631G0830 9165160625
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-75401

2TRFE..TRN21#

 1
17700-75402

2TRFE..TRN21#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75281

2TRFE..TRN21#

 1
17705-75281

2TRFE..TRN21#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50040

2TRFE..TRN21#

 1
17801-50040

2TRFE..TRN21#

 1
17861 - CONNECTOR, INTAKE AIR
17861-75120

2TRFE..TRN21#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-30800

2TRFE..TRN21#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-75211

2TRFE..TRN21#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-30800

2TRFE..TRN21#

NO.1

 1
96111-30900

2TRFE..TRN21#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-30800

2TRFE..TRN21#

NO.1

 1
96111-30900

2TRFE..TRN21#

NO.2

 1
17893 - RESONATOR, INTAKE AIR
17893-75090

2TRFE..TRN21#

 1
17893A - CLAMP, HOSE
96134-52600

2TRFE..TRN21#

 1
17971 - INLET, COOL AIR, NO.1
17971-75011

2TRFE..TRN21#

 1
17971-75012

2TRFE..TRN21#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

2TRFE..TRN21#

 1
Common parts
90099-00289
90179-06185
90999-92002
91551-80612
91631-B0618
91631-G0830
91651-60625
Linked diagrams
2211
