TRN215W-GKPGK (2005)
Toyota Hilux Surf

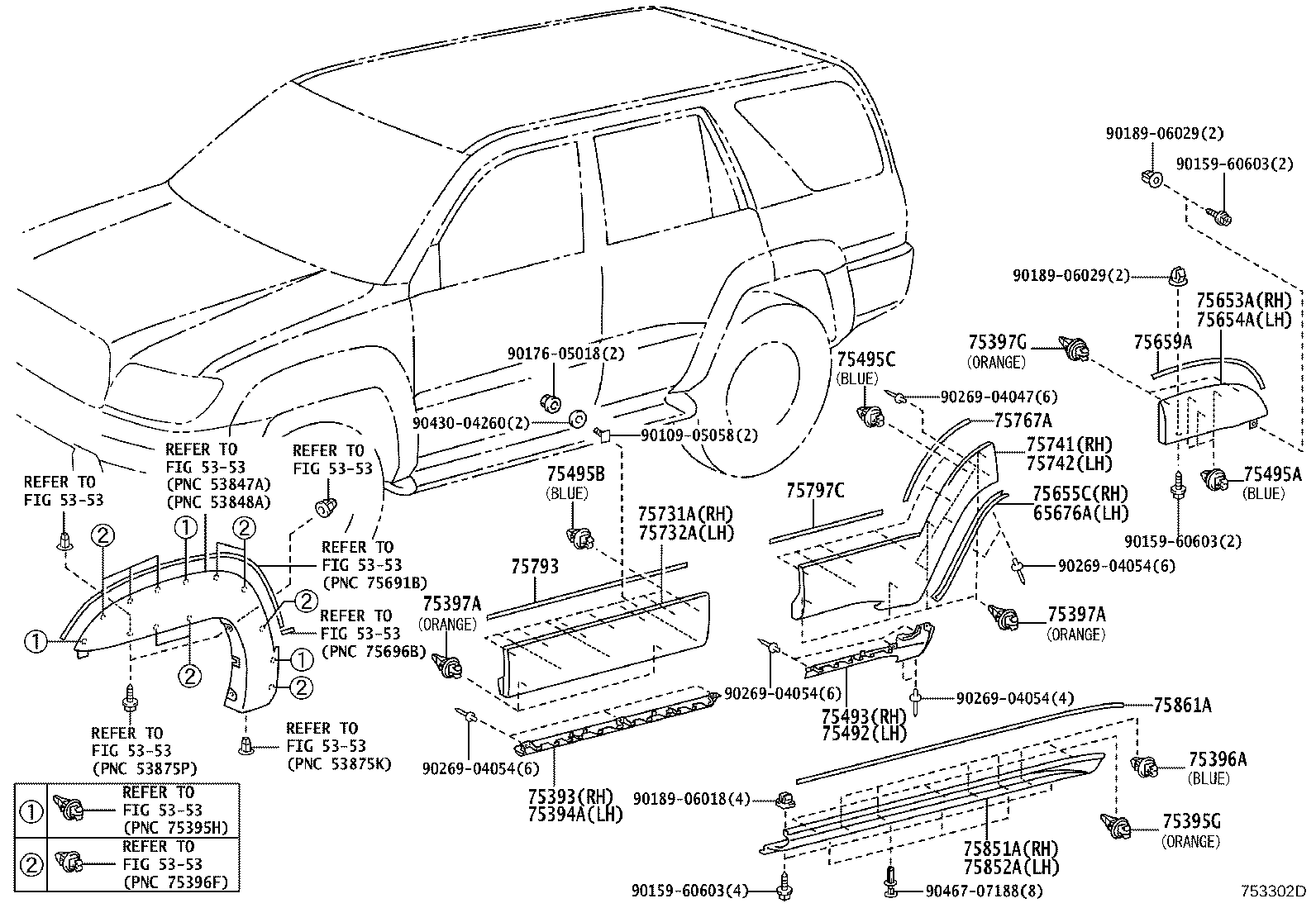

ILLUST NO. 2 OF 2(0508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65676A - SEAL, WHEEL HOUSE, FRONT LH | ||||
| 65676-35020 |
GRN215,TRN21# |
1 | ||
| 65676-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75393 - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75393-35070 |
GRN215,TRN21# |
1 | ||
| 75394A - RETAINER, OUTSIDE MOULDING, NO.3 | ||||
| 75394-35010 |
GRN215,TRN21# |
1 | ||
| 75395G - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-35070 |
GRN215,TRN21# |
6 | ||
| 75395-35070 |
KDN215,TRN21#,VZN21# |
6 | ||
| 75396A - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-35020 |
GRN215,TRN21# |
10 | ||
| 75396-35020 |
KDN215,TRN21#,VZN21# |
10 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
GRN215,TRN21# |
12 | ||
| 75397-35010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
GRN215,TRN21# |
12 | ||
| 75397-35010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 75397G - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
KDN215,TRN21#,VZN21# |
4 | ||
| 75397-35010 |
GRN215,TRN21# |
4 | ||
| 75492 - RETAINER, OUTSIDE MOULDING, NO.5 | ||||
| 75492-35010 |
GRN215,TRN21# |
1 | ||
| 75493 - RETAINER, OUTSIDE MOULDING, NO.4 | ||||
| 75493-35020 |
GRN215,TRN21# |
1 | ||
| 75495A - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GRN215,TRN21# |
6 | ||
| 75495-35010 |
KDN215,TRN21#,VZN21# |
6 | ||
| 75495B - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GRN215,TRN21# |
18 | ||
| 75495-35010 |
KDN215,TRN21#,VZN21# |
16 | ||
| 75495C - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GRN215,TRN21# |
12 | ||
| 75653A - MOULDING, QUARTER, OUTSIDE REAR RH | ||||
| 75653-35080B0 |
KDN215,RZN21#,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75653-35080B1 |
KDN215,RZN21#,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75653-35080J1 |
KDN215,RZN21#,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75653-35080C0 |
KDN215,RZN21#,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75653-35080J0 |
KDN215,RZN21#,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75653-35100A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75653-35100J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75653-35080A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75653-35100B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75653-35100C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75653-35080F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75653-35100B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9,ﾄﾘﾑ=FG**､FH** |
1 | ||
| 75653-35100E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75653-35100J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75654A - MOULDING, QUARTER, OUTSIDE REAR LH | ||||
| 75654-35080B0 |
KDN215,RZN21#,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75654-35080A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75654-35080B1 |
KDN215,RZN21#,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75654-35080J1 |
KDN215,RZN21#,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75654-35080J0 |
KDN215,RZN21#,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75654-35080F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75654-35080C0 |
KDN215,RZN21#,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75654-35100J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75654-35100A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75654-35100C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75654-35100B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75654-35100E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75654-35100B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9,ﾄﾘﾑ=FG**､FH** |
1 | ||
| 75654-35100J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75655C - SEAL, WHEEL HOUSE, FRONT RH | ||||
| 75655-35020 |
GRN215,TRN21# |
1 | ||
| 75655-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 75659A - PAD, QUARTER PANEL MOULDING, NO.1 | ||||
| 75659-35100 |
GRN215,TRN21# |
2 | ||
| 75659-35060 |
KDN215,TRN21#,VZN21# |
2 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-35110A0 |
KDN215,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75731-35110F0 |
KDN215,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75731-35130J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75731-35110B1 |
KDN215,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75731-35110J0 |
KDN215,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75731-35110C0 |
KDN215,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75731-35130B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75731-35110B0 |
KDN215,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75731-35130E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75731-35130A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75731-35110J1 |
KDN215,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75731-35130J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75731-35130C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75731-35130B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-35110B1 |
KDN215,RZN21#,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75732-35110C0 |
KDN215,RZN21#,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75732-35110F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75732-35110B0 |
KDN215,RZN21#,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75732-35130A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75732-35110J1 |
KDN215,RZN21#,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75732-35110A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75732-35130B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75732-35130B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75732-35130J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75732-35110J0 |
KDN215,RZN21#,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75732-35130E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75732-35130J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75732-35130C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-35110B0 |
KDN215,RZN21#,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75741-35110A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75741-35110B1 |
KDN215,RZN21#,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75741-35110F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75741-35110J1 |
KDN215,RZN21#,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75741-35110J0 |
KDN215,RZN21#,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75741-35130B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9,ﾄﾘﾑ=FG**､FH** |
1 | ||
| 75741-35130J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75741-35130B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75741-35110C0 |
KDN215,RZN21#,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75741-35130A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75741-35130C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75741-35130J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75741-35130E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-35110B0 |
KDN215,RZN21#,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75742-35110F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75742-35110J1 |
KDN215,RZN21#,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75742-35110B1 |
KDN215,RZN21#,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75742-35110A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75742-35130J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 75742-35110J0 |
KDN215,RZN21#,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75742-35130B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 75742-35110C0 |
KDN215,RZN21#,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75742-35130E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 75742-35130A1 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 75742-35130J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 75742-35130B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9,ﾄﾘﾑ=FG**､FH** |
1 | ||
| 75742-35130C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 75767A - PAD, REAR DOOR MOULDING, NO.1 | ||||
| 75767-35080 |
GRN215,TRN21# |
2 | ||
| 75659-35060 |
KDN215,TRN21#,VZN21# |
2 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-35030B0 |
GRN215,TRN215..SSRG GRAY,1D4 ,4S2 ,8R6 |
2 | ||
| 75793-35020 |
KDN215,TRN21#,VZN21# |
8 | ||
| 75793-35050A0 |
GRN215,TRN21# WHITE,070 |
2 | ||
| 75793-35030C0 |
GRN215,TRN21# BLACK,1E9 ,202 ,8S6,ﾄﾘﾑ=FG**､FH** |
2 | ||
| 75797C - PAD, REAR DOOR OUTSIDE MOULDING, UPPER | ||||
| 75797-35030B0 |
GRN215,TRN215..SSRG GRAY,1D4 ,4S2 ,8R6 |
2 | ||
| 75797-35030C0 |
GRN215,TRN21# BLACK,1E9 ,202 ,8S6,ﾄﾘﾑ=FG**､FH** |
2 | ||
| 75797-35020 |
KDN215,TRN21#,VZN21# |
2 | ||
| 75797-35040A0 |
GRN215,TRN21# WHITE,070 |
2 | ||
| 75851A - MOULDING, ROCKER PANEL, FRONT RH | ||||
| 75851-35060C0 |
KDN215,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75851-35060B0 |
KDN215,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75851-35080 |
GRN215,TRN21# |
1 | ||
| 75851-35060J1 |
KDN215,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75851-35060B1 |
KDN215,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75851-35060A0 |
KDN215,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75851-35060J0 |
KDN215,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75851-35060F0 |
KDN215,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75852A - MOULDING, ROCKER PANEL, FRONT LH | ||||
| 75852-35060B0 |
KDN215,TRN21#,VZN21# SILVER ME.,1D4 |
1 | ||
| 75852-35060B1 |
KDN215,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 75852-35060A0 |
KDN215,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 75852-35060C0 |
KDN215,TRN21#,VZN21# BLACK,202 |
1 | ||
| 75852-35060F0 |
KDN215,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 75852-35060J1 |
KDN215,TRN21#,VZN21# GRAYISH BLUE ME.,8R3 |
1 | ||
| 75852-35060J0 |
KDN215,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 75852-35080 |
GRN215,TRN21# |
1 | ||
| 75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-35050 |
KDN215,TRN21#,VZN21# |
2 | ||
| 75861-35060 |
GRN215,TRN21# |
2 | ||
| Common parts | ||||
| 90109-05058 | ||||
| 90159-60603 | ||||
| 90176-05018 | ||||
| 90189-06018 | ||||
| 90189-06029 | ||||
| 90269-04047 | ||||
| 90269-04054 | ||||
| 90430-04260 | ||||
| 90467-07188 | ||||
| Linked diagrams | ||||
| 5353 | ||||
