TRN215W-GKPGK (2005)
Toyota Hilux Surf
(0508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-35090A0 |
KDN215,RZN21#,TRN21#,VZN21# WHITE PEARL CS.,070 |
1 | ||
| 52159-35090F0 |
KDN215,RZN21#,TRN21#,VZN21# CHAMPAGNE M.M.,587 |
1 | ||
| 52159-35090B1 |
KDN215,TRN21#,VZN21# DK.GRAY M.M.,1E9 |
1 | ||
| 52159-35140A0 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 52159-35140E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 52159-35090C0 |
KDN215,TRN21#,VZN21# BLACK,202 |
1 | ||
| 52159-35140J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 52159-35140B0 |
GRN215,TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 52159-35141B0 |
GRN215;TRN215..SSRG SILVER ME.,1D4 |
1 | ||
| 52159-35140B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9 |
1 | ||
| 52159-35140C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 52159-35090J0 |
KDN215,TRN21#,VZN21# DK.BLUE MC.,8Q0 |
1 | ||
| 52159-35141A0 |
GRN215,TRN21# WHITE PEARL CS.,070 |
1 | ||
| 52159-35141C0 |
GRN215,TRN21# BLACK,202 |
1 | ||
| 52159-35141J1 |
GRN215,TRN21# DK.BLUE MC.,8S6 |
1 | ||
| 52159-35140J0 |
GRN215,TRN21# LT.BLUE ME.,8R6 |
1 | ||
| 52159-35141B1 |
GRN215,TRN21# DK.GRAY M.M.,1E9 |
1 | ||
| 52159-35141E0 |
GRN215,TRN21# BRONZE M.M.,4S2 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-35050 |
GRN215,TRN21# |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-35030 |
GRN215,TRN21# |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52173-35060 |
GRN215,TRN21# |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52174-35060 |
GRN215,TRN21# |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-60090 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52185-60090 |
GRN215,TRN21# |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-60090 |
GRN215,TRN21# |
1 | ||
| 52185-60090 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-35020 |
GRN215,TRN21# |
1 | ||
| 52197-35020 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-35020 |
GRN215,TRN21# |
1 | ||
| 52197-35020 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-60050 |
KDN215,RZN21#,TRN21#,VZN21# |
6 | ||
| 52356-60050 |
GRN215,TRN21# |
6 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52562-35020 |
GRN215,TRN21# |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-35020 |
GRN215,TRN21# |
1 | ||
| 52563-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-35020 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52581-35020 |
GRN215,TRN21# |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52581-35020 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52581-35020 |
GRN215,TRN21# |
1 | ||
| 52587 - RETAINER, REAR BUMPER END, RH | ||||
| 52587-35020 |
GRN215,TRN21# |
1 | ||
| 52587-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52588 - RETAINER, REAR BUMPER END, LH | ||||
| 52588-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52588-35020 |
GRN215,TRN21# |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 52615-35020 |
GRN215,TRN21# |
1 | ||
| Common parts | ||||
| 52161-35020 | ||||
| 90109-06325 | ||||
| 90109-06371 | ||||
| 90159-60431 | ||||
| 90159-60476 | ||||
| 90159-60603 | ||||
| 90189-06028 | ||||
| 90467-09205 | ||||
| 91641-C0614 | ||||
| 91641-H0820 | ||||

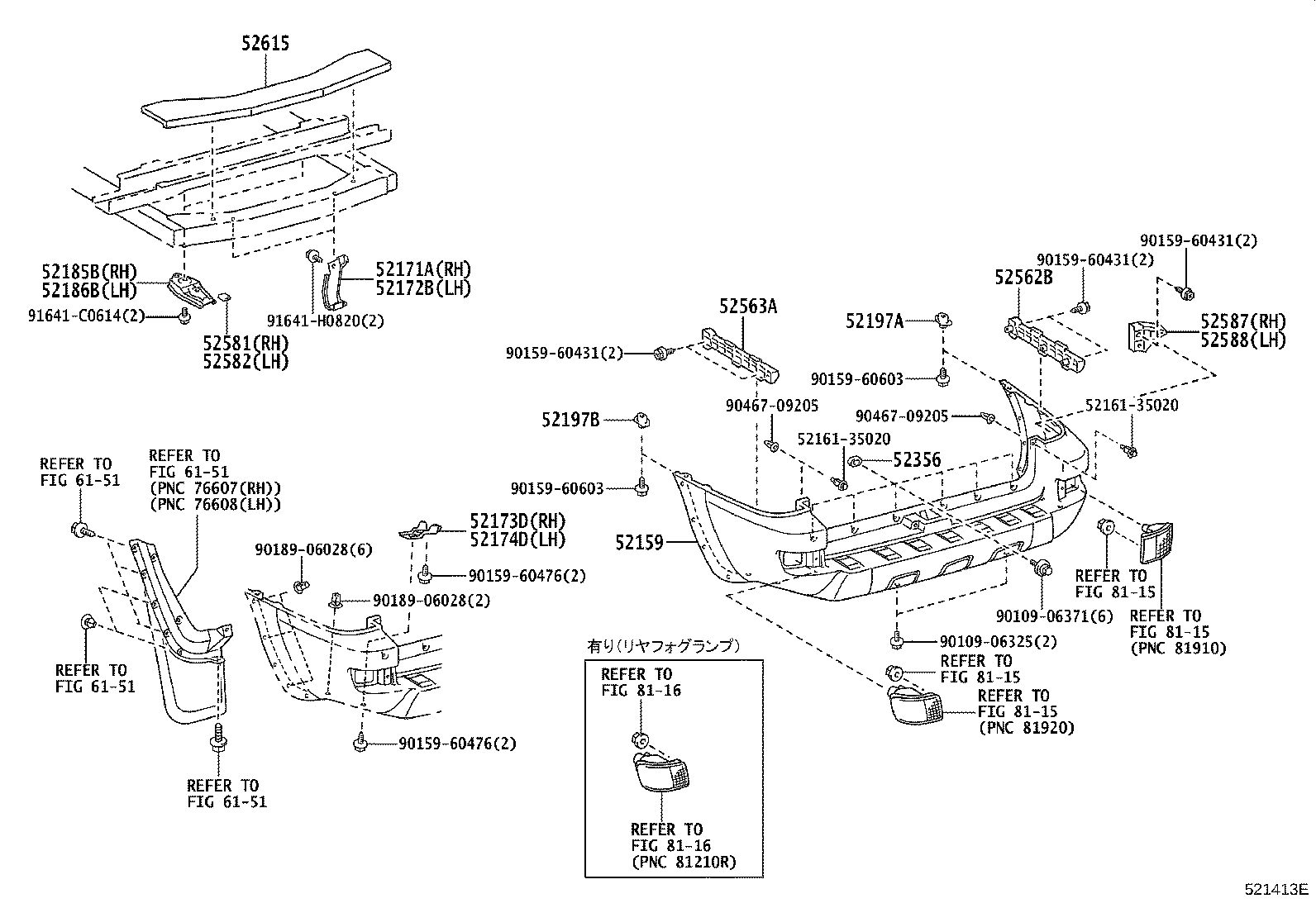

| Linked diagrams | ||||
| 6151 | ||||
| 8115 | ||||
| 8116 | ||||
