TRN215W-GKPGK (2005)

Toyota Hilux Surf

Production Aug 2005 - Aug 2009
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

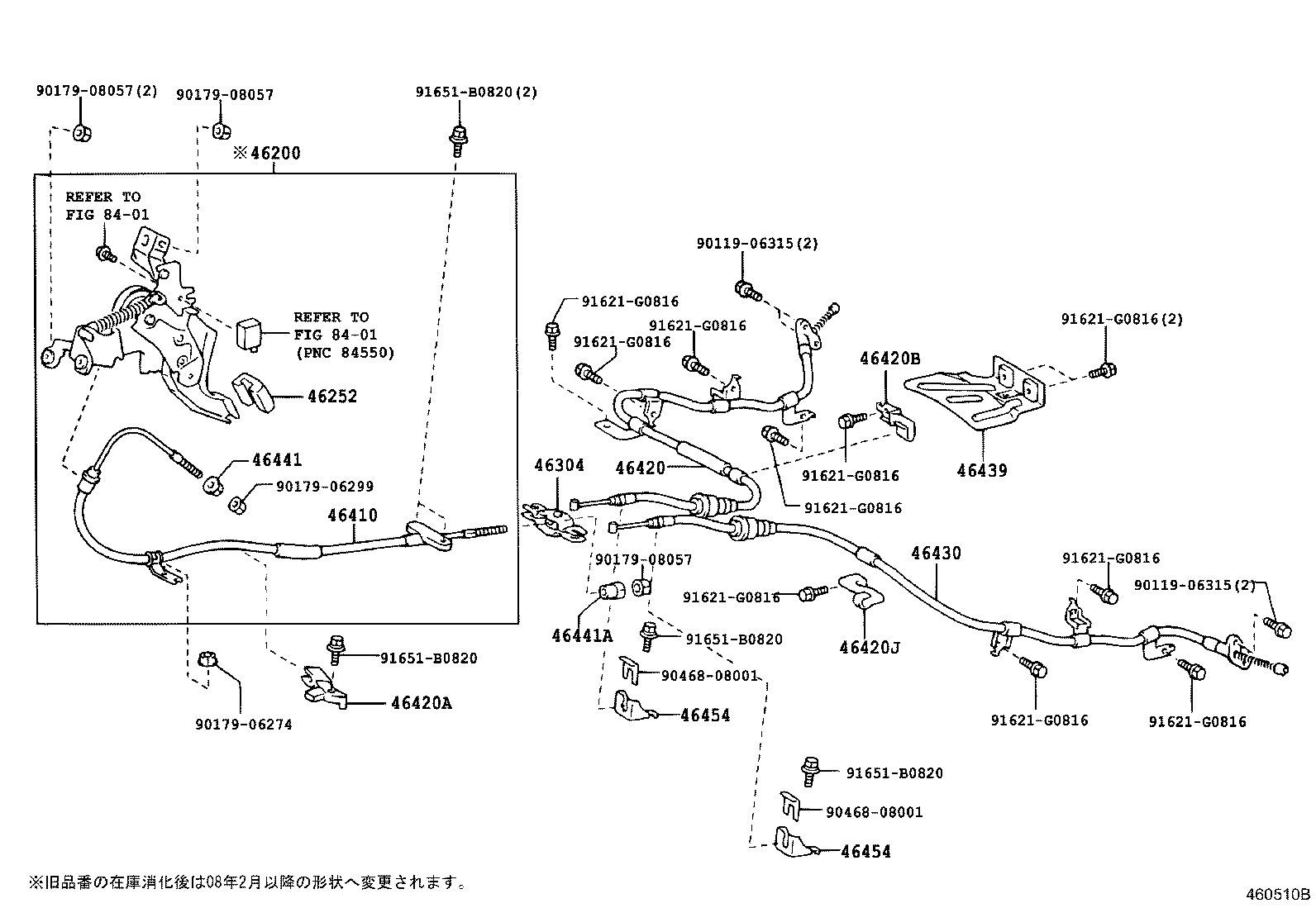

ILLUST NO. 1 OF 2(0211-0802)

Click highlighted areas on diagram

diagram 46200 46252 46304 46410 46420 46420A 46420B 46420J 46430 46439 46441 46441A 46454 46454 8401 8401 9011906315 9011906315 9017906274 9017906299 9017908057 9017908057 9017908057 9046808001 9046808001 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-35020

KDN215,TRN21#,VZN21#

 1
46210-35050

GRN215,TRN21#

 1
46200-35020

GRN215,TRN21#

 1
46252 - PAD, PARKING PEDAL
46252-35010

KDN215,TRN21#,VZN21#

 1
46252-35010

GRN215,TRN21#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-17020

KDN215,TRN21#,VZN21#

 1
46304-17020

GRN215,TRN21#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-3D070

KDN215,TRN21#,VZN21#

 1
46410-3D070

GRN215,TRN21#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35760

GRN215,TRN21#

 1
46420-35760

KDN215,TRN21#,VZN21#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-35080

GRN215,TRN21#

 1
46411-35080

KDN215,TRN21#,VZN21#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46421-35020

KDN215,TRN21#,VZN21#

 1
46421-35020

GRN215,TRN21#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46431-35020

KDN215,TRN21#,VZN21#

 1
46431-35020

GRN215,TRN21#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35550

KDN215,TRN21#,VZN21#

 1
46430-35550

GRN215,TRN21#

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-35060

KDN215,TRN21#,VZN21#

 1
46439-35060

GRN215,TRN21#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

GRN215,TRN21#

 1
46441-12010

KDN215,TRN21#,VZN21#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-35020

KDN215,TRN21#,VZN21#

 1
46441-35020

GRN215,TRN21#

 1
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

GRN215,TRN21#

 2
46454-35180

KDN215,TRN21#,VZN21#

 2
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

GRN215,TRN21#

 2
46454-35180

KDN215,TRN21#,VZN21#

 2
Common parts
90119-06315
90179-06274
90179-06299
90179-08057
90468-08001
91621-G0816
91651-B0820
Linked diagrams
8401

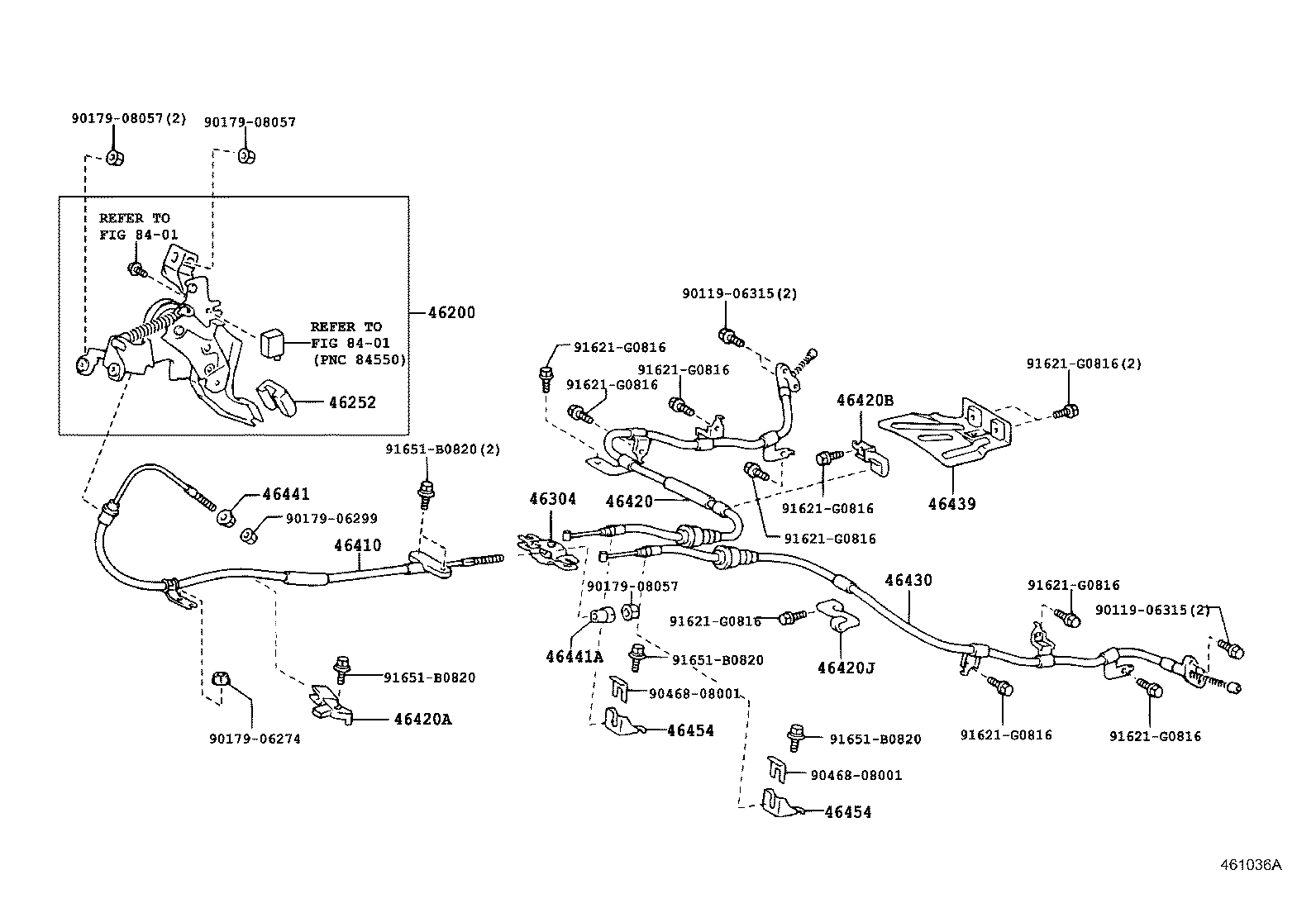

ILLUST NO. 1 OF 2(0802- )
