TRN215W-GKPGK (2004)

Toyota Hilux Surf

Production Aug 2004 - Aug 2005
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )TRN21#

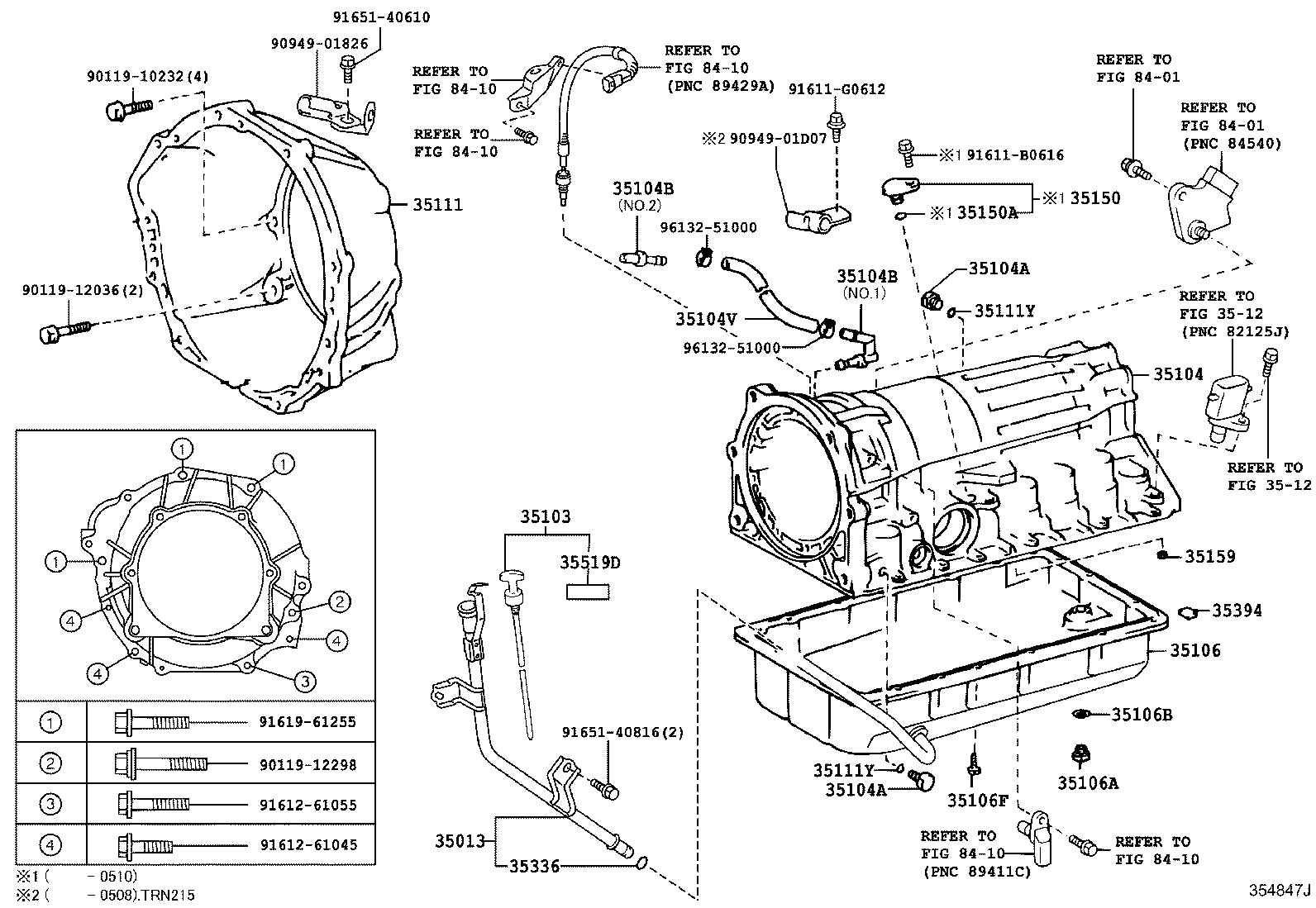

Click highlighted areas on diagram

A343E,A343F

diagram 35013 35103 35104 35104A 35104A 35104B 35104B 35104V 35106 35106A 35106B 35106F 35111 35111Y 35111Y 3512 3512 35150 35150A 35159 35336 35394 35519D 8401 8401 8410 8410 8410 8410 8410 9011910232 9011912036 9011912298 9094901826 9094901D07 91611B0616 91611G0612 9161261045 9161261055 9161961255 9165140610 9165140816 9613251000 9613251000
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-60310

TRN21#

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-35530

TRN21#

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KDN215,RZN21#,TRN21#,VZN21#

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

KDN215,RZN21#,TRN21#,VZN21#

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098

TRN21#

NO.1

 1
90930-03168

TRN21#

NO.2

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03098

TRN21#

NO.1

 1
90930-03168

TRN21#

NO.2

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11118

TRN21#

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-35130

TRN21#

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011

KDN215,RZN21#,TRN21#,VZN21#

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

TRN21#

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

TRN21#

 19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-71010

TRN21#

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KDN215,TRN21#,VZN21#

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

KDN215,TRN21#,VZN21#

 2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010

KDN215,TRN21#,VZN21#

 1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012

KDN215,TRN21#,VZN21#

 1
35159 - GASKET, BRAKE DRUM
35159-30010

TRN21#

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011

KDN215,RZN21#,TRN21#

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

TRN21#

 3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030

TRN21#

 1
Common parts
90119-10232
90119-12036
90119-12298
90949-01826
90949-01D07
91611-B0616
91611-G0612
91612-61045
91612-61055
91619-61255
91651-40610
91651-40816
96132-51000
