TRN210W-GKPXK (2004)

Toyota Hilux Surf

Production Aug 2004 - Aug 2005
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )TRN21#

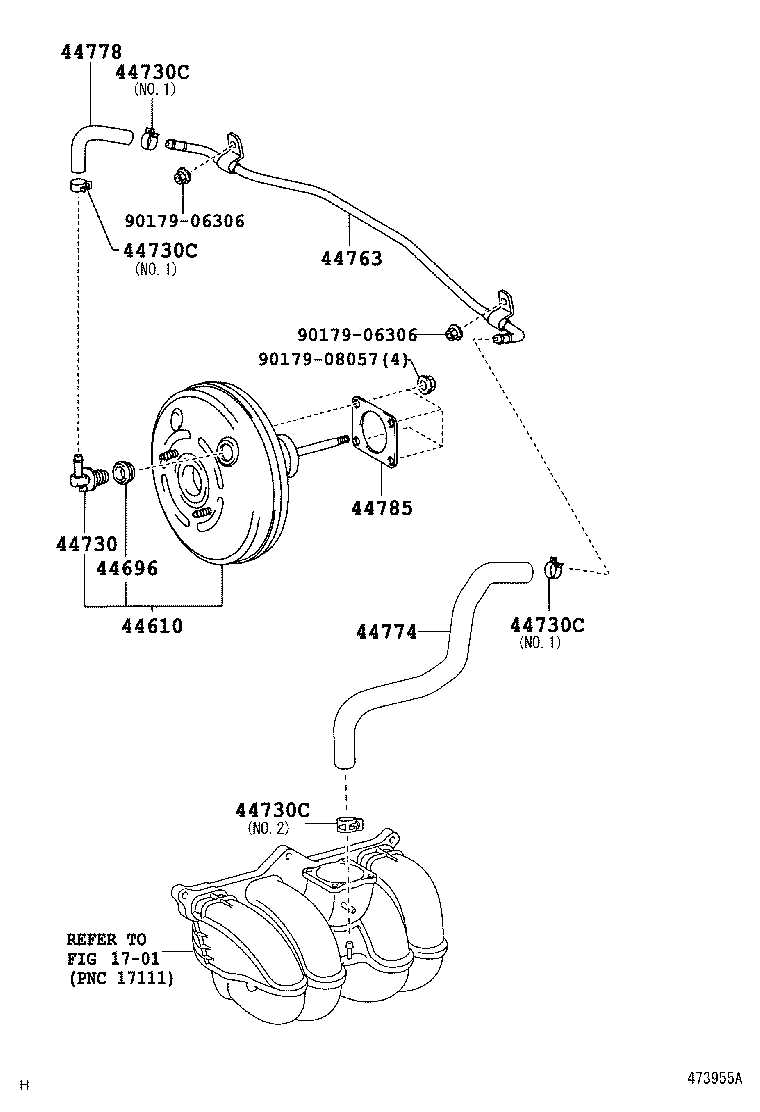

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730C 44730C 44763 44774 44778 44785 9017906306 9017906306 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A230

TRN21#,VZN21#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

KDN215,TRN21#,VZN21#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

TRN21#,VZN21#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16014

TRN21#

NO.2

 1
96133-41500

TRN21#

NO.1

 3
96133-41500

TRN21#

NO.1 & NO.2

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16014

TRN21#

NO.2

 1
96133-41500

TRN21#

NO.1

 3
96133-41500

TRN21#

NO.1 & NO.2

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16014

TRN21#

NO.2

 1
96133-41500

TRN21#

NO.1

 3
96133-41500

TRN21#

NO.1 & NO.2

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16014

TRN21#

NO.2

 1
96133-41500

TRN21#

NO.1

 3
96133-41500

TRN21#

NO.1 & NO.2

 4
44763 - TUBE, BOOSTER VACUUM
44763-60130

TRN21#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60310

TRN21#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60200

KDN215,TRN21#,VZN21#

 1
44785 - GASKET, BRAKE BOOSTER
44785-60020

KDN215,TRN21#,VZN21#

 1
Common parts
90179-06306
90179-08057
