RZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)KDN215,TRN21# ; (0508- )

Click highlighted areas on diagram

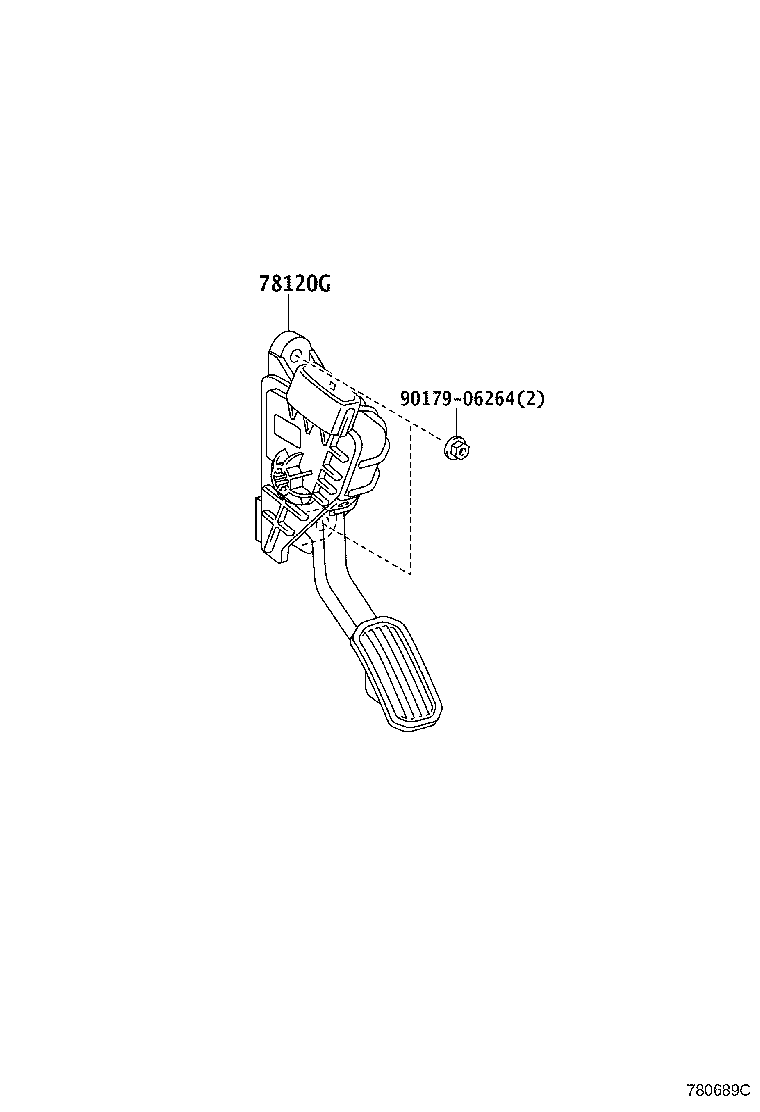

diagram 78120G 9017906264
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35480

RZN21#

 1
Common parts
90179-06264

(0211-0408)RZN21#

Click highlighted areas on diagram

diagram 78010B 78120G 78180P 78183B 9011906595 9011906775 9017906264 9616000600
Part # Description Qty Price
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90959-03364

RZN21#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35480

RZN21#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35550

RZN21#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-35060

RZN21#

 1
Common parts
90119-06595
90119-06775
90179-06264
96160-00600
