RZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

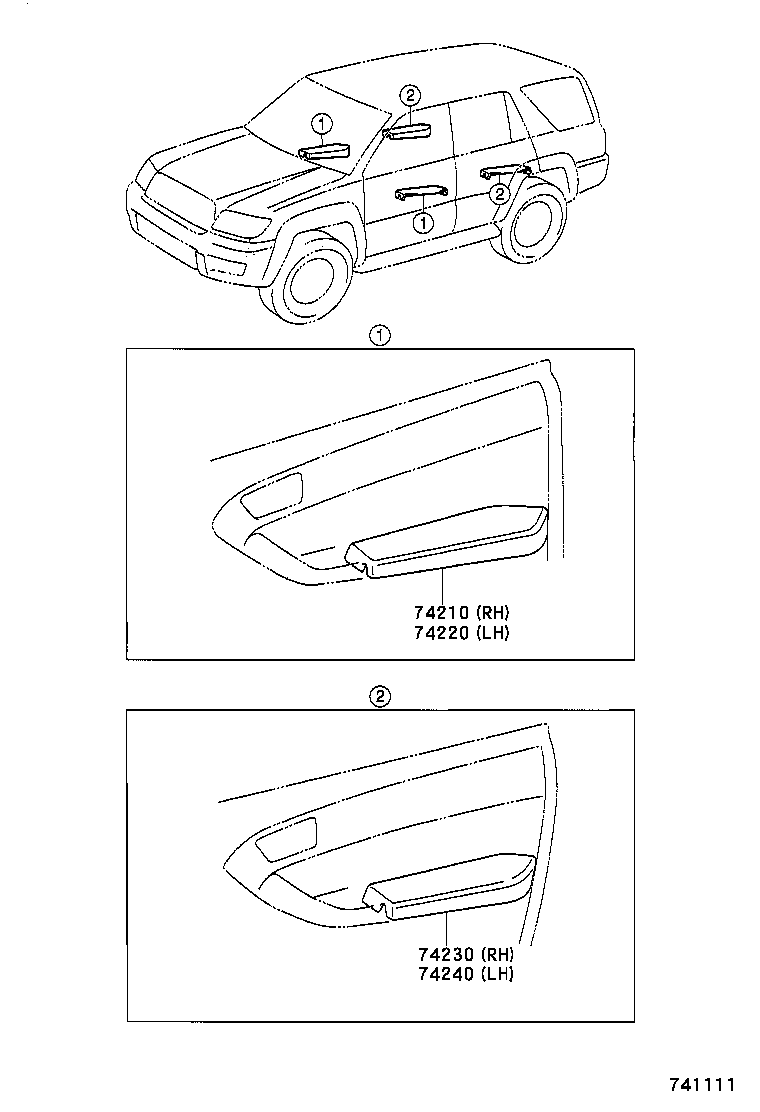

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

ｱ-ﾑﾚｽﾄ

diagram 74210 74220 74230 74240
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-35210B0

RZN21#

DK.GRAY,TRIM1#,4#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-35210B0

RZN21#

DK.GRAY,TRIM1#,4#

 1
74230 - ARMREST ASSY, REAR, RH
74250-35200B0

RZN21#

DK.GRAY,TRIM1#,4#

 1
74240 - ARMREST ASSY, REAR, LH
74260-35190B0

RZN21#

DK.GRAY,TRIM1#,4#

 1

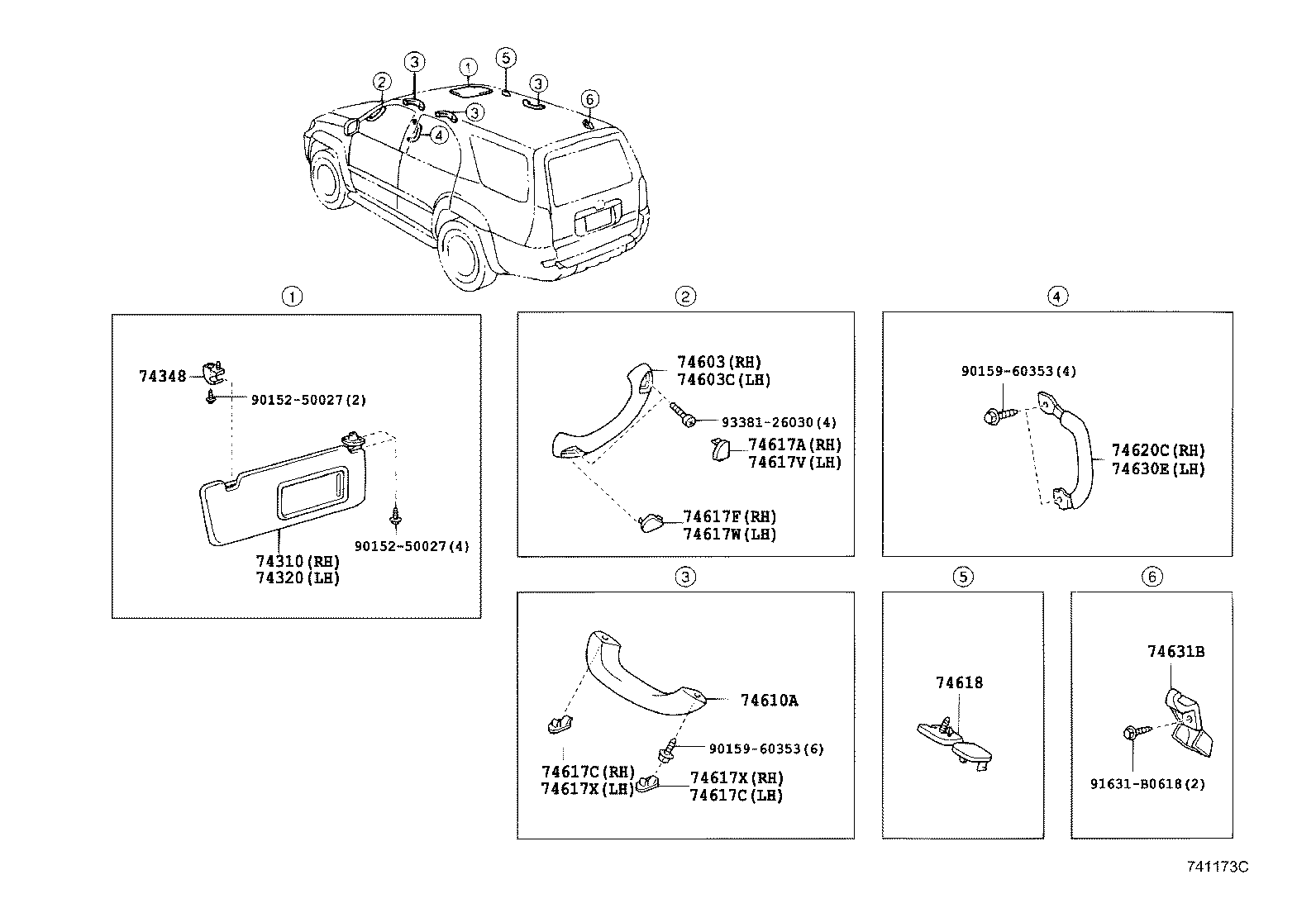

ILLUST NO. 2 OF 2(0211-0508)

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄ ｸﾞﾘﾂﾌﾟ

diagram 74310 74320 74348 74603 74603C 74610A 74617A 74617C 74617C 74617F 74617V 74617W 74617X 74617X 74618 74620C 74630E 74631B 9015250027 9015250027 9015960353 9015960353 91631B0618 9338126030
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-35830E0

RZN21#

FAWN,TRIM4#

 1
74310-35840B0

RZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#

 1
74310-35830B0

RZN21#

STONE,TRIM1#

 1
74310-35840E0

RZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-3D010B0

RZN21#

STONE,TRIM1#

 1
74320-3D020B0

RZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#

 1
74320-3D010E0

RZN21#

FAWN,TRIM4#

 1
74320-3D020E0

RZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#

 1
74348 - HOLDER, VISOR
74348-34010E1

RZN21#

FAWN,TRIM4#

 2
74348-34010B3

RZN21#

STONE,TRIM1#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-60010B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74603-60010E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74603C - GRIP SUB-ASSY, ASSIST
74603-60010B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74603-60010E0

KDN215,RZN21#,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#

 2
74603-60010E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74603-60010B0

KDN215,RZN21#,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74603-60010E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 3
74603-60010B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 3
74617A - PLUG, ASSIST GRIP
74617-60040E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74617-60040B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74617C - PLUG, ASSIST GRIP
74617-60040B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 3
74617-60040E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 3
74617C - PLUG, ASSIST GRIP
74617-60040B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 3
74617-60040E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 3
74617F - PLUG, ASSIST GRIP
74617-60050E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74617-60050B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74617V - PLUG, ASSIST GRIP
74617-60050B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74617-60050E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74617W - PLUG, ASSIST GRIP
74617-60040B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 1
74617-60040E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 1
74617X - PLUG, ASSIST GRIP
74617-60050B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 3
74617-60050E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 3
74617X - PLUG, ASSIST GRIP
74617-60050B0

KDN215,RZN21#,TRN21#,VZN21#

STONE,TRIM1#

 3
74617-60050E0

KDN215,RZN21#,TRN21#,VZN21#

FAWN,TRIM4#

 3
74618 - PLUG, FRONT ASSIST GRIP
74618-35010E0

RZN21#

FAWN,TRIM4#

 2
74618-35010B0

RZN21#

STONE,TRIM1#

 2
74620C - GRIP ASSY, ASSIST, REAR RH
74620-60050B0

RZN21#

STONE,TRIM1#

 1
74620-60050E0

RZN21#

FAWN,TRIM4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74630-60050B0

RZN21#

STONE,TRIM1#

 1
74630-60050E0

RZN21#

FAWN,TRIM4#

 1
74631B - HOOK, COAT
74631-35030B0

RZN21#

STONE,TRIM1#

 2
74631-35030E0

RZN21#

FAWN,TRIM4#

 2
Common parts
90152-50027
90159-60353
91631-B0618
93381-26030
