RZN215W-GKPXK (2002)
Toyota Hilux Surf

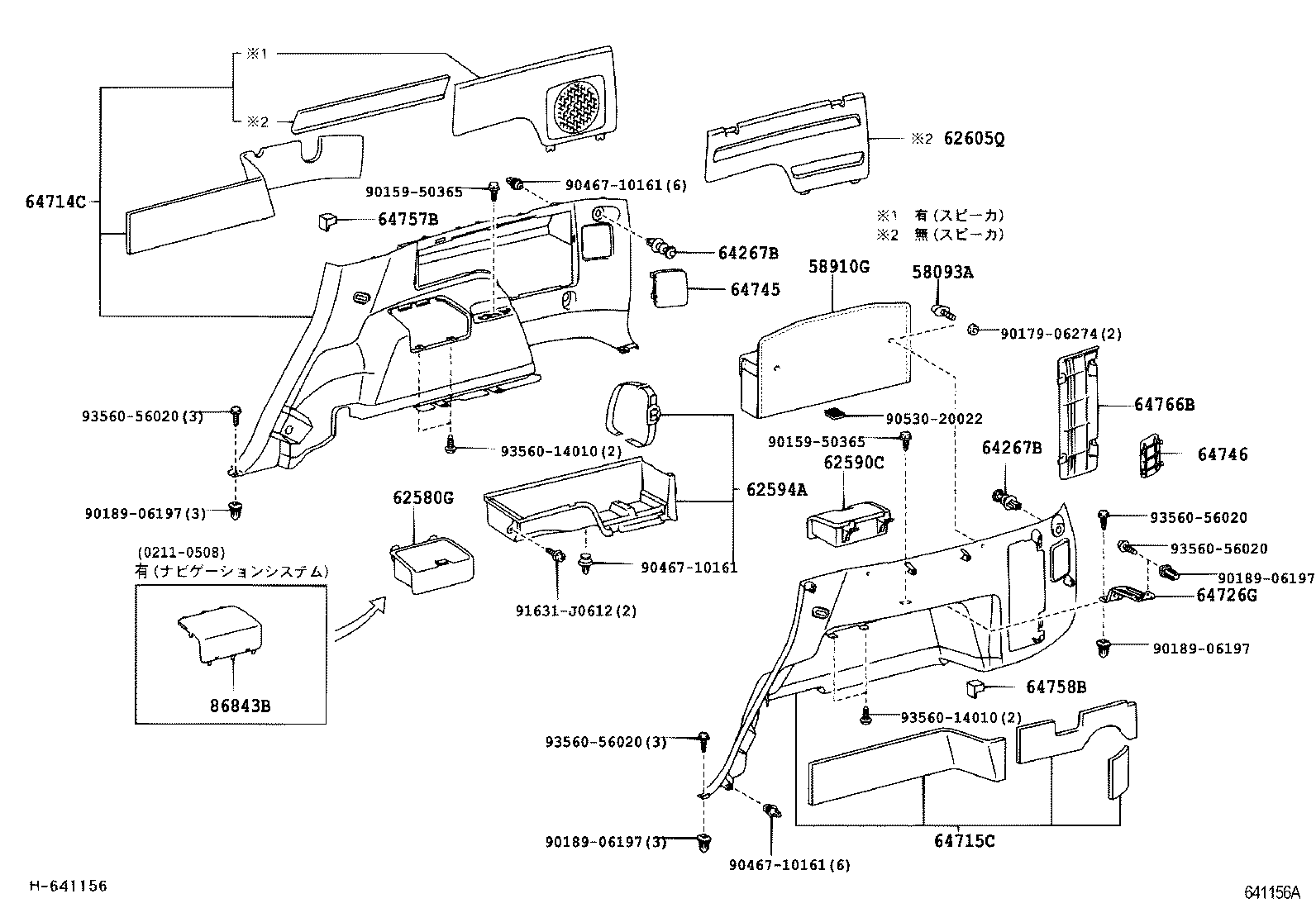

ILLUST NO. 2 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58093A - LOCK SUB-ASSY, BOX | ||||
| 58093-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
2 | ||
| 58093-35010 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
2 | ||
| 58910G - BOX ASSY | ||||
| 58910-35080 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 58910-35080 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 62580G - BOX ASSY, SIDE TRIM, RH | ||||
| 62580-35020B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62580-35020E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62590C - BOX ASSY, SIDE TRIM, LH | ||||
| 62590-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62590-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62690-35010 |
RZN21# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62693-35030B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62693-35030E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64267B - HOOK, PACKAGE HOLDER NET | ||||
| 64267-0C010B1 |
RZN21# STONE,TRIM1# |
4 | ||
| 64267-0C010E1 |
RZN21# FAWN,TRIM4# |
4 | ||
| 64267B - HOOK, PACKAGE HOLDER NET | ||||
| 64267-0C010B1 |
RZN21# STONE,TRIM1# |
4 | ||
| 64267-0C010E1 |
RZN21# FAWN,TRIM4# |
4 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-35904B1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM1# |
1 | ||
| 64714-35904E1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4# |
1 | ||
| 64714-35903E1 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64714-35904B1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1# |
1 | ||
| 64714-35904E1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM4# |
1 | ||
| 64714-35903B1 |
RZN21# STONE,TRIM1# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-35902B1 |
RZN21# STONE,TRIM1# |
1 | ||
| 64715-35903B1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1# |
1 | ||
| 64715-35902E1 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64715-35903E1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4# |
1 | ||
| 64715-35903B1 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM12 |
1 | ||
| 64715-35903B1 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM12 |
1 | ||
| 64715-35903E1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM42 |
1 | ||
| 64715-35903B1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM1# |
1 | ||
| 64715-35903E1 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM42 |
1 | ||
| 64715-35903E1 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM4# |
1 | ||
| 64726G - RETAINER, DECK TRIM REAR COVER | ||||
| 64726-35010 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 64726-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ) |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64745-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64746-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64757B - PROTECTOR, DECK SIDE GARNISH, REAR RH | ||||
| 64757-35010 |
RZN21# |
1 | ||
| 64758B - PROTECTOR, DECK SIDE GARNISH, REAR LH | ||||
| 64758-35010 |
RZN21# |
1 | ||
| 64766B - COVER, QUARTER TRIM JACK | ||||
| 64766-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64766-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 86843B - COVER, NAVIGATION COMPUTER | ||||
| 86843-35010B0 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,STONE,TRIM1# |
1 | ||
| 86843-35010E0 |
RZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,FAWN,TRIM4# |
1 | ||
| 86843-35010B0 |
RZN215;KDN215,RZN210,VZN210..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1# |
1 | ||
| 86843-35010E0 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50365 | ||||
| 90179-06274 | ||||
| 90189-06197 | ||||
| 90467-10161 | ||||
| 90530-20022 | ||||
| 91631-J0612 | ||||
| 93560-14010 | ||||
| 93560-56020 | ||||

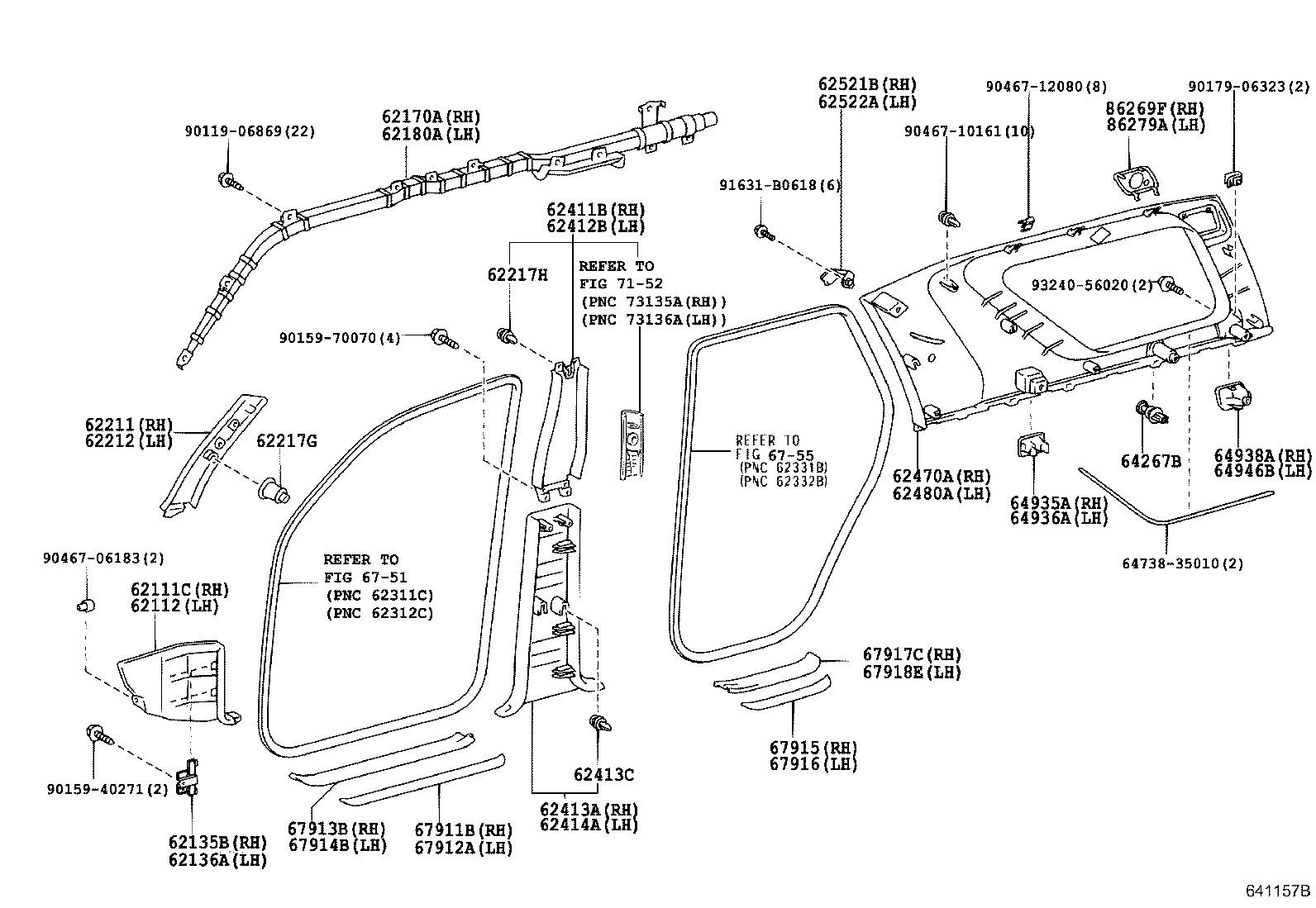

ILLUST NO. 1 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60090B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62111-60090E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60140B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62112-60140E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62135B - RETAINER, COWL SIDE CARPET, RH | ||||
| 62135-60010 |
RZN21# |
1 | ||
| 62136A - RETAINER, COWL SIDE CARPET, LH | ||||
| 62136-60010 |
RZN21# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-35011 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-35011 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-35080E0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 62211-35080B0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 62211-35070E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62211-35070B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-35080B0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 62212-35080E0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 62212-35070B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62212-35070E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-35010 |
RZN21# |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-11111 |
RZN21# |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-35030E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62411-35030B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-35030B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62412-35030E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60060E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62413-60060B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
RZN21# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60070B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62414-60070E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-35900E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62470-35900B0 |
RZN21#..SSRX STONE,TRIM1# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-35900E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62480-35900B0 |
RZN21#..SSRX STONE,TRIM1# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-35020B0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 62521-35020E0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 62521-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62521-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-35010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 62522-35020B0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 62522-35020E0 |
RZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 62522-35010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64267B - HOOK, PACKAGE HOLDER NET | ||||
| 64267-0C010B1 |
RZN21# STONE,TRIM1# |
4 | ||
| 64267-0C010E1 |
RZN21# FAWN,TRIM4# |
4 | ||
| 64935A - HOLDER, TONNEAU COVER | ||||
| 64935-35050E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64935-35050B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64936A - HOLDER, TONNEAU COVER, LH | ||||
| 64936-35040E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64936-35040B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64938A - HOOK, TONNEAU COVER, A | ||||
| 64938-35030B0 |
RZN21# ﾄﾉｶﾊﾞｰ有り,STONE,TRIM1# |
1 | ||
| 64938-35030E0 |
RZN21# ﾄﾉｶﾊﾞｰ有り,FAWN,TRIM4# |
1 | ||
| 64938-35050B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64938-35050E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64946B - HOOK, TONNEAU COVER, B | ||||
| 64946-35050B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 64946-35030B0 |
RZN21# ﾄﾉｶﾊﾞｰ有り,STONE,TRIM1# |
1 | ||
| 64946-35050E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 64946-35030E0 |
RZN21# ﾄﾉｶﾊﾞｰ有り,FAWN,TRIM4# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-60010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67911-60010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-60010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67911-60010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-60080E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67913-60080B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-60070B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67914-60070E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-60010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67915-60010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-60010E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67916-60010B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60080E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67917-60080B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60070E0 |
RZN21# FAWN,TRIM4# |
1 | ||
| 67918-60070B0 |
RZN21# STONE,TRIM1# |
1 | ||
| 86269F - GRILLE, SPEAKER, RH | ||||
| 86269-35010E0 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM4# |
1 | ||
| 86269-35010E0 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4# |
1 | ||
| 86269-35010B0 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1# |
1 | ||
| 86269-35010B0 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM1# |
1 | ||
| 86279A - GRILLE, SPEAKER, LH | ||||
| 86279-35010B0 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),STONE,TRIM1# |
1 | ||
| 86279-35010E0 |
RZN215;KDN215,RZN210,VZN21#..SSRX ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),FAWN,TRIM4# |
1 | ||
| 86279-35010B0 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),STONE,TRIM1# |
1 | ||
| 86279-35010E0 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑ(AM/FM/MD/CDﾁｪﾝｼﾞｬｰ),FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 64738-35010 | ||||
| 90119-06869 | ||||
| 90159-40271 | ||||
| 90159-70070 | ||||
| 90179-06323 | ||||
| 90467-06183 | ||||
| 90467-10161 | ||||
| 90467-12080 | ||||
| 91631-B0618 | ||||
| 93240-56020 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
