RZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

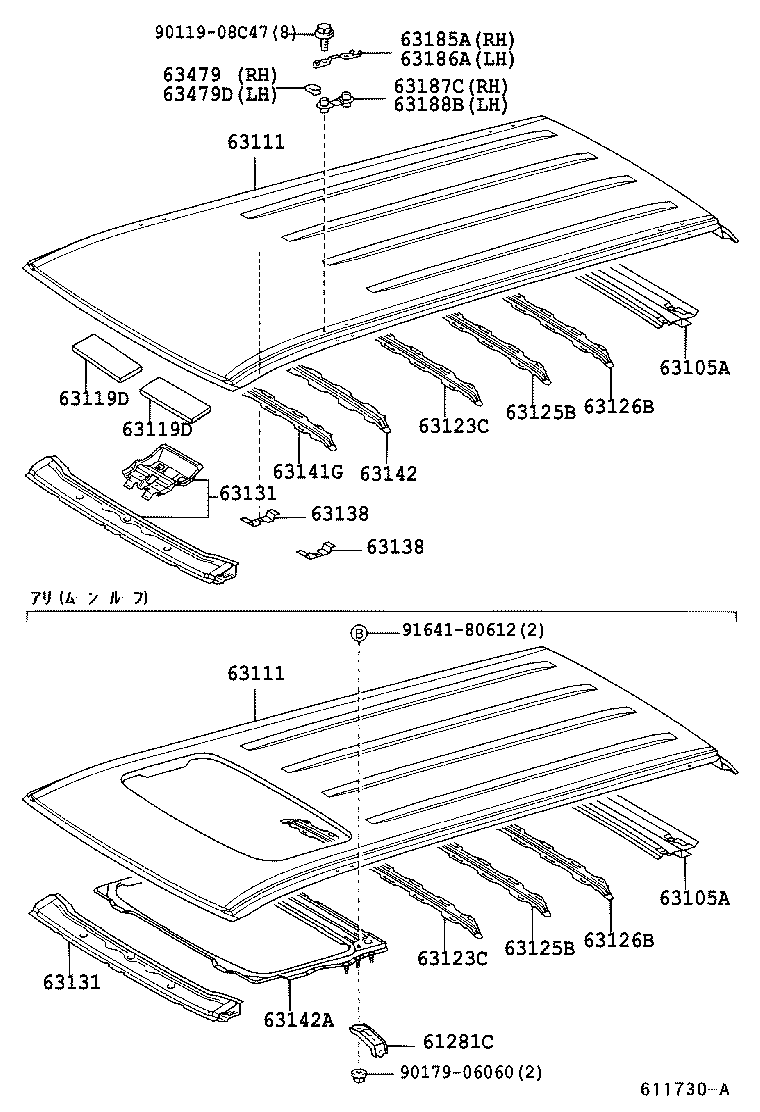

ILLUST NO. 1 OF 3(0211- )

Click highlighted areas on diagram

ﾙ-ﾌ ﾊﾟﾈﾙ

diagram 61281C 63105A 63105A 63111 63111 63119D 63119D 63123C 63123C 63125B 63125B 63126B 63126B 63131 63131 63138 63138 63141G 63142 63142A 63185A 63186A 63187C 63188B 63479 63479D 9011908C47 9017906060 9164180612
Part # Description Qty Price
61281C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61281-60030

RZN21#

ﾑｰﾝﾙｰﾌ有り

 2
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63019-35011

RZN21#

 1
63019-35010

KDN215,RZN21#,VZN21#

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63019-35011

RZN21#

 1
63019-35010

KDN215,RZN21#,VZN21#

 1
63111 - PANEL, ROOF
63111-35250

RZN21#

 1
63111-35270

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63111 - PANEL, ROOF
63111-35250

RZN21#

 1
63111-35270

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63119D - PAD, ROOF PANEL, NO.1
63119-35010

KDN215,RZN21#,TRN21#,VZN21#

 2
63119D - PAD, ROOF PANEL, NO.1
63119-35010

KDN215,RZN21#,TRN21#,VZN21#

 2
63123C - REINFORCEMENT, ROOF PANEL
63123-35010

RZN21#

 1
63123C - REINFORCEMENT, ROOF PANEL
63123-35010

RZN21#

 1
63125B - REINFORCEMENT, ROOF PANEL, FRONT
63125-35020

RZN21#

 1
63125B - REINFORCEMENT, ROOF PANEL, FRONT
63125-35020

RZN21#

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-35050

RZN21#

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-35050

RZN21#

 1
63131 - PANEL, WINDSHIELD HEADER, OUTER
63102-35040

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63102-35020

RZN21#

 1
63131 - PANEL, WINDSHIELD HEADER, OUTER
63102-35040

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63102-35020

RZN21#

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

RZN21#

 2
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

RZN21#

 2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-35040

RZN21#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63143-35020

RZN21#

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-60901

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63185A - BRACKET, ROOF RACK, FRONT RH
63185-42020

RZN21#

 2
63186A - BRACKET, ROOF RACK, FRONT LH
63185-42020

RZN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

RZN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

RZN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

RZN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

RZN21#

 2
Common parts
90119-08C47
90179-06060
91641-80612

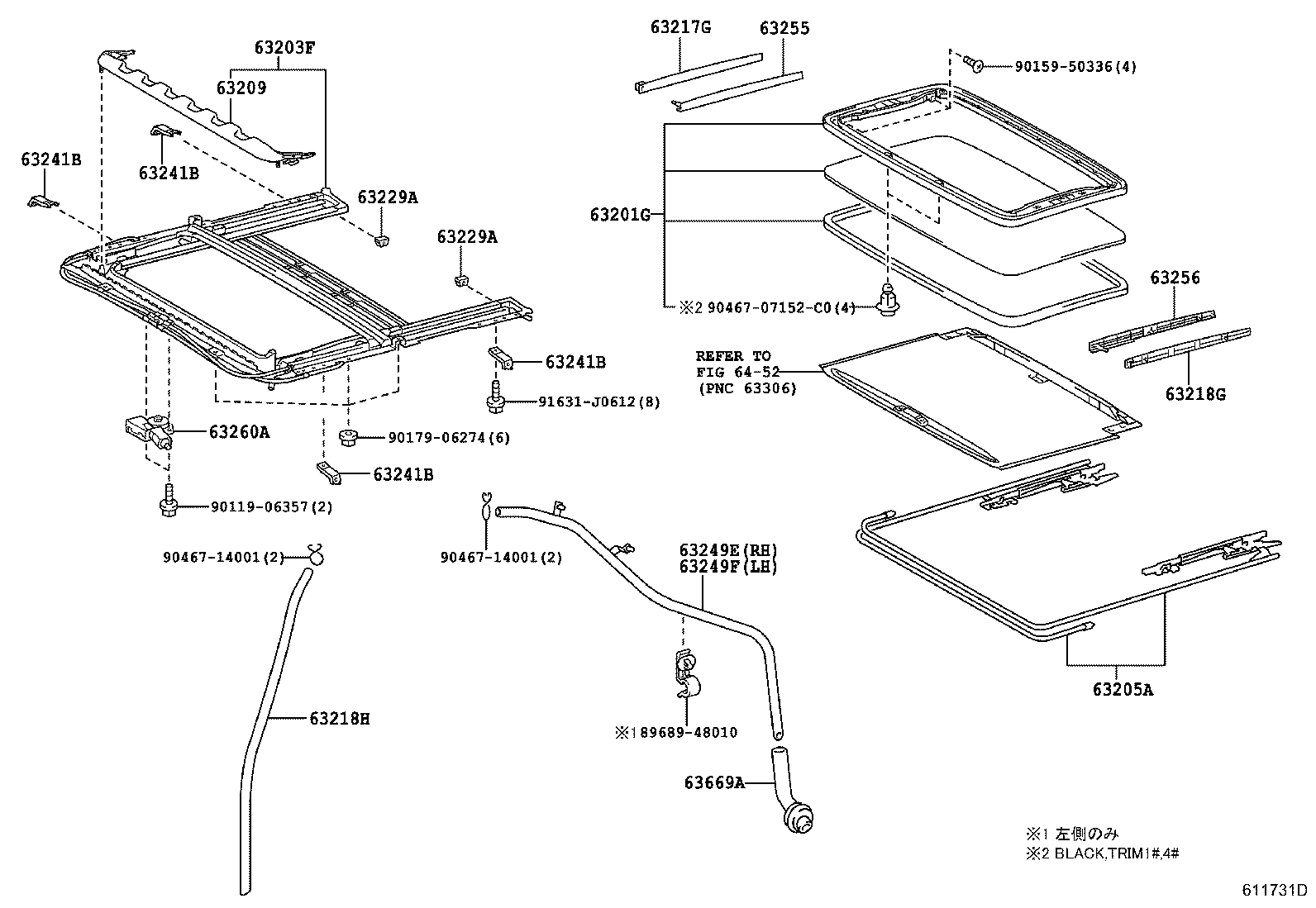

ILLUST NO. 2 OF 3(0211- )

Click highlighted areas on diagram

ﾑｰﾝ ﾙｰﾌ

diagram 63201G 63203F 63205A 63209 63217G 63218G 63218H 63229A 63229A 63241B 63241B 63241B 63241B 63249E 63249F 63255 63256 63260A 63669A 6452 8968948010 9011906357 9015950336 9017906274 9046707152C0 9046714001 9046714001 91631J0612
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-35084

RZN21#

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ有り

 1
63201-35083

KDN215,RZN21#,VZN21#

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ有り

 1
63201-35081

KDN215,RZN21#,VZN21#

*TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ有り

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-35040

KDN215,RZN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-35030

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-35040

KDN215,RZN21#,TRN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-35021

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63217-35020

KDN215,RZN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-35030

KDN215,RZN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63218-35031

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63218H - HOSE, SLIDING ROOF DRAIN
63249-35140

RZN21#

ﾑｰﾝﾙｰﾌ有り

 2
63229A - STOPPER, SLIDING ROOF SUNSHADE
63229-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 2
63229A - STOPPER, SLIDING ROOF SUNSHADE
63229-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 4
63249E - HOSE, SLIDING ROOF DRAIN
63247-35020

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63249F - HOSE, SLIDING ROOF DRAIN
63248-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-35020

KDN215,RZN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63255-35021

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63256 - COVER, SLIDING ROOF GUIDE RAIL, LH
63256-35010

KDN215,RZN21#,VZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63256-35011

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-35060

RZN21#

ﾑｰﾝﾙｰﾌ有り

 1
63669A - GROMMET, SLIDING ROOF DRAIN
63669-35010

RZN21#

ﾑｰﾝﾙｰﾌ有り

 2
Common parts
89689-48010
90119-06357
90159-50336
90179-06274
90467-07152C0
90467-14001
91631-J0612
Linked diagrams
6452

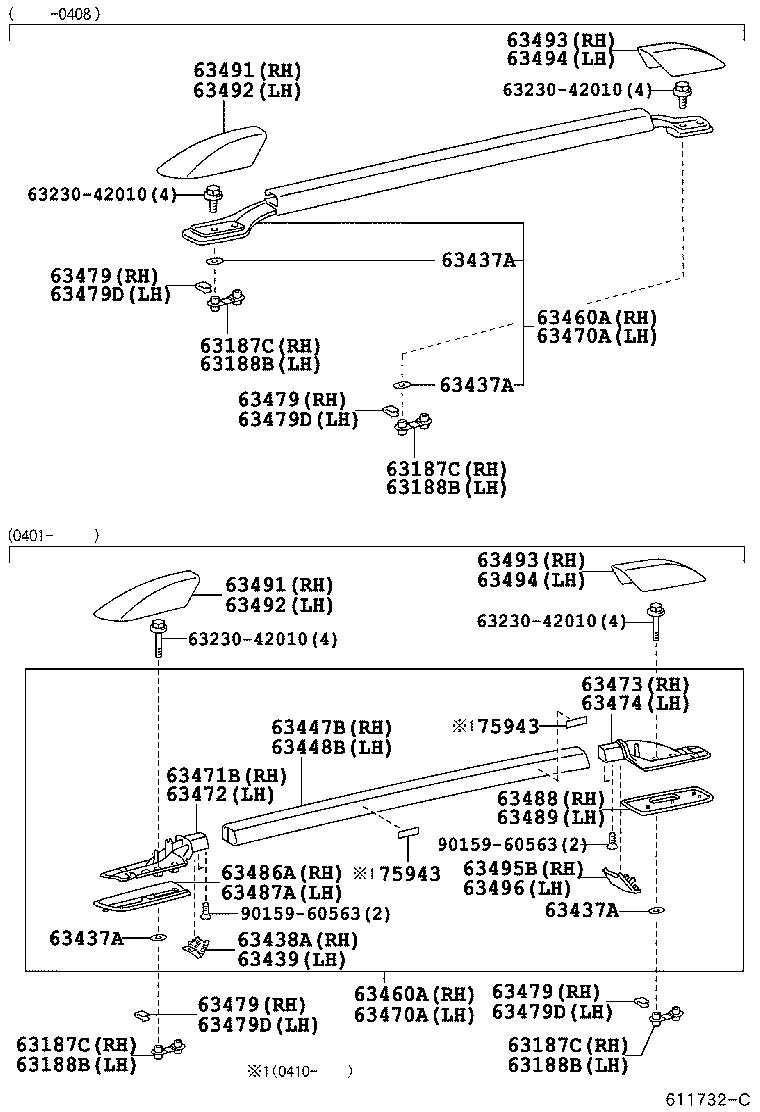

ILLUST NO. 3 OF 3(0211- )

Click highlighted areas on diagram

ﾙ-ﾌ ﾗﾂｸ

diagram 63187C 63187C 63187C 63187C 63188B 63188B 63188B 63188B 6323042010 6323042010 6323042010 6323042010 63437A 63437A 63437A 63437A 63438A 63439 63447B 63448B 63460A 63460A 63470A 63470A 63471B 63472 63473 63474 63479 63479 63479 63479 63479D 63479D 63479D 63479D 63486A 63487A 63488 63489 63491 63491 63492 63492 63493 63493 63494 63494 63495B 63496 75943 75943 9015960563 9015960563
Part # Description Qty Price
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

RZN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

RZN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

RZN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

RZN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

RZN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

RZN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

RZN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

RZN21#

 2
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 8
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 8
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 8
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 8
63460A - RACK ASSY, ROOF, RH
63460-35020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63460-35021

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63460A - RACK ASSY, ROOF, RH
63460-35020

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63460-35021

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63470A - RACK ASSY, ROOF, LH
63470-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63470-35011

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63470A - RACK ASSY, ROOF, LH
63470-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63470-35011

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63479 - RETAINER, ROOF INNER RACK
63479-42010

RZN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

RZN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

RZN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

RZN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

RZN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

RZN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

RZN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

RZN21#

 2
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-35010

KDN215,RZN21#,VZN21#

ﾙｰﾌﾚｰﾙ−有り(ｼﾙﾊﾞｰ)

 1
Common parts
63230-42010
90159-60563
