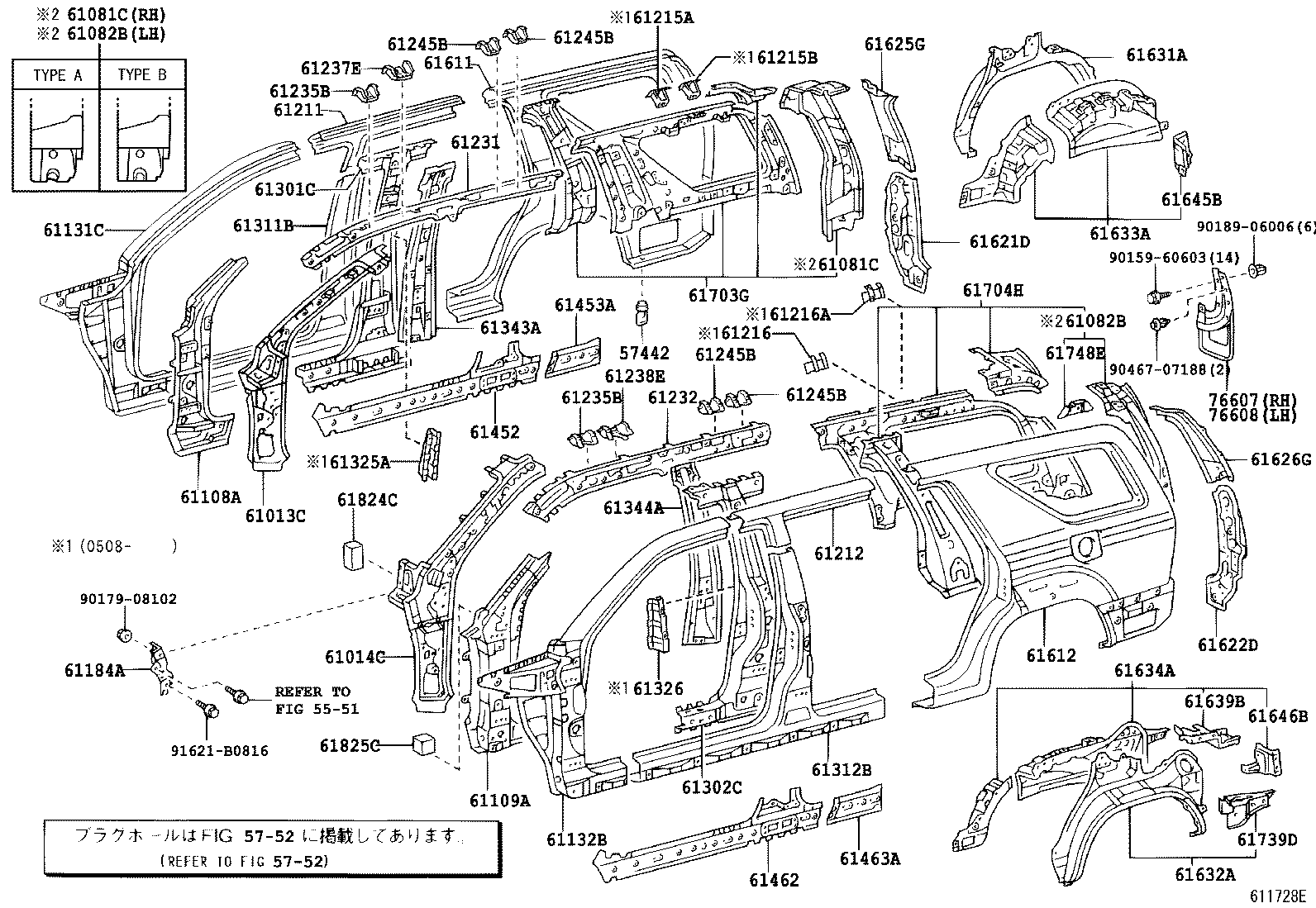

RZN215W-GKPXK (2002)
Toyota Hilux Surf
(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-95J00 |
RZN21# |
2 | ||
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-35010 |
RZN21# |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-35010 |
RZN21# |
1 | ||
| 61081C - REINFORCE, ROOF SIDE, INNER RH | ||||
| 61081-35011 |
KDN215,RZN21#,VZN21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 61081-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61081-35040 |
RZN21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 61081C - REINFORCE, ROOF SIDE, INNER RH | ||||
| 61081-35011 |
KDN215,RZN21#,VZN21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 61081-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61081-35040 |
RZN21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 61082B - REINFORCE, ROOF SIDE, INNER LH | ||||
| 61082-35011 |
KDN215,RZN21#,VZN21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 61082-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61082-35040 |
RZN21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 61082B - REINFORCE, ROOF SIDE, INNER LH | ||||
| 61082-35011 |
KDN215,RZN21#,VZN21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 61082-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61082-35040 |
RZN21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-35050 |
RZN21# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-35050 |
RZN21# |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-35050 |
RZN21# |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-35050 |
RZN21# |
1 | ||
| 61184A - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-35030 |
RZN21# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-35050 |
RZN21# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-35050 |
RZN21# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-35170 |
RZN21# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-35120 |
RZN21# |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-35010 |
RZN21# |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-35010 |
RZN21# |
1 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-35010 |
RZN21# |
1 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61238-35010 |
RZN21# |
1 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-35010 |
RZN21# |
2 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-35010 |
RZN21# |
2 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-35010 |
RZN21# |
2 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-35010 |
RZN21# |
2 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-35030 |
RZN21# |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-35050 |
RZN21# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-35010 |
RZN21# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-35010 |
RZN21# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-35040 |
RZN21# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-35040 |
RZN21# |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-60020 |
RZN21# |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-60010 |
RZN21# |
1 | ||
| 61462 - PANEL, ROCKER, INNER FRONT LH | ||||
| 61462-60020 |
RZN21# |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-60010 |
RZN21# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-35190 |
RZN21# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-35130 |
RZN21# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-35020 |
RZN21# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-35020 |
RZN21# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-35020 |
RZN21# |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-35020 |
RZN21# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-35901 |
RZN21# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-35900 |
RZN21# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-35900 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 61633-35901 |
RZN21#;KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 61633-35901 |
KDN215,RZN21#,TRN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-35900 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61639B - BASE, JACK SUPPORT CARRIER | ||||
| 61639-35010 |
RZN21# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-60050 |
RZN21# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-35010 |
RZN21# |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-35900 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61703-35901 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-35901 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61704-35900 |
KDN215,RZN21#,VZN21# |
1 | ||
| 61739D - REINFORCEMENT, JACK CARRIER SUPPORT | ||||
| 61739-35010 |
RZN21# |
1 | ||
| 61748E - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-35010 |
RZN21# |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-35020 |
RZN21# |
2 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-35010 |
RZN21# |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-35090 |
RZN21#..SSRX ｶｽﾀﾏｲｽﾞ ﾊﾟｯｹｰｼﾞ |
1 | ||
| 76607-35090 |
RZN21# 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-35190 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 76626-35190 |
RZN21#..SSRX ｶｽﾀﾏｲｽﾞ ﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-60603 | ||||
| 90179-08102 | ||||
| 90189-06006 | ||||
| 90467-07188 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 5752 | ||||
