RZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )3RZFE

Click highlighted areas on diagram

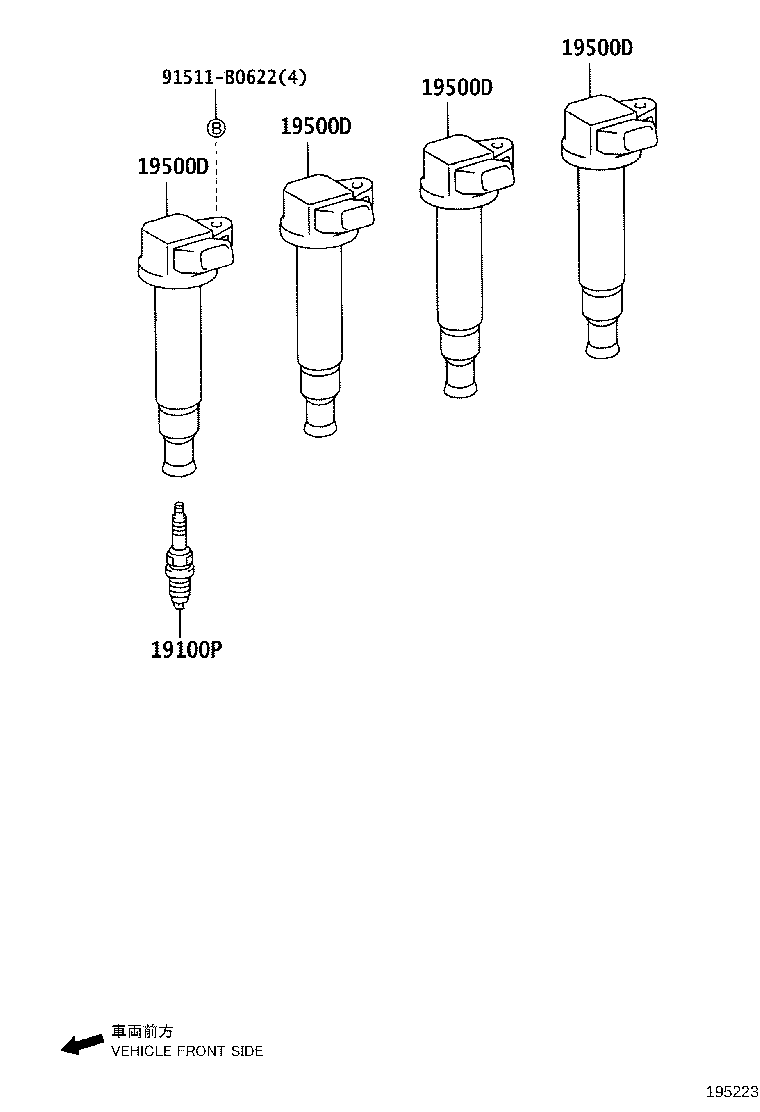

diagram 19100P 19500D 19500D 19500D 19500D 91511B0622
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

3RZFE..RZN21#

K16R−U11

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFE..RZN21#

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFE..RZN21#

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFE..RZN21#

 4
19500D - COIL, IGNITION, NO.1
90919-02237

3RZFE..RZN21#

 4
Common parts
91511-B0622
