RZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

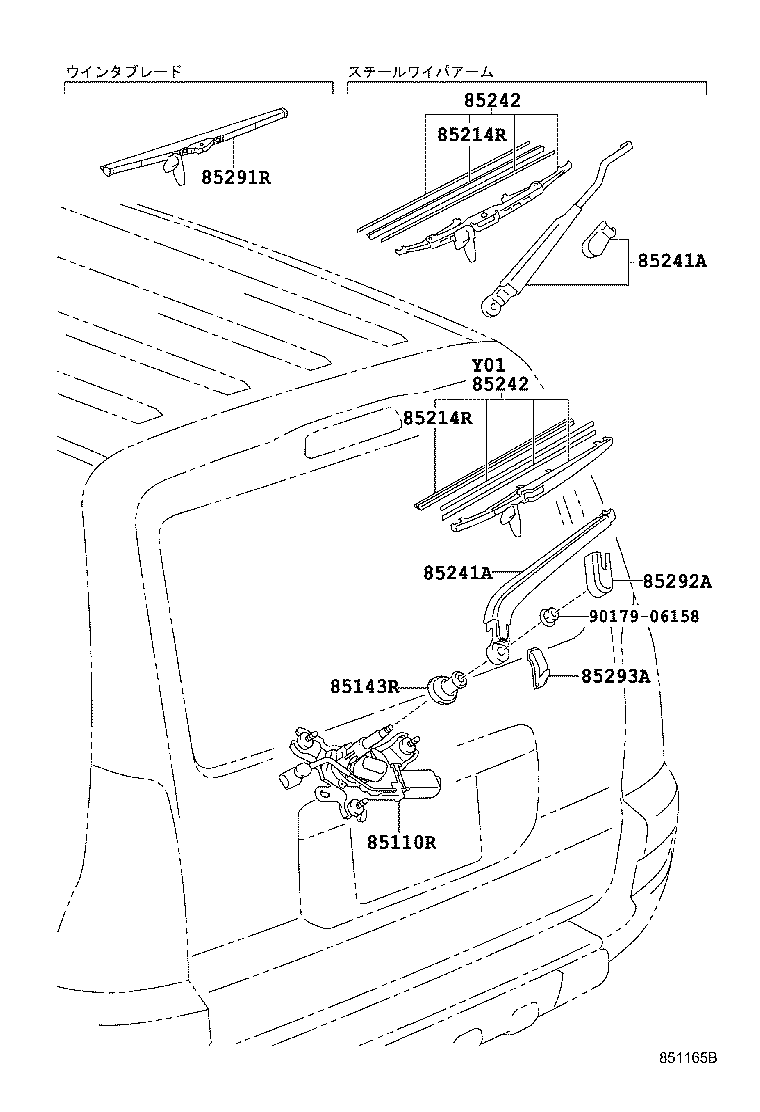

Click highlighted areas on diagram

diagram 85110R 85143R 85214R 85214R 85241A 85241A 85242 85242 85291R 85292A 85293A 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-35080

RZN21#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-35070

RZN21#

 1
85214R - RUBBER, REAR WIPER
85223-65030

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85214-22440

RZN21#

 1
85223-65030

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85214R - RUBBER, REAR WIPER
85223-65030

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85214-22440

RZN21#

 1
85223-65030

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85241A - ARM, REAR WIPER
85241-35040

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85241-35030

KDN215,RZN21#,VZN21#

 1
85241-35031

RZN21#

 1
85241-35040

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｽﾁｰﾙ ﾜｲﾊﾟ ｱｰﾑ

 1
85241A - ARM, REAR WIPER
85241-35040

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85241-35030

KDN215,RZN21#,VZN21#

 1
85241-35031

RZN21#

 1
85241-35040

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｽﾁｰﾙ ﾜｲﾊﾟ ｱｰﾑ

 1
85242 - BLADE, RR WIPER
85242-35030

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85242-35030

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85242-35020

RZN21#

 1
85242 - BLADE, RR WIPER
85242-35030

RZN21#

ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟｰ−寒冷地仕様,有り(ｽﾁｰﾙ ﾜｲﾊﾟｱｰﾑ)

 1
85242-35030

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85242-35020

RZN21#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-35040

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291-35050

RZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-35010

RZN21#

 1
85293A - STOPPER,REAR WIPER
85293-35020

RZN21#

 1
Common parts
90179-06158
