RZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

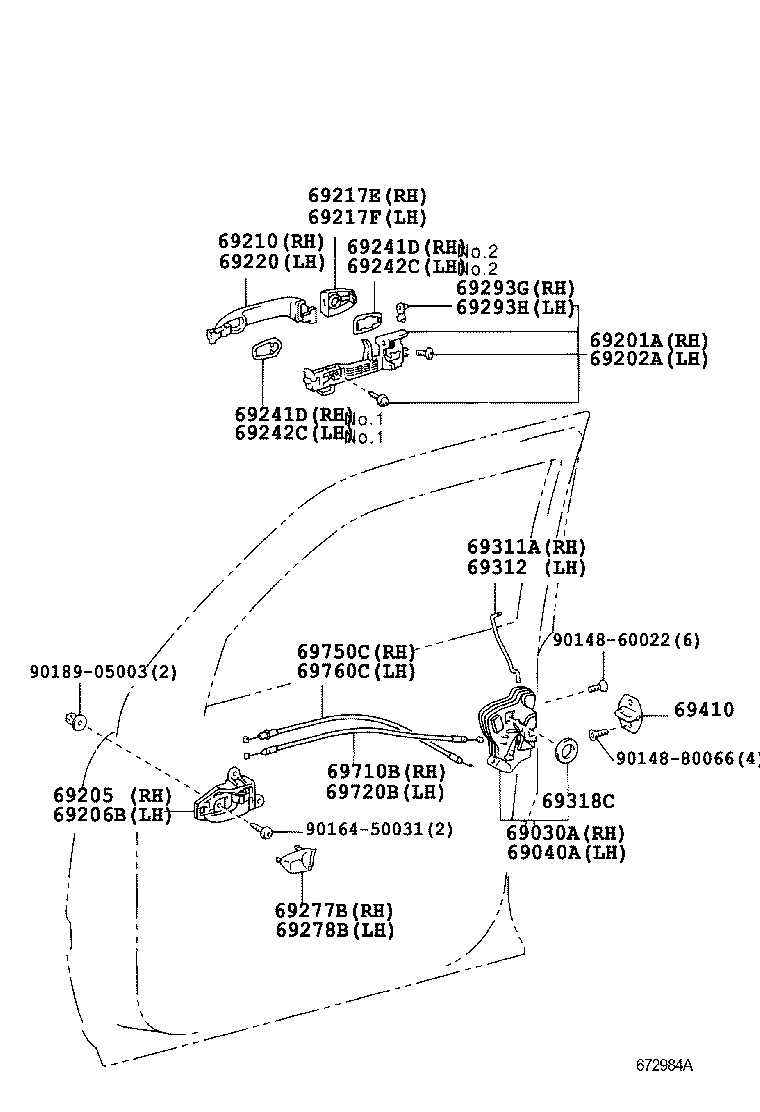

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69206B 69210 69217E 69217F 69220 69241D 69241D 69242C 69242C 69277B 69278B 69293G 69293H 69311A 69312 69318C 69410 69710B 69720B 69750C 69760C 9014860022 9014880066 9016450031 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-33241

RZN21#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-33271

RZN21#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-28010

RZN21#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-28010

RZN21#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-44020B1

RZN21#

DK.GRAY,TRIM1#,4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-44020B1

RZN21#

DK.GRAY,TRIM1#,4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-28070B0

RZN21#

SILVER ME.,1D4

 1
69211-28070C1

RZN21#

BLACK,202

 1
69211-28070A3

RZN21#

WHITE PEARL CS.,070

 1
69211-28070F2

RZN21#

CHAMPAGNE M.M.,587

 1
69211-28070J1

RZN21#

DK.BLUE MC.,8Q0

 1
69211-28070B4

RZN21#

DK.GRAY M.M.,1E9

 1
69211-28070J2

RZN21#

GRAYISH BLUE ME.,8R3

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-28010F2

RZN21#

CHAMPAGNE M.M.,587

 1
69217-28010B0

RZN21#

SILVER ME.,1D4

 1
69217-28010B4

RZN21#

DK.GRAY M.M.,1E9

 1
69217-28010C1

RZN21#

BLACK,202

 1
69217-28010J1

RZN21#

DK.BLUE MC.,8Q0

 1
69217-28010A3

RZN21#

WHITE PEARL CS.,070

 1
69217-28010J2

RZN21#

GRAYISH BLUE ME.,8R3

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-60020J1

RZN21#

GRAYISH BLUE ME.,8R3

 1
69217-60020B0

RZN21#

SILVER ME.,1D4

 1
69217-60020C0

RZN21#

BLACK,202

 1
69217-60020B1

RZN21#

DK.GRAY M.M.,1E9

 1
69217-60020A1

RZN21#

WHITE PEARL CS.,070

 1
69217-60020J0

RZN21#

DK.BLUE MC.,8Q0

 1
69217-60020F0

RZN21#

CHAMPAGNE M.M.,587

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-28070C1

KDN215,RZN21#,TRN21#,VZN21#

BLACK,202

 1
69211-28070J2

KDN215,RZN21#,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
69211-28070F2

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
69211-28070J1

KDN215,RZN21#,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
69211-28070A3

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
69211-28070B4

KDN215,RZN21#,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
69211-28070B0

KDN215,RZN21#,TRN21#,VZN21#

SILVER ME.,1D4

 1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
69242-60030

RZN21#

NO.2

 1
69241-28060

RZN21#

NO.1

 1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
69242-60030

RZN21#

NO.2

 1
69241-28060

RZN21#

NO.1

 1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
69242-60030

RZN21#

NO.2

 1
69241-28060

RZN21#

NO.1

 1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
69242-60030

RZN21#

NO.2

 1
69241-28060

RZN21#

NO.1

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69297-30030B2

RZN21#

DK.GRAY,TRIM1#,4#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69298-30030B2

RZN21#

DK.GRAY,TRIM1#,4#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

RZN21#

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

RZN21#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-60040

RZN21#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-60040

RZN21#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

RZN21#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

RZN21#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-35040

RZN21#

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-35040

RZN21#

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-35010

RZN21#

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-35010

RZN21#

 1
Common parts
90148-60022
90148-80066
90164-50031
90189-05003
