RZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

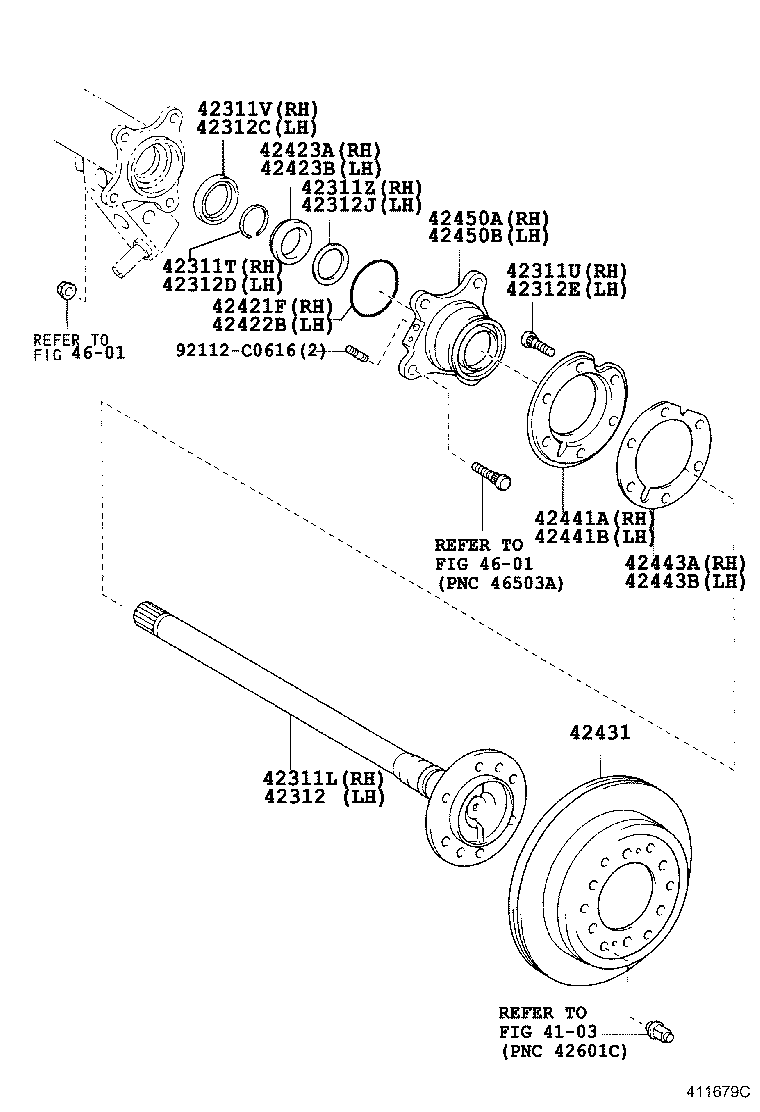

Click highlighted areas on diagram

diagram 4103 42311L 42311T 42311U 42311V 42311Z 42312 42312C 42312D 42312E 42312J 42421F 42422B 42423A 42423B 42431 42441A 42441B 42443A 42443B 42450A 42450B 4601 4601 92112C0616
Part # Description Qty Price
42311L - SHAFT, REAR AXLE, RH
42311-60240

RZN21#

 1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-41019

RZN21#

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02079

RZN21#

 6
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-58003

RZN21#

 1
42311Z - WASHER(FOR REAR AXLE SHAFT RH)
90208-44001

RZN21#

 1
42312 - SHAFT, REAR AXLE, LH
42311-60240

RZN21#

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-58003

RZN21#

 1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-41019

RZN21#

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02079

RZN21#

 6
42312J - WASHER (FOR REAR AXLE SHAFT LH)
90208-44001

RZN21#

 1
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-83002

RZN21#

 1
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-83002

RZN21#

 1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-60050

RZN21#

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-60050

RZN21#

 1
42431 - DISC, REAR
42431-60200

KDN215,RZN21#,TRN21#,VZN21#

 2
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-60060

RZN21#

 1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-60060

RZN21#

 1
42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-60010

RZN21#

 1
42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-60010

RZN21#

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-60050

KDN215,RZN21#,TRN21#,VZN21#

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42460-60010

KDN215,RZN21#,TRN21#,VZN21#

 1
Common parts
92112-C0616
Linked diagrams
4103
4601
