RZN215W-GKPGK (2002)
Toyota Hilux Surf

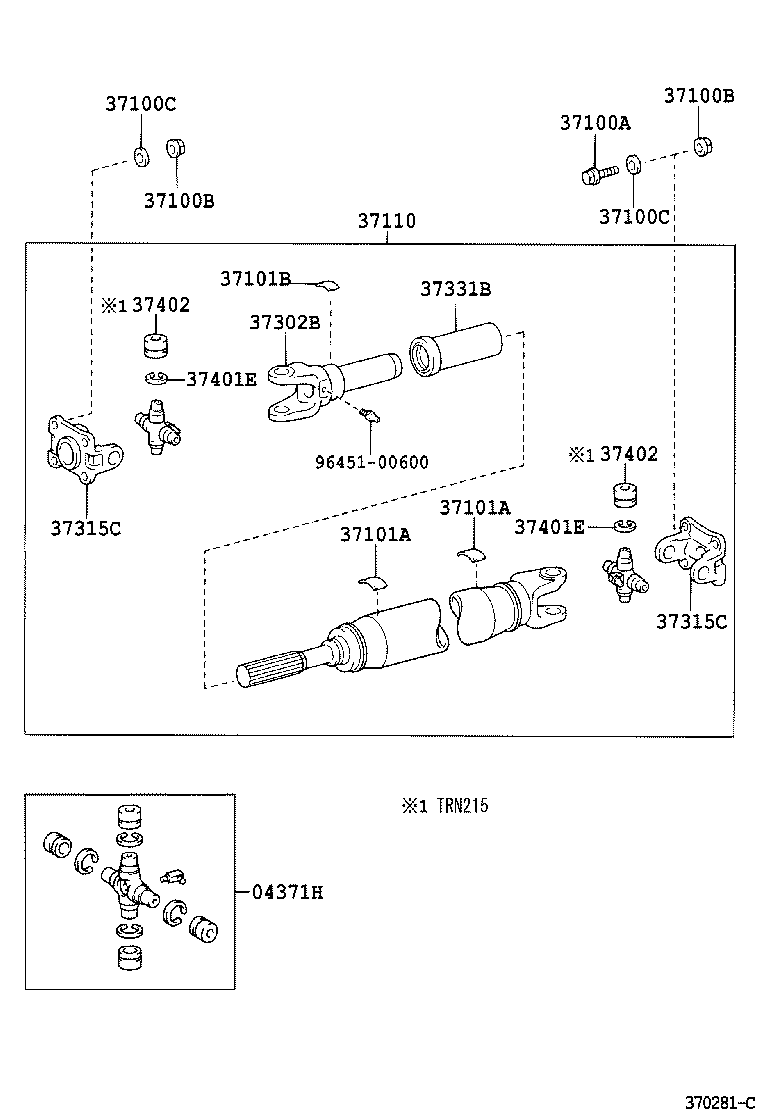

(0211-0508)KDN215,RZN215,TRN215,VZN215
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
KDN215,RZN215,VZN215 |
2 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11044 |
RZN215 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-11001 |
RZN215 |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-11001 |
RZN215 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
RZN215 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
RZN215 |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RZN21# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
RZN21# 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
RZN21# 18G,長さ=37.3 |
1 | ||
| 90937-01150 |
RZN21# 8G,長さ=16.6 |
1 | ||
| 90937-01132 |
RZN21# 10G,長さ=20.7 |
1 | ||
| 90937-01153 |
RZN21# 16G,長さ=33.2 |
1 | ||
| 90937-01149 |
RZN21# 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
RZN21# 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
RZN21# 24G,長さ=49.7 |
1 | ||
| 90937-01155 |
RZN21# 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
RZN21# 26G,長さ=53.9 |
1 | ||
| 90937-01204 |
RZN21# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01211 |
RZN21# 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01202 |
RZN21# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01203 |
RZN21# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01399 |
RZN21# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01147 |
RZN21# 2G,厚さ=2.0 |
1 | ||
| 90937-01205 |
RZN21# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
RZN21# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01152 |
RZN21# 14G,長さ=29.0 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01201 |
RZN21# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01208 |
RZN21# 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
RZN21# 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01401 |
RZN21# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01158 |
RZN21# 28G,長さ=58.1 |
1 | ||
| 90937-01400 |
RZN21# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01210 |
RZN21# 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01209 |
RZN21# 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01206 |
RZN21# 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RZN21# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
RZN21# 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
RZN21# 18G,長さ=37.3 |
1 | ||
| 90937-01150 |
RZN21# 8G,長さ=16.6 |
1 | ||
| 90937-01132 |
RZN21# 10G,長さ=20.7 |
1 | ||
| 90937-01153 |
RZN21# 16G,長さ=33.2 |
1 | ||
| 90937-01149 |
RZN21# 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
RZN21# 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
RZN21# 24G,長さ=49.7 |
1 | ||
| 90937-01155 |
RZN21# 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
RZN21# 26G,長さ=53.9 |
1 | ||
| 90937-01204 |
RZN21# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01211 |
RZN21# 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01202 |
RZN21# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01203 |
RZN21# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01399 |
RZN21# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01147 |
RZN21# 2G,厚さ=2.0 |
1 | ||
| 90937-01205 |
RZN21# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
RZN21# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01152 |
RZN21# 14G,長さ=29.0 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01201 |
RZN21# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01208 |
RZN21# 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
RZN21# 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01401 |
RZN21# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01158 |
RZN21# 28G,長さ=58.1 |
1 | ||
| 90937-01400 |
RZN21# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01210 |
RZN21# 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01209 |
RZN21# 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01206 |
RZN21# 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01271 |
RZN215 48G,長さ=24.6 |
1 | ||
| 90937-01273 |
RZN215 56G,長さ=28.7 |
1 | ||
| 90937-01272 |
RZN215 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
RZN215 60G,長さ=28.7 |
1 | ||
| 90937-01497 |
RZN215 6G,長さ=11 |
1 | ||
| 90937-01184 |
RZN215 4G,厚さ=1.6 |
1 | ||
| 90937-01498 |
RZN215 9G,長さ=13 |
1 | ||
| 90937-01505 |
RZN215 30G,長さ=21 |
1 | ||
| 90937-01500 |
RZN215 15G,長さ=21 |
1 | ||
| 90937-01502 |
RZN215 21G,長さ=19 |
1 | ||
| 90937-01503 |
RZN215 24G,長さ=21 |
1 | ||
| 90937-01499 |
RZN215 12G,長さ=17 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01508 |
RZN215 39G,長さ=22 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 90937-01509 |
RZN215 42G,長さ=24 |
1 | ||
| 90937-01501 |
RZN215 18G,長さ=17 |
1 | ||
| 90937-01510 |
RZN215 45G,長さ=25 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01507 |
RZN215 36G,長さ=24 |
1 | ||
| 90937-01504 |
RZN215 27G,長さ=19 |
1 | ||
| 90937-01506 |
RZN215 33G,長さ=22 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-6A490 |
RZN215 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
RZN215 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35060 |
RZN215 |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35060 |
RZN215 |
2 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-60030 |
RZN215 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
RZN215 厚さ=2.29,ﾏｰｸ 1 |
12 | ||
| 90520-25040 |
RZN215 厚さ=2.31,ﾏｰｸ 2 |
12 | ||
| 90520-25041 |
RZN215 厚さ=2.33,ﾏｰｸ無 |
12 | ||
| 90520-25042 |
RZN215 厚さ=2.35,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-25043 |
RZN215 厚さ=2.37,ﾌﾞﾙｰ |
12 | ||
| 90520-25044 |
RZN215 厚さ=2.39,ﾏｰｸ 6 |
12 | ||
| 90520-25046 |
RZN215 厚さ=2.43,ﾏｰｸ 8 |
12 | ||
| 90520-25047 |
RZN215 厚さ=2.45,ﾏｰｸ 9 |
12 | ||
| 90520-25045 |
RZN215 厚さ=2.41,ﾏｰｸ 7 |
12 | ||
| 90520-25050 |
RZN215 厚さ=2.51,ﾏｰｸ B |
12 | ||
| 90520-25049 |
RZN215 厚さ=2.49,ﾏｰｸ A |
12 | ||
| 90520-25048 |
RZN215 厚さ=2.47,ﾏｰｸ 10 |
12 | ||
| 90520-25052 |
RZN215 厚さ=2.55,ﾏｰｸ D |
12 | ||
| 90520-25055 |
RZN215 厚さ=2.21,ﾏｰｸ E |
12 | ||
| 90520-25054 |
RZN215 厚さ=2.19,ﾏｰｸ D |
12 | ||
| 90520-25053 |
RZN215 厚さ=2.57,ﾏｰｸ E |
12 | ||
| 90520-25056 |
RZN215 厚さ=2.23,ﾏｰｸ F |
12 | ||
| 90520-25057 |
RZN215 厚さ=2.25,ﾏｰｸ G |
12 | ||
| 90520-25058 |
RZN215 厚さ=2.27,ﾏｰｸ H |
12 | ||
| 90520-25051 |
RZN215 厚さ=2.53,ﾏｰｸ C |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
RZN215 厚さ=2.29,ﾏｰｸ 1 |
12 | ||
| 90520-25040 |
RZN215 厚さ=2.31,ﾏｰｸ 2 |
12 | ||
| 90520-25041 |
RZN215 厚さ=2.33,ﾏｰｸ無 |
12 | ||
| 90520-25042 |
RZN215 厚さ=2.35,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-25043 |
RZN215 厚さ=2.37,ﾌﾞﾙｰ |
12 | ||
| 90520-25044 |
RZN215 厚さ=2.39,ﾏｰｸ 6 |
12 | ||
| 90520-25046 |
RZN215 厚さ=2.43,ﾏｰｸ 8 |
12 | ||
| 90520-25047 |
RZN215 厚さ=2.45,ﾏｰｸ 9 |
12 | ||
| 90520-25045 |
RZN215 厚さ=2.41,ﾏｰｸ 7 |
12 | ||
| 90520-25050 |
RZN215 厚さ=2.51,ﾏｰｸ B |
12 | ||
| 90520-25049 |
RZN215 厚さ=2.49,ﾏｰｸ A |
12 | ||
| 90520-25048 |
RZN215 厚さ=2.47,ﾏｰｸ 10 |
12 | ||
| 90520-25052 |
RZN215 厚さ=2.55,ﾏｰｸ D |
12 | ||
| 90520-25055 |
RZN215 厚さ=2.21,ﾏｰｸ E |
12 | ||
| 90520-25054 |
RZN215 厚さ=2.19,ﾏｰｸ D |
12 | ||
| 90520-25053 |
RZN215 厚さ=2.57,ﾏｰｸ E |
12 | ||
| 90520-25056 |
RZN215 厚さ=2.23,ﾏｰｸ F |
12 | ||
| 90520-25057 |
RZN215 厚さ=2.25,ﾏｰｸ G |
12 | ||
| 90520-25058 |
RZN215 厚さ=2.27,ﾏｰｸ H |
12 | ||
| 90520-25051 |
RZN215 厚さ=2.53,ﾏｰｸ C |
12 | ||
| Common parts | ||||
| 96451-00600 | ||||

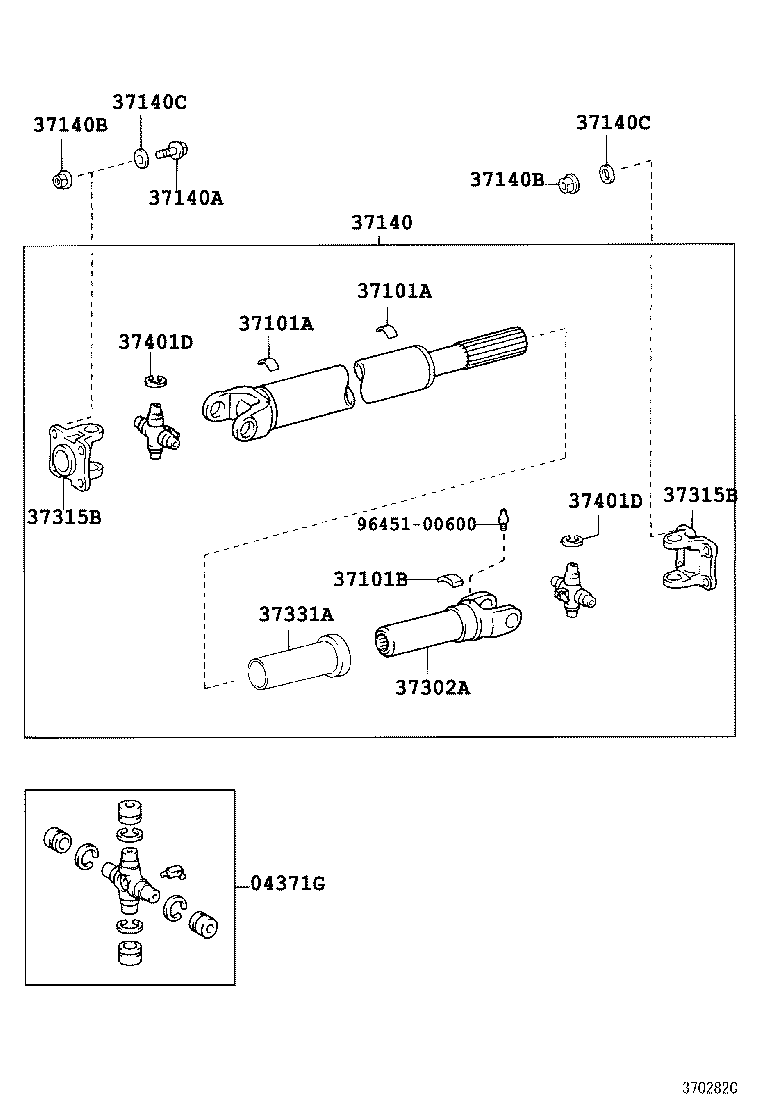

(0211-0508)KDN215,RZN215,TRN215,VZN215
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
KDN215,RZN215,TRN215,VZN215 |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RZN21# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
RZN21# 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
RZN21# 18G,長さ=37.3 |
1 | ||
| 90937-01150 |
RZN21# 8G,長さ=16.6 |
1 | ||
| 90937-01132 |
RZN21# 10G,長さ=20.7 |
1 | ||
| 90937-01153 |
RZN21# 16G,長さ=33.2 |
1 | ||
| 90937-01149 |
RZN21# 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
RZN21# 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
RZN21# 24G,長さ=49.7 |
1 | ||
| 90937-01155 |
RZN21# 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
RZN21# 26G,長さ=53.9 |
1 | ||
| 90937-01204 |
RZN21# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01211 |
RZN21# 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01202 |
RZN21# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01203 |
RZN21# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01399 |
RZN21# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01147 |
RZN21# 2G,厚さ=2.0 |
1 | ||
| 90937-01205 |
RZN21# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
RZN21# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01152 |
RZN21# 14G,長さ=29.0 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01201 |
RZN21# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01208 |
RZN21# 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
RZN21# 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01401 |
RZN21# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01158 |
RZN21# 28G,長さ=58.1 |
1 | ||
| 90937-01400 |
RZN21# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01210 |
RZN21# 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01209 |
RZN21# 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01206 |
RZN21# 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RZN21# 20G,長さ=41.4 |
1 | ||
| 90937-01148 |
RZN21# 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
RZN21# 18G,長さ=37.3 |
1 | ||
| 90937-01150 |
RZN21# 8G,長さ=16.6 |
1 | ||
| 90937-01132 |
RZN21# 10G,長さ=20.7 |
1 | ||
| 90937-01153 |
RZN21# 16G,長さ=33.2 |
1 | ||
| 90937-01149 |
RZN21# 6G,長さ=12.4 |
1 | ||
| 90937-01151 |
RZN21# 12G,長さ=24.9 |
1 | ||
| 90937-01156 |
RZN21# 24G,長さ=49.7 |
1 | ||
| 90937-01155 |
RZN21# 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
RZN21# 26G,長さ=53.9 |
1 | ||
| 90937-01204 |
RZN21# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01211 |
RZN21# 50G,厚さ=4.5,長さ=45.7 |
1 | ||
| 90937-01202 |
RZN21# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01203 |
RZN21# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01399 |
RZN21# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01147 |
RZN21# 2G,厚さ=2.0 |
1 | ||
| 90937-01205 |
RZN21# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
RZN21# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01152 |
RZN21# 14G,長さ=29.0 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01201 |
RZN21# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01208 |
RZN21# 44G,厚さ=4.5,長さ=40.2 |
1 | ||
| 90937-01207 |
RZN21# 42G,厚さ=4.5,長さ=38.4 |
1 | ||
| 90937-01401 |
RZN21# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01158 |
RZN21# 28G,長さ=58.1 |
1 | ||
| 90937-01400 |
RZN21# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01210 |
RZN21# 48G,厚さ=4.5,長さ=43.8 |
1 | ||
| 90937-01209 |
RZN21# 46G,厚さ=4.5,長さ=42.0 |
1 | ||
| 90937-01206 |
RZN21# 40G,厚さ=4.5,長さ=36.5 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01271 |
RZN215 48G,長さ=24.6 |
1 | ||
| 90937-01273 |
RZN215 56G,長さ=28.7 |
1 | ||
| 90937-01272 |
RZN215 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
RZN215 60G,長さ=28.7 |
1 | ||
| 90937-01497 |
RZN215 6G,長さ=11 |
1 | ||
| 90937-01184 |
RZN215 4G,厚さ=1.6 |
1 | ||
| 90937-01498 |
RZN215 9G,長さ=13 |
1 | ||
| 90937-01505 |
RZN215 30G,長さ=21 |
1 | ||
| 90937-01500 |
RZN215 15G,長さ=21 |
1 | ||
| 90937-01502 |
RZN215 21G,長さ=19 |
1 | ||
| 90937-01503 |
RZN215 24G,長さ=21 |
1 | ||
| 90937-01499 |
RZN215 12G,長さ=17 |
1 | ||
| 90937-01396 |
RZN215 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01508 |
RZN215 39G,長さ=22 |
1 | ||
| 90937-01398 |
RZN215 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 90937-01509 |
RZN215 42G,長さ=24 |
1 | ||
| 90937-01501 |
RZN215 18G,長さ=17 |
1 | ||
| 90937-01510 |
RZN215 45G,長さ=25 |
1 | ||
| 90937-01397 |
RZN215 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01507 |
RZN215 36G,長さ=24 |
1 | ||
| 90937-01504 |
RZN215 27G,長さ=19 |
1 | ||
| 90937-01506 |
RZN215 33G,長さ=22 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-60410 |
RZN215 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-11044 |
RZN215 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-11001 |
RZN215 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-11001 |
RZN215 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-11013 |
RZN215 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-11013 |
RZN215 |
8 | ||
| 37302A - YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
RZN215 |
1 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35060 |
RZN215 |
2 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35060 |
RZN215 |
2 | ||
| 37331A - COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUS | ||||
| 37305-60030 |
RZN215 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-25042 |
RZN215 厚さ=2.35,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-25040 |
RZN215 厚さ=2.31,ﾏｰｸ 2 |
12 | ||
| 90520-25039 |
RZN215 厚さ=2.29,ﾏｰｸ 1 |
12 | ||
| 90520-25041 |
RZN215 厚さ=2.33,ﾏｰｸ無 |
12 | ||
| 90520-25043 |
RZN215 厚さ=2.37,ﾌﾞﾙｰ |
12 | ||
| 90520-25047 |
RZN215 厚さ=2.45,ﾏｰｸ 9 |
12 | ||
| 90520-25044 |
RZN215 厚さ=2.39,ﾏｰｸ 6 |
12 | ||
| 90520-25045 |
RZN215 厚さ=2.41,ﾏｰｸ 7 |
12 | ||
| 90520-25049 |
RZN215 厚さ=2.49,ﾏｰｸ A |
12 | ||
| 90520-25046 |
RZN215 厚さ=2.43,ﾏｰｸ 8 |
12 | ||
| 90520-25054 |
RZN215 厚さ=2.19,ﾏｰｸ D |
12 | ||
| 90520-25050 |
RZN215 厚さ=2.51,ﾏｰｸ B |
12 | ||
| 90520-25053 |
RZN215 厚さ=2.57,ﾏｰｸ E |
12 | ||
| 90520-25051 |
RZN215 厚さ=2.53,ﾏｰｸ C |
12 | ||
| 90520-25052 |
RZN215 厚さ=2.55,ﾏｰｸ D |
12 | ||
| 90520-25057 |
RZN215 厚さ=2.25,ﾏｰｸ G |
12 | ||
| 90520-25056 |
RZN215 厚さ=2.23,ﾏｰｸ F |
12 | ||
| 90520-25058 |
RZN215 厚さ=2.27,ﾏｰｸ H |
12 | ||
| 90520-25048 |
RZN215 厚さ=2.47,ﾏｰｸ 10 |
12 | ||
| 90520-25055 |
RZN215 厚さ=2.21,ﾏｰｸ E |
12 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-25042 |
RZN215 厚さ=2.35,ﾌﾞﾗｳﾝ |
12 | ||
| 90520-25040 |
RZN215 厚さ=2.31,ﾏｰｸ 2 |
12 | ||
| 90520-25039 |
RZN215 厚さ=2.29,ﾏｰｸ 1 |
12 | ||
| 90520-25041 |
RZN215 厚さ=2.33,ﾏｰｸ無 |
12 | ||
| 90520-25043 |
RZN215 厚さ=2.37,ﾌﾞﾙｰ |
12 | ||
| 90520-25047 |
RZN215 厚さ=2.45,ﾏｰｸ 9 |
12 | ||
| 90520-25044 |
RZN215 厚さ=2.39,ﾏｰｸ 6 |
12 | ||
| 90520-25045 |
RZN215 厚さ=2.41,ﾏｰｸ 7 |
12 | ||
| 90520-25049 |
RZN215 厚さ=2.49,ﾏｰｸ A |
12 | ||
| 90520-25046 |
RZN215 厚さ=2.43,ﾏｰｸ 8 |
12 | ||
| 90520-25054 |
RZN215 厚さ=2.19,ﾏｰｸ D |
12 | ||
| 90520-25050 |
RZN215 厚さ=2.51,ﾏｰｸ B |
12 | ||
| 90520-25053 |
RZN215 厚さ=2.57,ﾏｰｸ E |
12 | ||
| 90520-25051 |
RZN215 厚さ=2.53,ﾏｰｸ C |
12 | ||
| 90520-25052 |
RZN215 厚さ=2.55,ﾏｰｸ D |
12 | ||
| 90520-25057 |
RZN215 厚さ=2.25,ﾏｰｸ G |
12 | ||
| 90520-25056 |
RZN215 厚さ=2.23,ﾏｰｸ F |
12 | ||
| 90520-25058 |
RZN215 厚さ=2.27,ﾏｰｸ H |
12 | ||
| 90520-25048 |
RZN215 厚さ=2.47,ﾏｰｸ 10 |
12 | ||
| 90520-25055 |
RZN215 厚さ=2.21,ﾏｰｸ E |
12 | ||
| Common parts | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
