RZN215W-GKPGK (2002)
Toyota Hilux Surf
Production
Nov 2002
-
Aug 2004
Engine
3RZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0211-0408)RZN21#

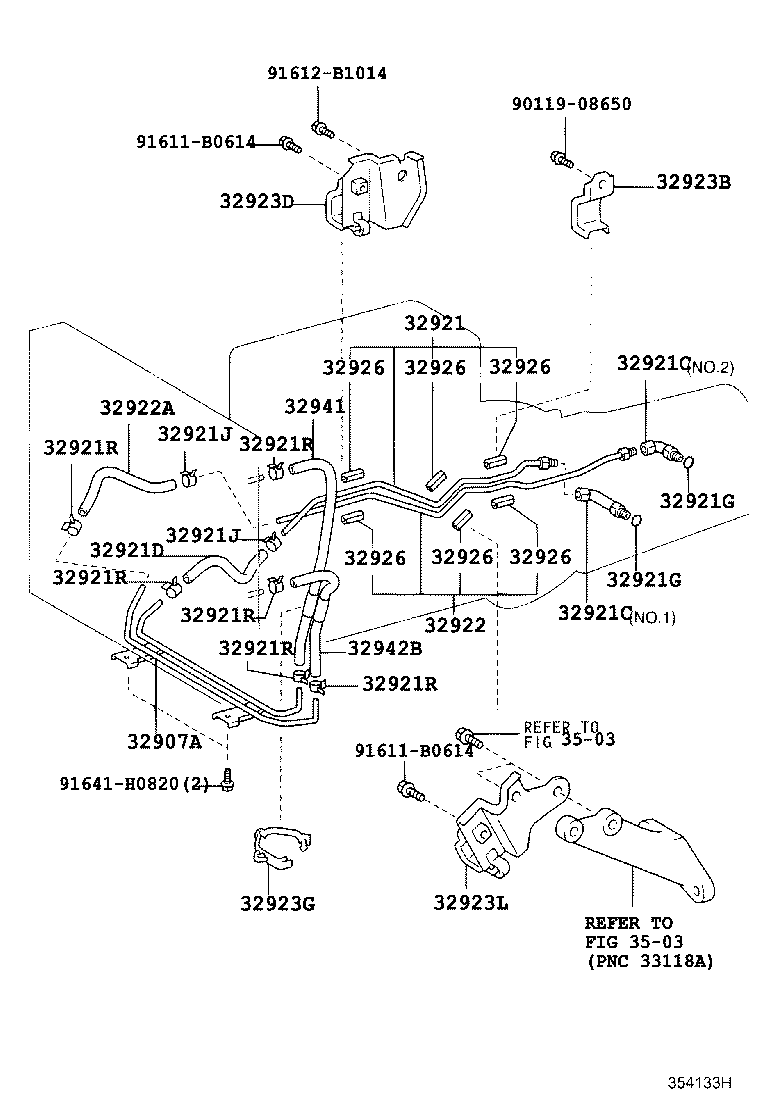

Click highlighted areas on diagram
A343E,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907A - TUBE, OIL COOLER | ||||
| 32907-60070 |
RZN21# |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60340 |
RZN21# |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
RZN21# NO.2 |
1 | ||
| 90407-16012 |
RZN21# NO.1 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16012 |
RZN21# NO.1 |
1 | ||
| 90407-16009 |
RZN21# NO.2 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22360 |
RZN21# |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RZN21# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RZN21# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21# |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
RZN21#,TRN21#,VZN21# |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60360 |
RZN21# |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-22360 |
RZN21# |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
RZN21# |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32909-34040 |
RZN21# |
1 | ||
| 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 | ||||
| 32928-60100 |
RZN21# |
1 | ||
| 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32909-35170 |
RZN21# |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN21#,TRN21# 長さ=35,内径=10 |
6 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-60280 |
RZN21# |
1 | ||
| 32942B - HOSE, OIL COOLER OUTLET, NO.3 | ||||
| 32942-60390 |
RZN21# |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 91611-B0614 | ||||
| 91612-B1014 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 3503 | ||||
