RZN215W-GKPGK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )1KDFTV,3RZFE,2TRFE,5VZFE

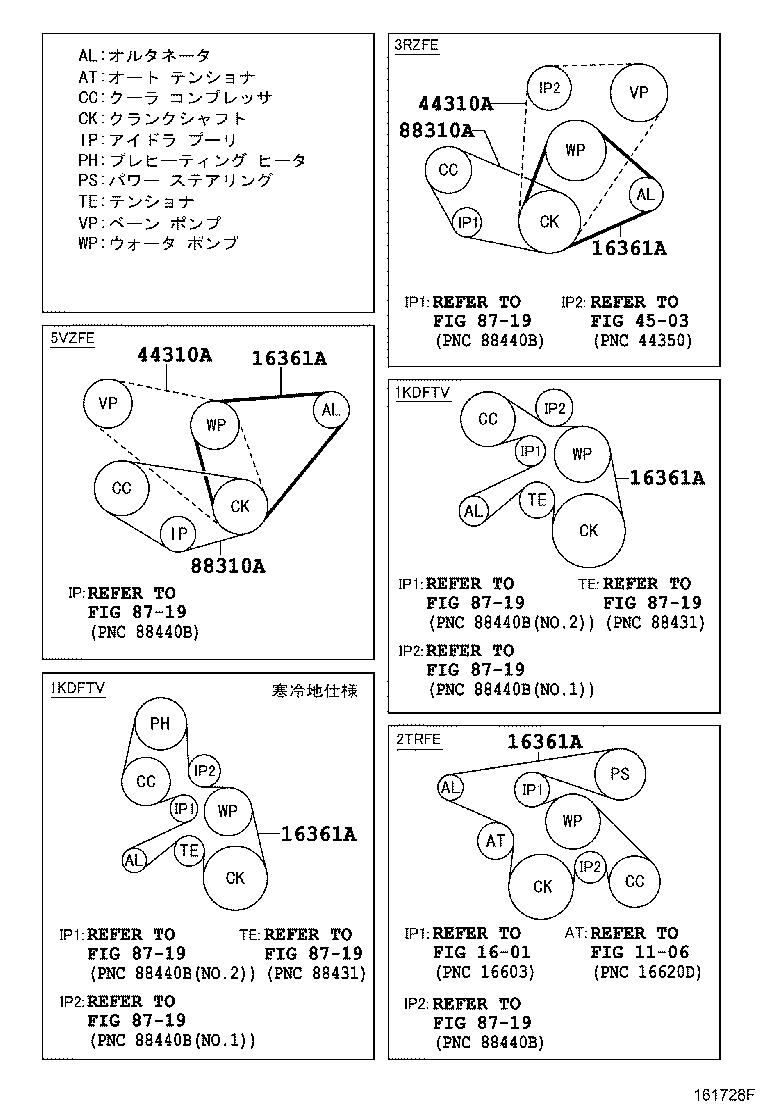

Click highlighted areas on diagram

diagram 1106 1601 16361A 16361A 16361A 16361A 16361A 44310A 44310A 4503 8719 8719 8719 8719 8719 8719 8719 8719 8719 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

3RZFE..RZN21#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

3RZFE..RZN21#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

3RZFE..RZN21#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

3RZFE..RZN21#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

3RZFE..RZN21#

 1
44310A - BELT, V(FOR VANE PUMP)
99364-31110

RZN21#

長さ=1110

 1
44310A - BELT, V(FOR VANE PUMP)
99364-31110

RZN21#

長さ=1110

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-30940

RZN21#

長さ=940

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-30940

RZN21#

長さ=940

 1
Linked diagrams
1106
1601
4503
8719
