RZN210W-GKPXK (2002)
Toyota Hilux Surf
(0211-0508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86010 - TUNER ASSY, TELEVISION | ||||
| 86010-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86010-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86029A - BRACKET SET, TELEVISION, NO.1 | ||||
| 86029-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),NOD2 |
1 | ||
| 86029-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,NOD1 |
1 | ||
| 86029-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,NOD2 |
1 | ||
| 86029-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),NOD1 |
1 | ||
| 86029A - BRACKET SET, TELEVISION, NO.1 | ||||
| 86029-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),NOD2 |
1 | ||
| 86029-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,NOD1 |
1 | ||
| 86029-35020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ,NOD2 |
1 | ||
| 86029-35010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV),NOD1 |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-35010 |
KDN215,RZN21#,TRN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86117-35010 |
RZN21#;KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-35010 |
RZN21#;KDN215,TRN215,VZN215..SSRG ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86118-35010 |
KDN215,RZN21#,TRN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-35250 |
KDN215,RZN21#,VZN21# FUJITSU TEN,ID=16039,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAuX(AM/FM/MD/CD/TV) |
1 | ||
| 86120-35210 |
KDN215,RZN21#,VZN21# FUJITSU TEN,ID=16038,ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM^FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-44020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86271-44020 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86271-44021 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86271-44021 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86271-44022 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| 86271-44022 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-44010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV) |
1 | ||
| 86841-44010 |
KDN215,RZN21#,VZN21# ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90153-50012 | ||||
| 91631-J0612 | ||||

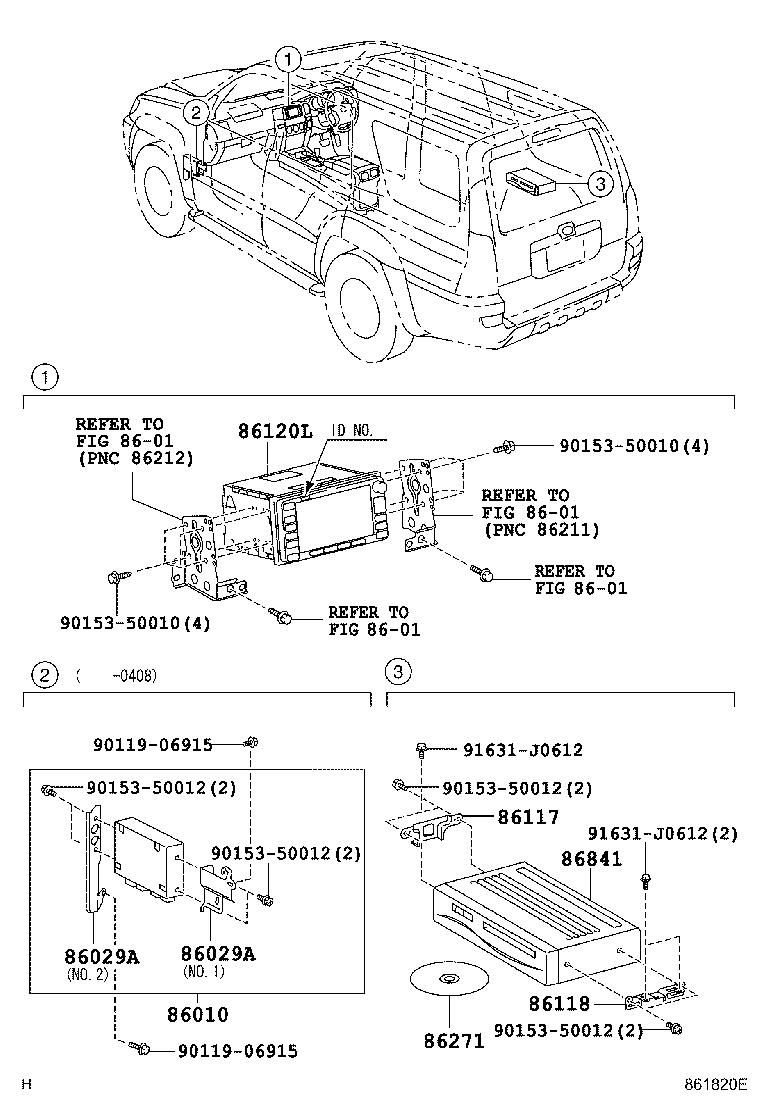

| Linked diagrams | ||||
| 8601 | ||||
