RZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

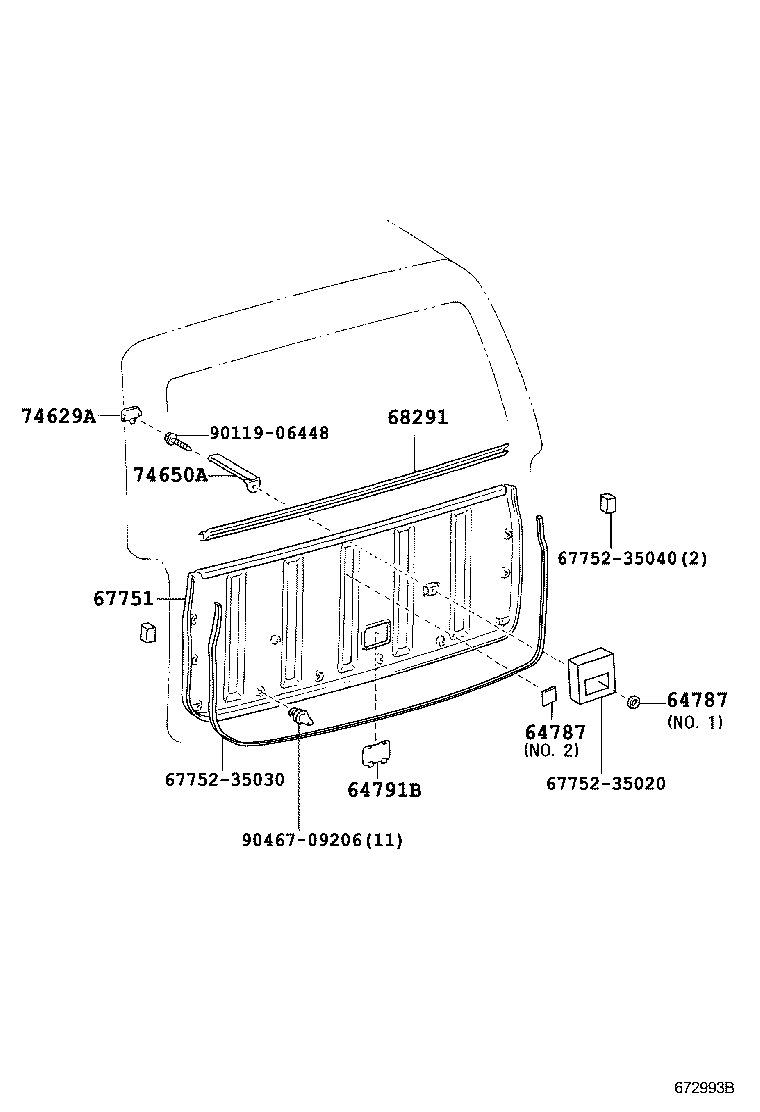

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 64787 64787 64791B 67751 6775235020 6775235030 6775235040 68291 74629A 74650A 9011906448 9046709206
Part # Description Qty Price
64787 - PAD, BACK DOOR TRIM
64787-35020

RZN21#

NO.1

 1
64788-35010

RZN21#

NO.2

 1
64787 - PAD, BACK DOOR TRIM
64787-35020

RZN21#

NO.1

 1
64788-35010

RZN21#

NO.2

 1
64791B - COVER, BACK DOOR TRIM
64791-35010B0

RZN21#

STONE,TRIM1#

 1
64791-35010E0

RZN21#

FAWN,TRIM4#

 1
67751 - BOARD, BACK DOOR TRIM
64781-35020E0

RZN21#

FAWN,TRIM4#

 1
64781-35020B0

RZN21#

STONE,TRIM1#

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-35020

KDN215,RZN21#,VZN21#

 1
68291-35021

RZN21#

 1
74629A - COVER, ASSIST STRAP HOLE
74629-35020B0

RZN21#

STONE,TRIM1#

 1
74629-35020E0

RZN21#

FAWN,TRIM4#

 1
74650A - STRAP ASSY, ASSIST
74650-35030B0

RZN21#

GRAY,TRIM1#

 1
74650-35030E0

RZN21#

FAWN,TRIM4#

 1
Common parts
67752-35020
67752-35030
67752-35040
90119-06448
90467-09206

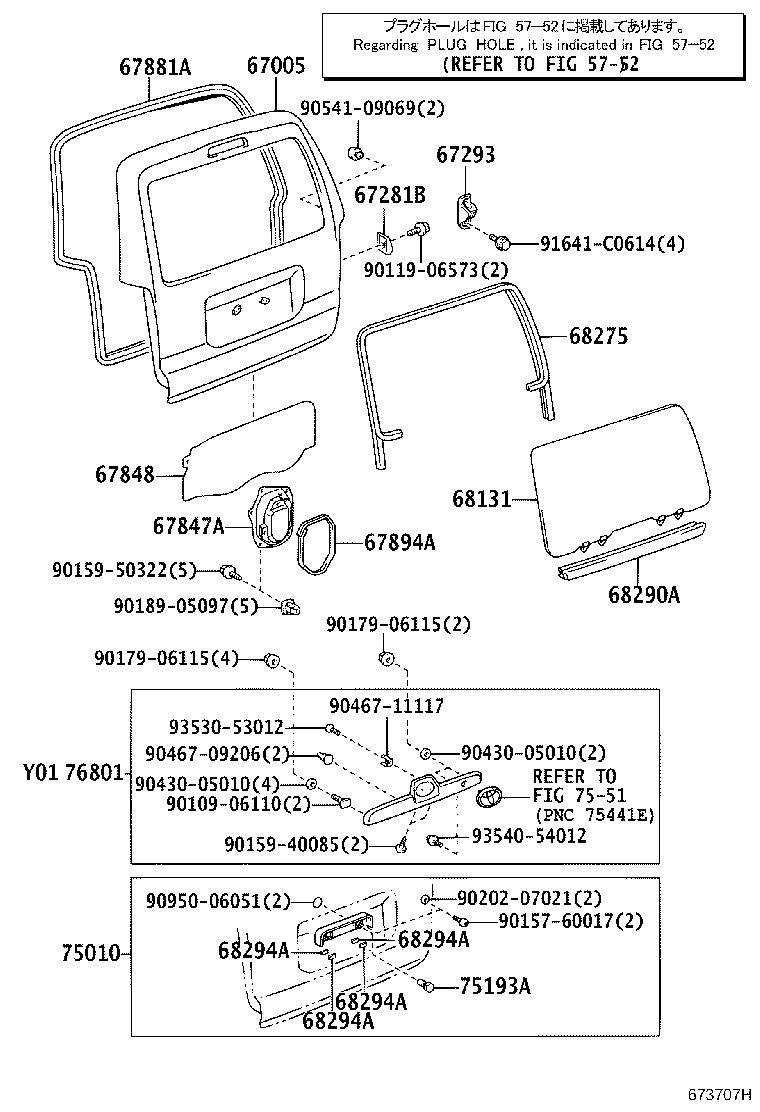

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 5752 67005 67281B 67293 67847A 67848 67881A 67894A 68131 68275 68290A 68294A 68294A 68294A 68294A 75010 75193A 7551 76801 9010906110 9011906573 9015760017 9015940085 9015950322 9017906115 9017906115 9018905097 9020207021 9043005010 9043005010 9046709206 9046711117 9054109069 9095006051 91641C0614 9353053012 9354054012
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-35270

KDN215,RZN21#,VZN21#..SSRX

有り(ﾘﾔｱﾝﾀﾞｰﾐﾗｰ)

 1
67005-35300

KDN215,RZN21#,VZN21#..SSRX

ﾘﾔｽﾎﾟｲﾗ−有り&有り(ﾘﾔｱﾝﾀﾞｰﾐﾗｰ)

 1
67005-35260

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り

 1
67005-35220

RZN21#..SSRX

 1
67005-35240

RZN21#..SSRX

ﾘﾔｽﾎﾟｲﾗ−有り

 1
67005-35290

RZN21#..SSRX

ﾘﾔｽﾎﾟｲﾗ−有り&ﾊﾞｯｸﾓﾆﾀ−有り

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-35020

RZN21#

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-35020

RZN21#

右側

 1
67294-35010

RZN21#

左側

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-35020

RZN21#

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-35020

RZN21#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-35030

RZN21#

 1
67894A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-35020

RZN21#

 1
68131 - GLASS, BACK DOOR
68150-35270

RZN21#

*TT,厚さ=3.5,ｸﾞﾚｰ

 1
68275 - RUN, BACK DOOR GLASS
68275-35020

RZN21#

 1
68290A - WEATHERSTRIP ASSY, BACK DOOR GLASS, OUTER
68290-35031

RZN21#

 1
68290-35030

KDN215,RZN21#,VZN21#

 1
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-44030

RZN21#

 4
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-44030

RZN21#

 4
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-44030

RZN21#

 4
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-44030

RZN21#

 4
75010 - FRAME, REAR LICENSE PLATE
75010-35010

RZN21#

 1
75193A - HOLDER, REAR LICENSE PLATE
75193-44010

RZN21#

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-35380B1

RZN21#..SSRX

DK.GRAY M.M.,1E9

 1
76801-35410A0

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,WHITE PEARL CS.,070

 1
76801-35380A0

RZN21#..SSRX

WHITE PEARL CS.,070

 1
76801-35380B0

RZN21#..SSRX

SILVER ME.,1D4

 1
76801-35380J1

RZN21#..SSRX

GRAYISH BLUE ME.,8R3

 1
76801-35380C0

RZN21#..SSRX

BLACK,202

 1
76801-35410B1

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,DK.GRAY M.M.,1E9

 1
76801-35380F0

RZN21#..SSRX

CHAMPAGNE M.M.,587

 1
76801-35380J0

RZN21#..SSRX

DK.BLUE MC.,8Q0

 1
76801-35410F0

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,CHAMPAGNE M.M.,587

 1
76801-35410J1

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,GRAYISH BLUE ME.,8R3

 1
76801-35410B0

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,SILVER ME.,1D4

 1
76801-35410J0

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,DK.BLUE MC.,8Q0

 1
76801-35410C0

RZN21#..SSRX

ﾊﾞｯｸﾓﾆﾀ−有り,BLACK,202

 1
Common parts
90109-06110
90119-06573
90157-60017
90159-40085
90159-50322
90179-06115
90189-05097
90202-07021
90430-05010
90467-09206
90467-11117
90541-09069
90950-06051
91641-C0614
93530-53012
93540-54012
Linked diagrams
5752
7551
