RZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

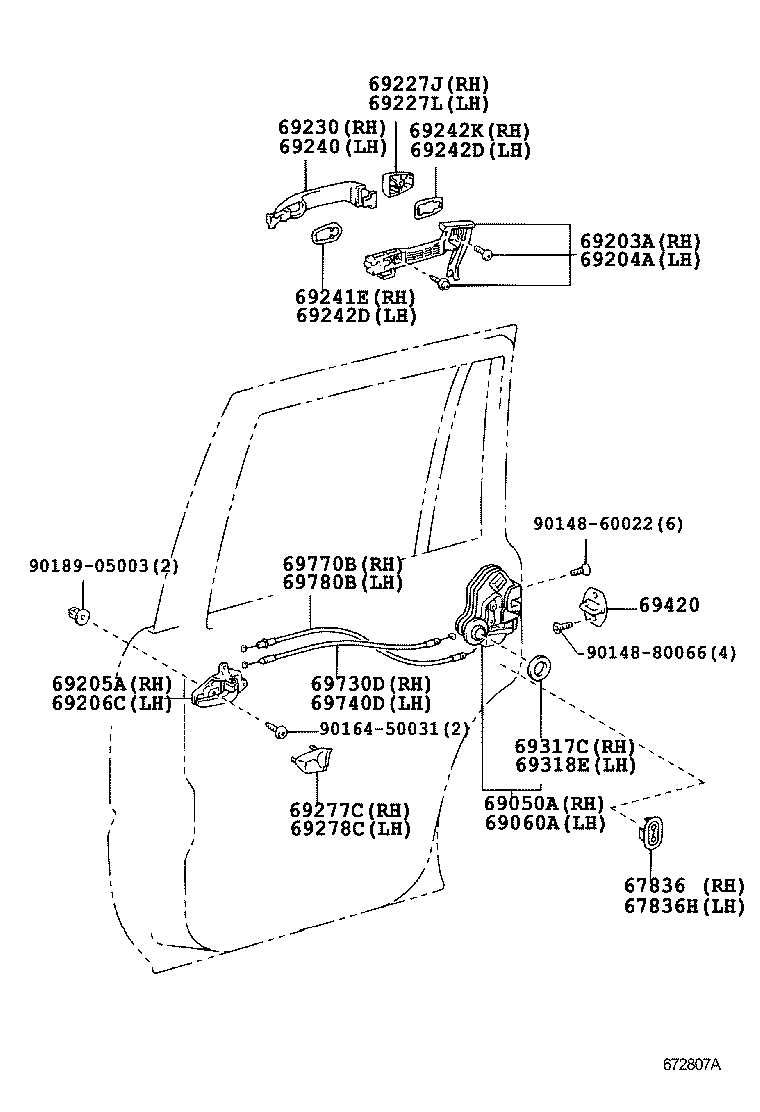

Click highlighted areas on diagram

diagram 67836 67836H 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241E 69242D 69242D 69242K 69277C 69278C 69317C 69318E 69420 69730D 69740D 69770B 69780B 9014860022 9014880066 9016450031 9018905003
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

RZN21#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

RZN21#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-60090

RZN21#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-60090

RZN21#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-60010

RZN21#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-60010

RZN21#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-44020B1

RZN21#

DK.GRAY,TRIM1#,4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-44020B1

RZN21#

DK.GRAY,TRIM1#,4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-60020A1

RZN21#

WHITE PEARL CS.,070

 1
69227-60020C0

RZN21#

BLACK,202

 1
69227-60020B0

RZN21#

SILVER ME.,1D4

 1
69227-60020F0

RZN21#

CHAMPAGNE M.M.,587

 1
69227-60020J0

RZN21#

DK.BLUE MC.,8Q0

 1
69227-60020B1

RZN21#

DK.GRAY M.M.,1E9

 1
69227-60020J1

RZN21#

GRAYISH BLUE ME.,8R3

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-60020A1

RZN21#

WHITE PEARL CS.,070

 1
69227-60020C0

RZN21#

BLACK,202

 1
69227-60020B0

RZN21#

SILVER ME.,1D4

 1
69227-60020J1

RZN21#

GRAYISH BLUE ME.,8R3

 1
69227-60020B1

RZN21#

DK.GRAY M.M.,1E9

 1
69227-60020J0

RZN21#

DK.BLUE MC.,8Q0

 1
69227-60020F0

RZN21#

CHAMPAGNE M.M.,587

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-28070C1

RZN21#

BLACK,202

 1
69211-28070A3

RZN21#

WHITE PEARL CS.,070

 1
69211-28070B0

RZN21#

SILVER ME.,1D4

 1
69211-28070F2

RZN21#

CHAMPAGNE M.M.,587

 1
69211-28070J1

RZN21#

DK.BLUE MC.,8Q0

 1
69211-28070J2

RZN21#

GRAYISH BLUE ME.,8R3

 1
69211-28070B4

RZN21#

DK.GRAY M.M.,1E9

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-28070B0

KDN215,RZN21#,TRN21#,VZN21#

SILVER ME.,1D4

 1
69211-28070J2

KDN215,RZN21#,TRN21#,VZN21#

GRAYISH BLUE ME.,8R3

 1
69211-28070A3

KDN215,RZN21#,TRN21#,VZN21#

WHITE PEARL CS.,070

 1
69211-28070C1

KDN215,RZN21#,TRN21#,VZN21#

BLACK,202

 1
69211-28070J1

KDN215,RZN21#,TRN21#,VZN21#

DK.BLUE MC.,8Q0

 1
69211-28070B4

KDN215,RZN21#,TRN21#,VZN21#

DK.GRAY M.M.,1E9

 1
69211-28070F2

KDN215,RZN21#,TRN21#,VZN21#

CHAMPAGNE M.M.,587

 1
69241E - PAD, REAR DOOR OUTSIDE HANDLE, RH
69241-28060

RZN21#

 1
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69242-60030

RZN21#

ﾘﾔ

 1
69241-28060

RZN21#

ﾌﾛﾝﾄ

 1
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69242-60030

RZN21#

ﾘﾔ

 1
69241-28060

RZN21#

ﾌﾛﾝﾄ

 1
69242K - PAD, REAR DOOR OUTSIDE HANDLE, RH
69242-60030

RZN21#

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69297-30030B2

RZN21#

DK.GRAY,TRIM1#,4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69298-30030B2

RZN21#

DK.GRAY,TRIM1#,4#

 1
69317C - SEAL, DOOR LOCK WIRING HARNESS, RH
69318-51010

RZN21#

 1
69318E - SEAL, DOOR LOCK WIRING HARNESS, LH
69318-51010

RZN21#

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

RZN21#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-35020

RZN21#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-35020

RZN21#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-35010

RZN21#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-35010

RZN21#

 1
Common parts
90148-60022
90148-80066
90164-50031
90189-05003
