RZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )KDN215,RZN21#,TRN21#,VZN21#

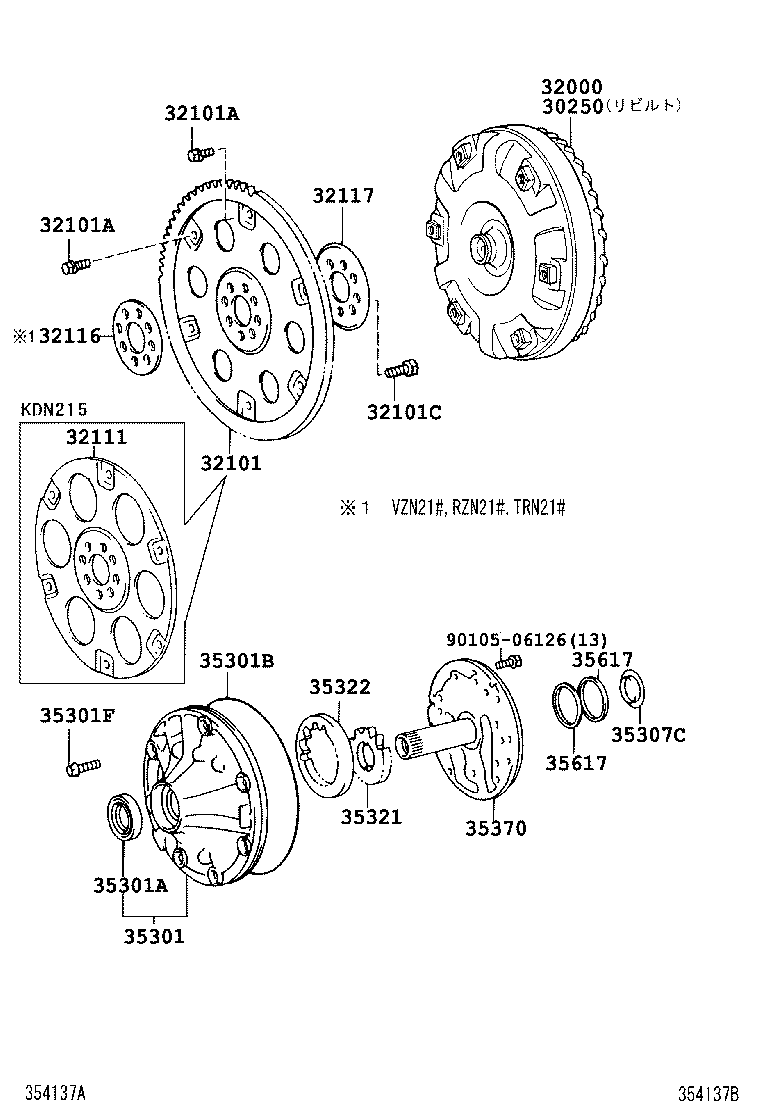

Click highlighted areas on diagram

A343E,A343F

diagram 30250 32000 32101 32101A 32101A 32101C 32111 32116 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-26080

RZN21#

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-26010

RZN21#

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09026

RZN21#

*9−1.25PX12.8−9,ｸﾞﾘｰﾝ

 1
90119-09027

RZN21#

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09026

RZN21#

*9−1.25PX12.8−9,ｸﾞﾘｰﾝ

 1
90119-09027

RZN21#

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10276

RZN21#

*10−1.25PX30−17.5

 10
32116 - SPACER, DRIVE PLATE, FRONT
32116-26010

RZN21#

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-26010

RZN21#

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010

RZN21#

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38087

RZN21#

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

RZN21#

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

RZN21#

*8−1.25PX35−35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30340

RZN21#

厚さ=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12020

RZN21#,VZN21#

厚さ=10.690−10.699

 1
35321-12030

RZN21#,VZN21#

厚さ=10.700−10.709

 1
35321-12040

RZN21#,VZN21#

厚さ=10.710−10.720

 1
35321-12060

RZN21#,VZN21#

厚さ=10.731−10.740

 1
35321-12050

RZN21#,VZN21#

厚さ=10.721−10.730

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12020

RZN21#,VZN21#

厚さ=10.700−10.709

 1
35322-12050

RZN21#,VZN21#

厚さ=10.731−10.740

 1
35322-12010

RZN21#,VZN21#

厚さ=10.690−10.699

 1
35322-12040

RZN21#,VZN21#

厚さ=10.721−10.730

 1
35322-12030

RZN21#,VZN21#

厚さ=10.710−10.720

 1
35370 - SHAFT ASSY, STATOR
35370-30031

RZN21#

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

RZN21#

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

RZN21#

 2
Common parts
90105-06126
