RZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )3RZFE

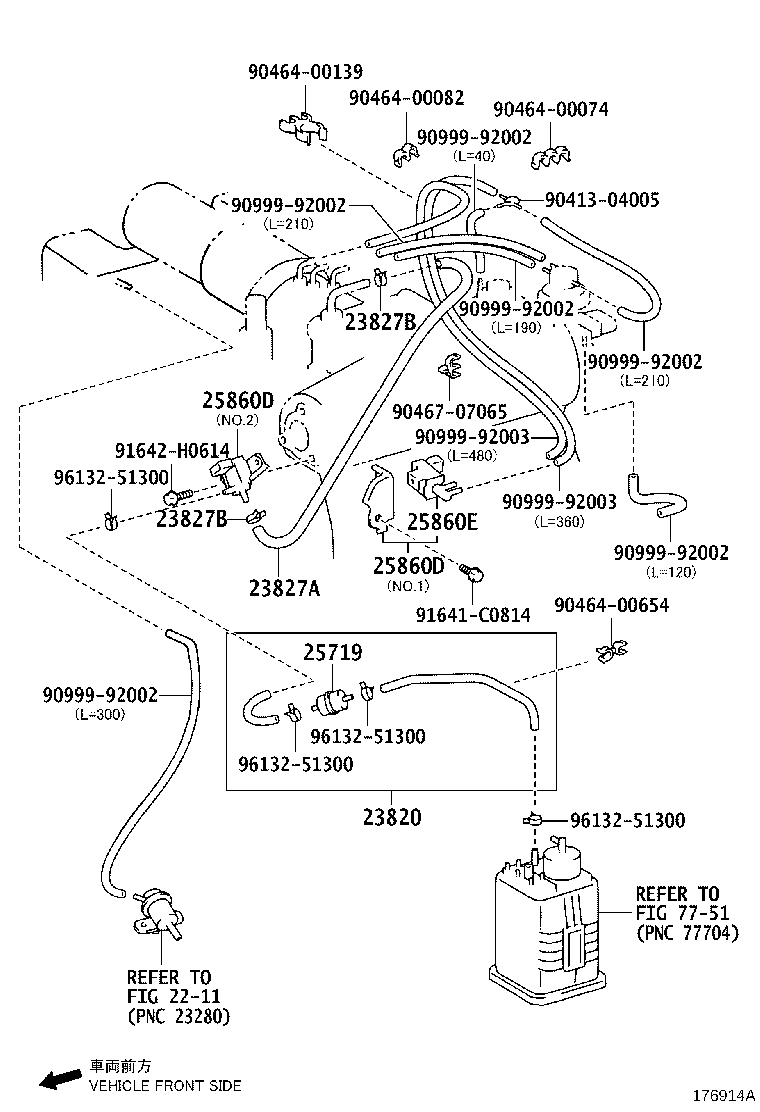

Click highlighted areas on diagram

diagram 2211 23820 23827A 23827B 23827B 25719 25860D 25860D 25860E 7751 9041304005 9046400074 9046400082 9046400139 9046400654 9046707065 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 91641C0814 91642H0614 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-75090

3RZFE..RZN21#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75270

3RZFE..RZN21#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

3RZFE..RZN21#

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

3RZFE..RZN21#

 2
25719 - TANK, VACUUM SURGE
25719-50040

3RZFE..RZN21#

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060

3RZFE..RZN21#

NO.1

 1
25860-75260

3RZFE..RZN21#

NO.2

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060

3RZFE..RZN21#

NO.1

 1
25860-75260

3RZFE..RZN21#

NO.2

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12065

3RZFE..RZN21#

 1
Common parts
90413-04005
90464-00074
90464-00082
90464-00139
90464-00654
90467-07065
90999-92002
90999-92003
91641-C0814
91642-H0614
96132-51300
Linked diagrams
2211
7751
