RZN210W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

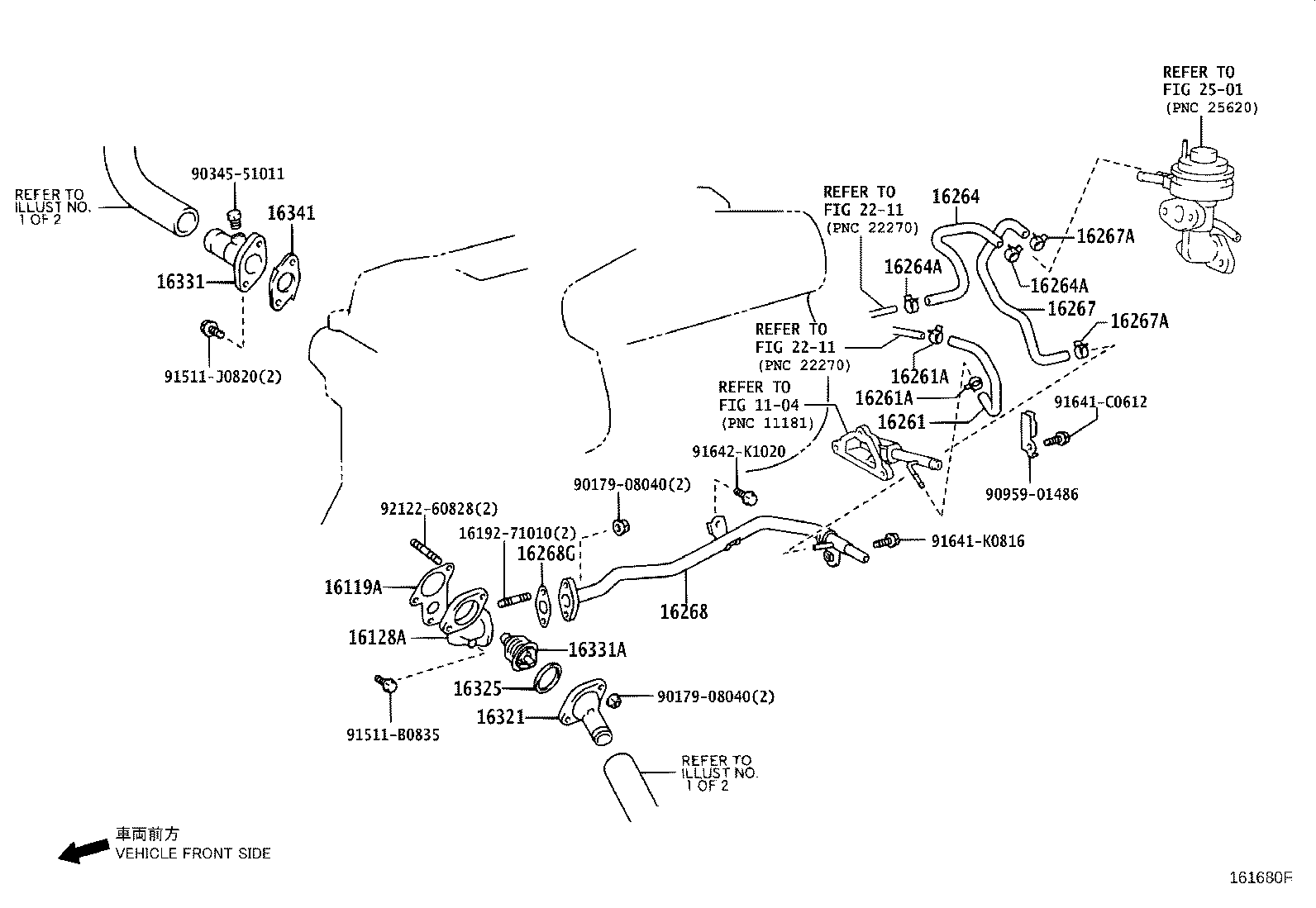

ILLUST NO. 2 OF 2(0211- )3RZFE

Click highlighted areas on diagram

diagram 1104 16119A 16128A 1619271010 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16268 16268G 16321 16325 16331 16331A 16341 2211 2211 2501 9017908040 9017908040 9034551011 9095901486 91511B0835 91511J0820 91641C0612 91641K0816 91642K1020 9212260828
Part # Description Qty Price
16119A - GASKET, THERMOSTAT GUIDE
16119-75020

3RZFE..RZN21#

 1
16128A - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-75020

3RZFE..RZN21#

 1
16261 - HOSE, WATER BY-PASS
16261-75100

3RZFE..RZN21#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

3RZFE..RZN21#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

3RZFE..RZN21#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-75070

3RZFE..RZN21#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

3RZFE..RZN21#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300

3RZFE..RZN21#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-75010

3RZFE..RZN21#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-51300

3RZFE..RZN21#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-51300

3RZFE..RZN21#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-75080

3RZFE..RZN21#

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
17175-75010

3RZFE..RZN21#

 1
16321 - INLET, WATER
16321-0W010

3RZFE..RZN21#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-76010

3RZFE..RZN21#

 1
16331 - OUTLET, WATER
16331-0W010

3RZFE..RZN21#

 1
16331A - THERMOSTAT
90916-03120

3RZFE..RZN21#

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-75020

3RZFE..RZN21#

 1
Common parts
16192-71010
90179-08040
90345-51011
90959-01486
91511-B0835
91511-J0820
91641-C0612
91641-K0816
91642-K1020
92122-60828
Linked diagrams
1104
2211
2501

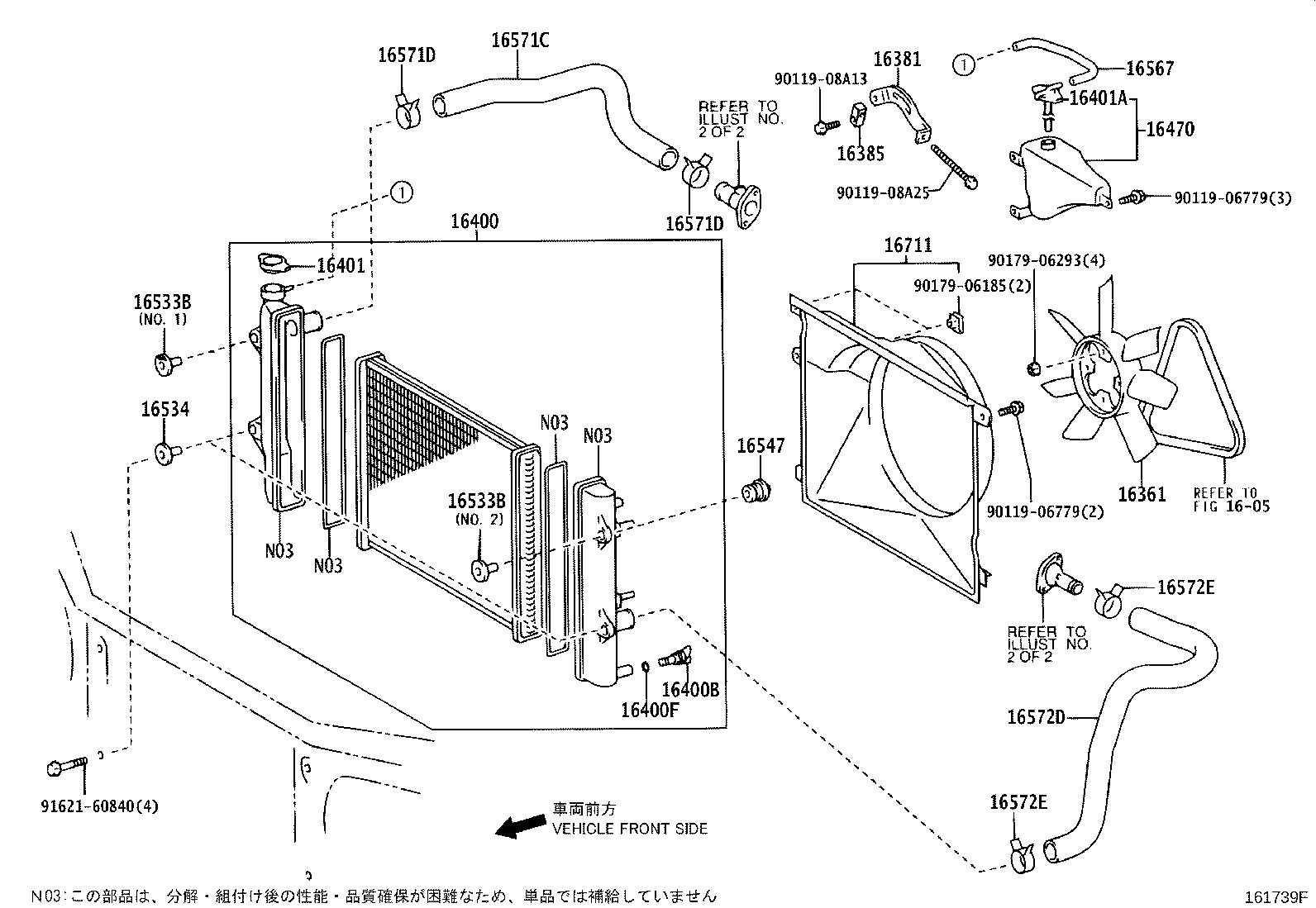

ILLUST NO. 1 OF 2(0211- )3RZFE

Click highlighted areas on diagram

diagram 1605 16361 16381 16385 16400 16400B 16400F 16401 16401A 16470 16533B 16533B 16534 16547 16567 16571C 16571D 16571D 16572D 16572E 16572E 16711 9011906779 9011906779 9011908A13 9011908A25 9017906185 9017906293 9162160840
Part # Description Qty Price
16361 - FAN
16361-75020

3RZFE..RZN21#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-75050

3RZFE..RZN21#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-75030

3RZFE..RZN21#

 1
16400 - RADIATOR ASSY
16400-62230

3RZFE..RZN21#

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

3RZFE..RZN21#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

3RZFE..RZN21#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-5B630

3RZFE..RZN21#

 1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16405-50051

3RZFE..RZN21#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-50140

3RZFE..RZN21#

 1
16533B - SUPPORT, RADIATOR, NO.1
16533-50090

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
16533-50090

3RZFE..RZN21#

NO.1

 1
16534-50050

3RZFE..RZN21#

NO.2

 1
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 1
16533B - SUPPORT, RADIATOR, NO.1
16533-50090

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.1

 1
16533-50090

3RZFE..RZN21#

NO.1

 1
16534-50050

3RZFE..RZN21#

NO.2

 1
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

NO.2

 1
16534 - SUPPORT, RADIATOR, NO.2
16534-50050

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 2
16534-50050

3RZFE..RZN21#

 2
16547 - BUSH, RADIATOR SUPPORT, NO.1
16547-50010

3RZFE..RZN21#

 4
16547-50010

1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#

 4
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-31010

3RZFE..RZN21#

 1
16571C - HOSE, RADIATOR, NO.1
16571-75230

3RZFE..RZN21#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90467-37005

3RZFE..RZN21#

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90467-37005

3RZFE..RZN21#

 2
16572D - HOSE, RADIATOR, NO.2
16572-75240

3RZFE..RZN21#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-37005

3RZFE..RZN21#

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90467-37005

3RZFE..RZN21#

 2
16711 - SHROUD, FAN
16711-75220

3RZFE..RZN21#

 1
Common parts
90119-06779
90119-08A13
90119-08A25
90179-06185
90179-06293
91621-60840
Linked diagrams
1605
