RZN185W-GAPXK (1995)
Toyota Hilux Surf

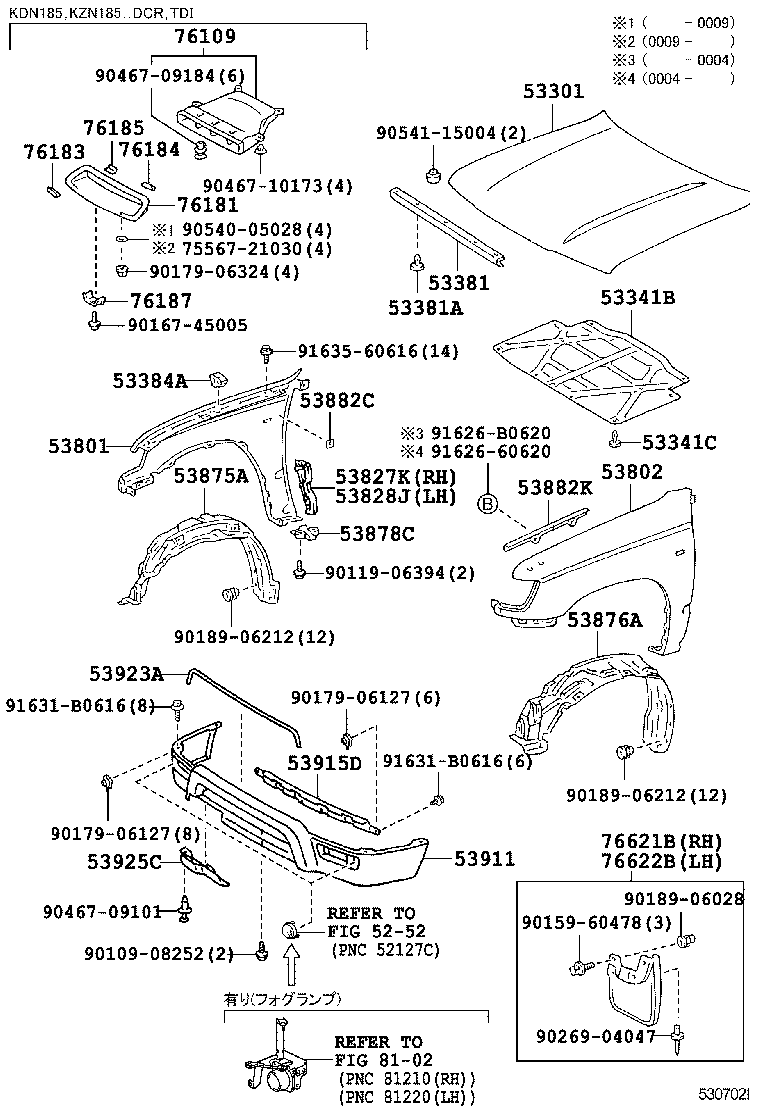

ILLUST NO. 1 OF 2(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35040 |
KZN185,RZN18#,VZN18#..EFI,TDE |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-35021 |
RZN18#,VZN18# |
1 | ||
| 53341-35022 |
RZN18#,VZN18# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09006 |
RZN18#,VZN18# |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
KDN185,KZN185,RZN18#,VZN18# |
5 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-35100 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-35160 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 53875-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53876-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
KZN185,RZN18#,VZN18# |
6 | ||
| 53882-16030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-35180D0 |
KZN185,RZN185,VZN185..WIB RED MM,TRIM16&3K4 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#&1A5 |
1 | ||
| 53911-35140 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53911-35140 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,SSR-X ﾘﾐﾃﾂﾄﾞ *(A),3K4 |
1 | ||
| 53911-35140 |
KZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI) 要塗装,ﾘﾐﾃﾂﾄﾞ *(B),056 ,204 |
1 | ||
| 53911-35320A0 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
1 | ||
| 53911-35320B1 |
KZN185,RZN185..WIB..4FC..SSRX SILVER ME.,K73 ,1C0 |
1 | ||
| 53911-35320B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 53911-35908 |
KZN185,RZN185,VZN185..WIB 塗装不要 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#,4#&1A5 |
1 | ||
| 53911-35320C0 |
KZN185,RZN185..WIB..4FC..SSRX BLACK,056 ,1C0 ,3K4 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53911-35320B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 53911-35320B1 |
KDN185,RZN185..WIB..SSRX SILVER ME.,KG8 ,K72 ,K73 ,1C0 |
1 | ||
| 53911-35320B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 53911-35320A0 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PM.,KF7 |
1 | ||
| 53911-35320J0 |
KDN185,RZN185..WIB..SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 53911-35320B0 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
1 | ||
| 53911-35320F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 53911-35320D0 |
KDN185,RZN185..WIB..SSRX RED MM,3K4 |
1 | ||
| 53911-35320B3 |
KDN185,RZN185..WIB..SSRX GRAY ME.,KF9 ,KG2 ,KG9 ,1D2 |
1 | ||
| 76181 - BULGE, HOOD | ||||
| 76181-35900 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-39395 |
KZN185,RZN185..SSR |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-39395 |
KZN185,RZN185..SSR |
1 | ||
| Common parts | ||||
| 90119-06394 | ||||
| 90119-06805 | ||||
| 90159-60478 | ||||
| 90167-45005 | ||||
| 90179-06127 | ||||
| 90179-06324 | ||||
| 90189-06028 | ||||
| 90269-04047 | ||||
| 90467-09184 | ||||
| 90467-10173 | ||||
| 90540-05028 | ||||
| 90541-15004 | ||||
| 91626-B0620 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 5252 | ||||

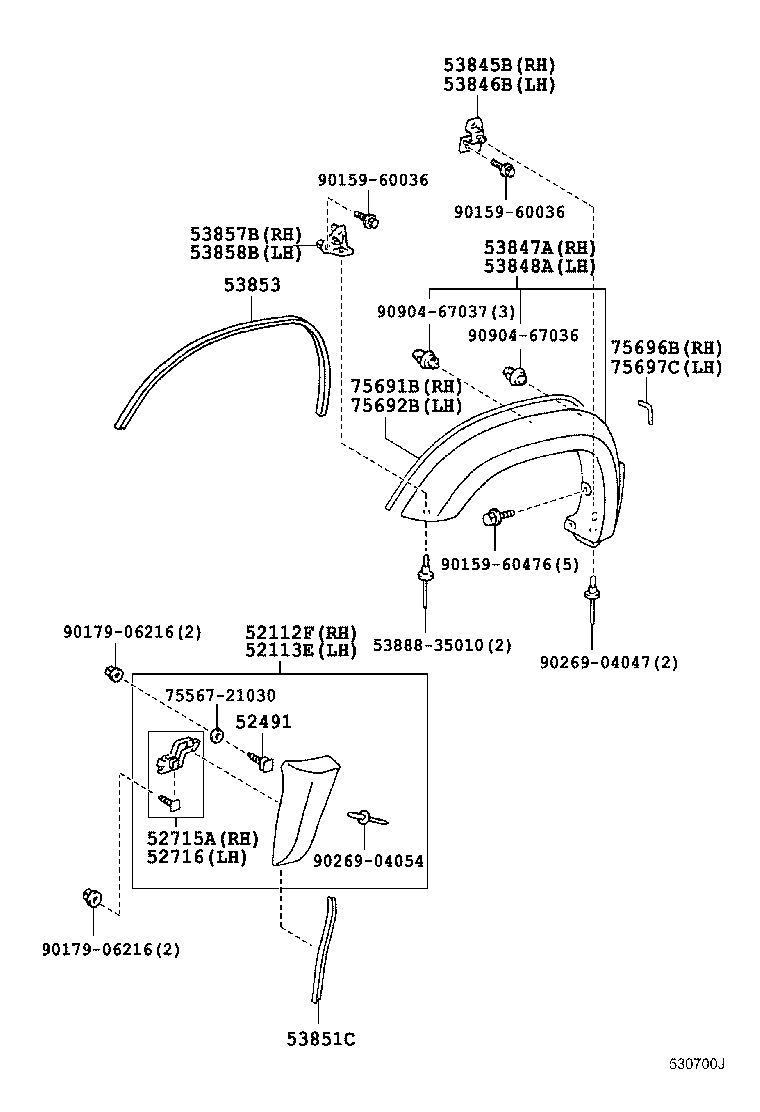

ILLUST NO. 2 OF 2(9807- )KDN185,KZN185,RZN18#,VZN185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-35902 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 52102-35902 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52102-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52103-35902 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 52103-35902 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52491 - BOLT, BUMPER PAD | ||||
| 52491-35010 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
4 | ||
| 52715A - RETAINER, FRONT BUMPER MOULDING, NO.1 RH | ||||
| 52715-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52715-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52716 - RETAINER, FRONT BUMPER MOULDING, NO.1 LH | ||||
| 52716-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52716-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53845B - EXTENSION, FRONT WHEEL OPENING, NO.1 RH | ||||
| 53845-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 53845-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53846B - EXTENSION, FRONT WHEEL OPENING, NO.1 LH | ||||
| 53846-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53846-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53087-35900 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) 要塗装 |
1 | ||
| 53087-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53087-35900 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53088-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53088-35900 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) 要塗装 |
1 | ||
| 53088-35900 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-35010 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53851-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53851-35050B6 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
2 | ||
| 53851-35050B2 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
2 | ||
| 53851-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53851-35050B7 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
2 | ||
| 53851-35050B1 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
2 | ||
| 53851-35050B3 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,GRAY,056 ,1C0 ,576 ,K73 ,K83 ,KD1 |
2 | ||
| 53851-35050C0 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,BLACK,202 ,KA3 |
2 | ||
| 53851-35050B0 |
KZN185,RZN185,VZN185..WIB BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
2 | ||
| 53851-35050B2 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
2 | ||
| 53851-35050B6 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PEARL MC.,KF7 |
2 | ||
| 53851-35050F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE ME.,KG4 |
2 | ||
| 53851-35050B7 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
2 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-35030 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),3K4 |
2 | ||
| 53853-35020 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53853-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53853-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53853-35060B2 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
2 | ||
| 53853-35060B4 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
2 | ||
| 53853-35060B1 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
2 | ||
| 53853-35060B6 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) GRAY ME.,KG2 ,KG9 |
2 | ||
| 53853-35060F0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) CHAMPAGNE ME.,KG4 |
2 | ||
| 53853-35060B4 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PEARL MC.,KF7 |
2 | ||
| 53853-35060C0 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,BLACK,202 ,KA3 |
2 | ||
| 53853-35060B3 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,GRAY,056 ,1C0 ,576 ,K73 ,K83 ,KD1 |
2 | ||
| 53853-35060B0 |
KZN185,RZN185,VZN185..WIB BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
2 | ||
| 53853-35060B6 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
2 | ||
| 53853-35060B2 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53858-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 75691B - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 75692B - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75692-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 75696B - PAD, BODY OUTSIDE MOULDING, RH | ||||
| 75696-35040 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 75697C - PAD, BODY OUTSIDE MOULDING, LH | ||||
| 75697-35030 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| Common parts | ||||
| 53888-35010 | ||||
| 75567-21030 | ||||
| 90159-60036 | ||||
| 90159-60476 | ||||
| 90179-06216 | ||||
| 90269-04047 | ||||
| 90269-04054 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||
ILLUST NO. 1 OF 2(9807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35040 |
KZN185,RZN18#,VZN18#..EFI,TDE |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-35021 |
RZN18#,VZN18# |
1 | ||
| 53341-35022 |
RZN18#,VZN18# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09006 |
RZN18#,VZN18# |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
KDN185,KZN185,RZN18#,VZN18# |
5 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-35100 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-35160 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 53875-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 53876-35040 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
KZN185,RZN18#,VZN18# |
6 | ||
| 53882-16030 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-35180D0 |
KZN185,RZN185,VZN185..WIB RED MM,TRIM16&3K4 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#&1A5 |
1 | ||
| 53911-35140 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53911-35140 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,SSR-X ﾘﾐﾃﾂﾄﾞ *(A),3K4 |
1 | ||
| 53911-35140 |
KZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI) 要塗装,ﾘﾐﾃﾂﾄﾞ *(B),056 ,204 |
1 | ||
| 53911-35320A0 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
1 | ||
| 53911-35320B1 |
KZN185,RZN185..WIB..4FC..SSRX SILVER ME.,K73 ,1C0 |
1 | ||
| 53911-35320B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 53911-35908 |
KZN185,RZN185,VZN185..WIB 塗装不要 |
1 | ||
| 53911-35180B0 |
KZN185,RZN185,VZN185..WIB WARM GRAY PEARC ME,TRIM1#,4#&1A5 |
1 | ||
| 53911-35320C0 |
KZN185,RZN185..WIB..4FC..SSRX BLACK,056 ,1C0 ,3K4 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53911-35320B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 53911-35320B1 |
KDN185,RZN185..WIB..SSRX SILVER ME.,KG8 ,K72 ,K73 ,1C0 |
1 | ||
| 53911-35320B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 53911-35320A0 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PM.,KF7 |
1 | ||
| 53911-35320J0 |
KDN185,RZN185..WIB..SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 53911-35320B0 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
1 | ||
| 53911-35320F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 53911-35320D0 |
KDN185,RZN185..WIB..SSRX RED MM,3K4 |
1 | ||
| 53911-35320B3 |
KDN185,RZN185..WIB..SSRX GRAY ME.,KF9 ,KG2 ,KG9 ,1D2 |
1 | ||
| 53915D - SUPPORT, FRONT VALANCE PANEL | ||||
| 53915-35010 |
KDN185,KZN185,RZN18#,VZN185..SSR,SSRG,SSRV,SSRX |
1 | ||
| 53923A - PROTECTOR, FRONT VALANCE PANEL | ||||
| 53923-35010B0 |
RZN185..SSR;KZN185,RZN185..4FC..SSRX DARK GRAY,056 ,1C0 ,3K4 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53923-35010B1 |
KZN185,RZN185,VZN185..SSRG,SSRX BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 53923-35010B3 |
KZN185,RZN185..4FC..SSRX SILVER ME.,K73 ,1C0 |
1 | ||
| 53923-35010B4 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
1 | ||
| 53923-35010B3 |
RZN185..SSR SILVER ME.,1C0 |
1 | ||
| 53923-35010B1 |
KZN185,RZN185,VZN185..WIB BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 53923-35010B3 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 53923-35010A0 |
KDN185,RZN185..SSRX *104,WHITE,056 |
1 | ||
| 53923-35010B0 |
KDN185,RZN185..SSRX *104,DARK GRAY,KG2 ,KG4 ,KG9 ,K72 ,K73 ,056 ,1C0 ,3K4 ,587 ,768 ,8L7 |
1 | ||
| 53923-35010F0 |
KDN185,RZN185..SSRX *104,CHAMPAGNE ME.,KG4 ,587 |
1 | ||
| 53923-35010B3 |
KDN185,RZN185..SSRX *104,SILVER ME.,KG8 ,K72 ,K73 ,1C0 ,768 |
1 | ||
| 53923-35010B5 |
KDN185,RZN185..SSRX *104,GRAY ME.,KG2 ,KG9 ,3K4 ,8L7 |
1 | ||
| 53923-35010B0 |
KDN185,RZN185..SSRX *104,DARK GRAY,KF9 ,KG2 ,KG4 ,KG9 ,K72 ,K73 ,056 ,1C0 ,1D2 ,3K4 ,587 ,768 ,8L7 |
1 | ||
| 53923-35010B5 |
KDN185,RZN185..SSRX *104,GRAY ME.,KF9 ,KG2 ,KG9 ,3K4 ,8L7 |
1 | ||
| 53923-35010B4 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PM.,KF7 |
1 | ||
| 53923-35010B2 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
1 | ||
| 53925C - PLATE, FRONT VALANCE PANEL, RH | ||||
| 53925-35020A0 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
1 | ||
| 53925-35020B2 |
KZN185,RZN185,VZN185..WIB BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94 |
1 | ||
| 53925-35020B1 |
KZN185,RZN185..WIB..4FC..SSRX SILVER ME.,K73 ,1C0 |
1 | ||
| 53925-35020B1 |
KDN185,RZN185..WIB..SSRX SILVER ME.,KG8 ,K72 ,K73 ,1C0 |
1 | ||
| 53925-35020B1 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
1 | ||
| 53925-35020B3 |
KDN185,RZN185..WIB..SSRX GRAY ME.,KF9 ,KG2 ,KG9 ,1D2 |
1 | ||
| 53925-35020F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE M.M.,KG4 |
1 | ||
| 53925-35020G0 |
KZN185,RZN185..WIB..4FC..SSRX DK. GREEN MC.,6Q7 |
1 | ||
| 53925-35020C0 |
KZN185,RZN185..WIB..4FC..SSRX BLACK,056 ,1C0 ,3K4 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53925-35020A0 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PM.,KF7 |
1 | ||
| 53925-35020B3 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
1 | ||
| 53925-35020D0 |
KDN185,RZN185..WIB..SSRX RED MM,3K4 |
1 | ||
| 53925-35020J0 |
KDN185,RZN185..WIB..SSRX DK.BLUE M.M.,8L7 |
1 | ||
| 53925-35020B0 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
1 | ||
| 76181 - BULGE, HOOD | ||||
| 76181-35900 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-39395 |
KZN185,RZN185..SSR |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-39395 |
KZN185,RZN185..SSR |
1 | ||
| Common parts | ||||
| 75567-21030 | ||||
| 90109-08252 | ||||
| 90119-06394 | ||||
| 90159-60478 | ||||
| 90167-45005 | ||||
| 90179-06127 | ||||
| 90179-06324 | ||||
| 90189-06028 | ||||
| 90189-06212 | ||||
| 90269-04047 | ||||
| 90467-09101 | ||||
| 90467-09184 | ||||
| 90467-10173 | ||||
| 90540-05028 | ||||
| 90541-15004 | ||||
| 91626-60620 | ||||
| 91626-B0620 | ||||
| 91631-B0616 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 8102 | ||||
ILLUST NO. 2 OF 2(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-35902 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 52102-35902 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52102-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-35901 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52103-35902 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 52103-35902 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52491 - BOLT, BUMPER PAD | ||||
| 52491-35010 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
4 | ||
| 52715A - RETAINER, FRONT BUMPER MOULDING, NO.1 RH | ||||
| 52715-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 52715-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52716 - RETAINER, FRONT BUMPER MOULDING, NO.1 LH | ||||
| 52716-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 52716-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53845B - EXTENSION, FRONT WHEEL OPENING, NO.1 RH | ||||
| 53845-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 53845-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53846B - EXTENSION, FRONT WHEEL OPENING, NO.1 LH | ||||
| 53846-35010 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 53846-35010 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) |
1 | ||
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53087-35900 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) 要塗装 |
1 | ||
| 53087-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53087-35900 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53088-35900 |
KZN185,RZN185,VZN185..WIB 要塗装 |
1 | ||
| 53088-35900 |
KDN185,KZN185,RZN185,VZN185..WIB..(SSRG,SSRX) 要塗装 |
1 | ||
| 53088-35900 |
KZN185,RZN185..WIB..4FC..SSRX 要塗装,ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P) |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-35010 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53851-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53851-35050B6 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
2 | ||
| 53851-35050B2 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
2 | ||
| 53851-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53851-35050B7 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KG2 ,KG9 |
2 | ||
| 53851-35050B1 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
2 | ||
| 53851-35050B3 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,GRAY,056 ,1C0 ,576 ,K73 ,K83 ,KD1 |
2 | ||
| 53851-35050C0 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,BLACK,202 ,KA3 |
2 | ||
| 53851-35050B0 |
KZN185,RZN185,VZN185..WIB BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
2 | ||
| 53851-35050B2 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
2 | ||
| 53851-35050B6 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PEARL MC.,KF7 |
2 | ||
| 53851-35050F0 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) CHAMPAGNE ME.,KG4 |
2 | ||
| 53851-35050B7 |
KDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
2 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-35030 |
KZN185,RZN185..WIB..4FC..SSRX SSR-X ﾘﾐﾃﾂﾄﾞ *(A),3K4 |
2 | ||
| 53853-35020 |
KZN185,RZN185,VZN185..WIB ﾌﾞﾗｯｸ |
2 | ||
| 53853-35040 |
KZN185,RZN185,VZN185..WIB ﾏﾙｰﾝ |
2 | ||
| 53853-35030 |
KZN185,RZN185,VZN185..WIB SILVER |
2 | ||
| 53853-35060B2 |
KZN185,RZN185,VZN185..WIB SILVER ME.,K73 |
2 | ||
| 53853-35060B4 |
KZN185,RZN185..WIB..4FC..SSRX ﾌﾟﾚﾐｱﾑｾﾚｸｼﾖﾝ *(P),WHITE PM,KF7 |
2 | ||
| 53853-35060B1 |
KZN185,RZN185..WIB..4FC..SSRX V ｾﾚｸｼﾖﾝ *(V),LT.GRAIGE ME.,KD0 |
2 | ||
| 53853-35060B6 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) GRAY ME.,KG2 ,KG9 |
2 | ||
| 53853-35060F0 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) CHAMPAGNE ME.,KG4 |
2 | ||
| 53853-35060B4 |
KDN185,RZN185..WIB..SSRX ﾎﾜｲﾄﾌﾟﾚﾐｱﾑ *(W),WHITE PEARL MC.,KF7 |
2 | ||
| 53853-35060C0 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,BLACK,202 ,KA3 |
2 | ||
| 53853-35060B3 |
KZN185,RZN185..WIB..4FC..SSRX ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾌｵ-ｽ,GRAY,056 ,1C0 ,576 ,K73 ,K83 ,KD1 |
2 | ||
| 53853-35060B0 |
KZN185,RZN185,VZN185..WIB BLUISH SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94 |
2 | ||
| 53853-35060B6 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) GRAY ME.,KF9 ,KG2 ,KG9 |
2 | ||
| 53853-35060B2 |
KDN185,RZN185,VZN185..WIB..(SSRG,SSRX) SILVER ME.,KG8 ,K72 ,K73 |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53858-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| Common parts | ||||
| 53888-35010 | ||||
| 90159-60036 | ||||
| 90159-60476 | ||||
| 90179-06206 | ||||
| 90189-06018 | ||||
| 90269-04047 | ||||
| 90467-11099 | ||||
| 90467-11100 | ||||
| 90540-05028 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
