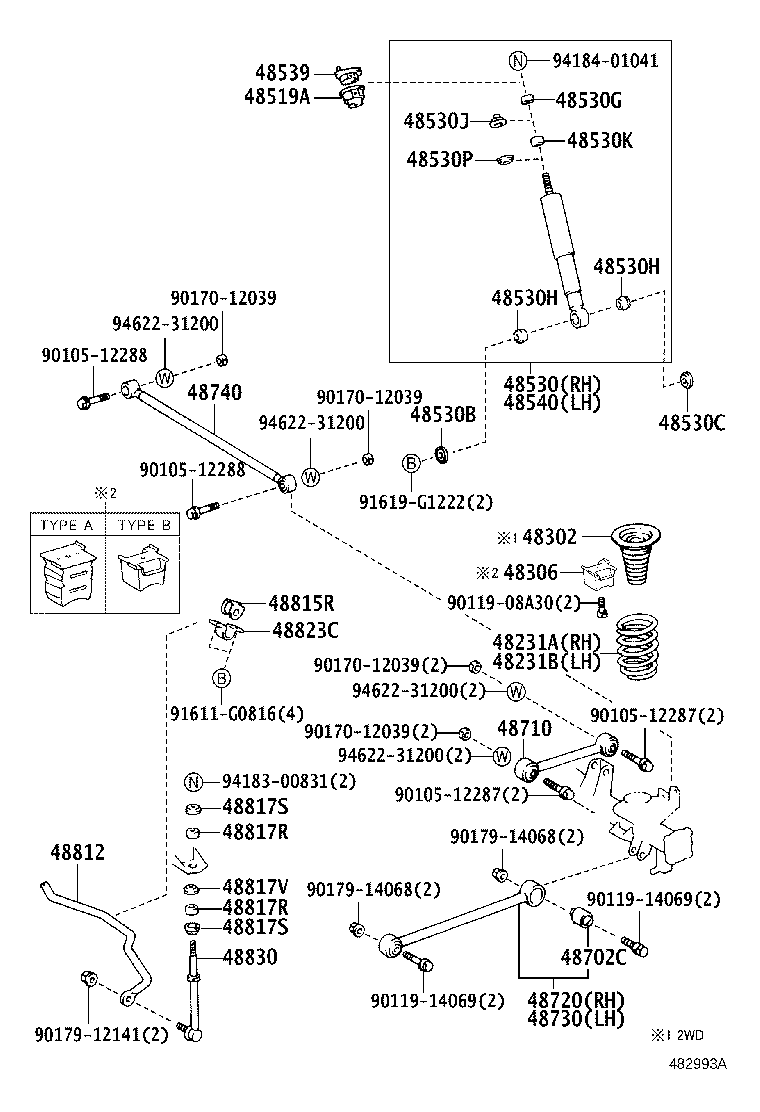

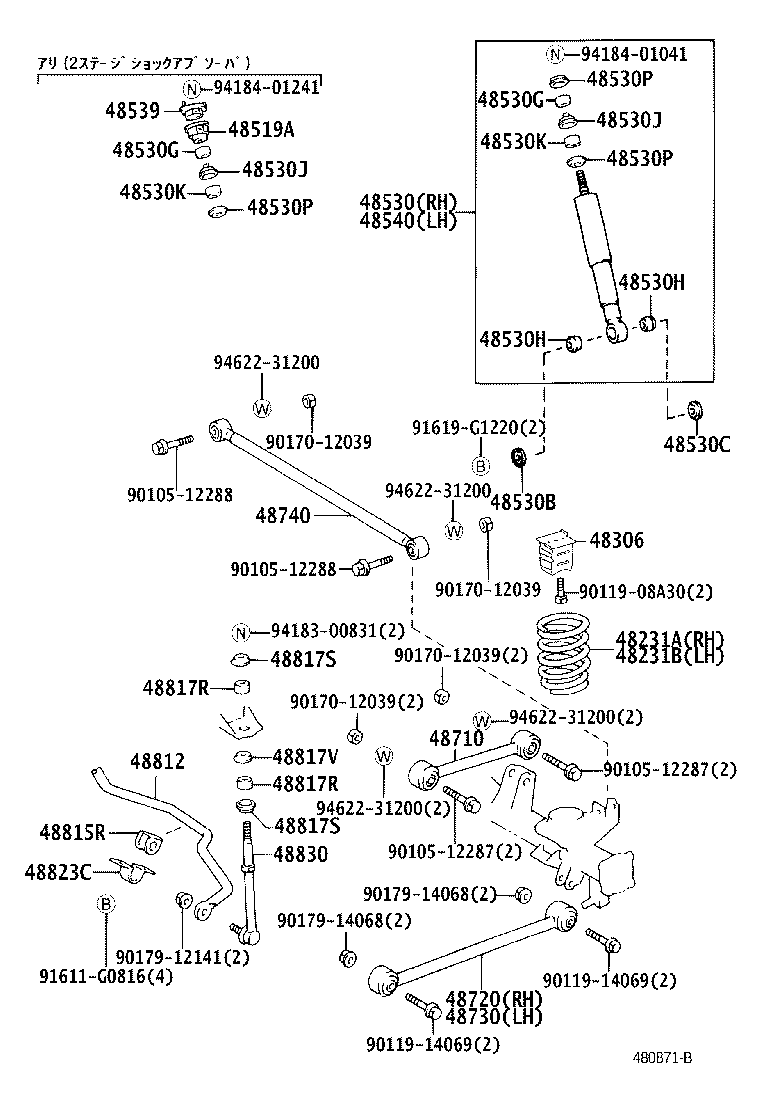

RZN185W-GAPXK (1995)
Toyota Hilux Surf
(9511-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35180 |
KDN185,KZN185,RZN185,VZN185 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48519A - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48539-35030 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 90948-01026 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 90948-01026 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02130 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 90948-02119 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02130 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 90948-02119 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01044 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(2 ｽﾃ-ｼﾞ ｼﾖﾂｸｱﾌﾞｿ-ﾊﾞ) |
2 | ||
| 90948-01045 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01044 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(2 ｽﾃ-ｼﾞ ｼﾖﾂｸｱﾌﾞｿ-ﾊﾞ) |
2 | ||
| 90948-01045 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48538-35010 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35040 |
RZN185..4FC;KDN185,KZN185,VZN185 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-35100 |
KZN185,RZN185,VZN185 |
1 | ||
| 48812-35110 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-10090 |
KZN185,RZN185,VZN185 |
2 | ||
| 48815-16160 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| Common parts | ||||
| 90105-12287 | ||||
| 90105-12288 | ||||
| 90119-08A30 | ||||
| 90119-14069 | ||||
| 90170-12039 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 91611-G0816 | ||||
| 91619-G1220 | ||||
| 94183-00831 | ||||
| 94184-01041 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||

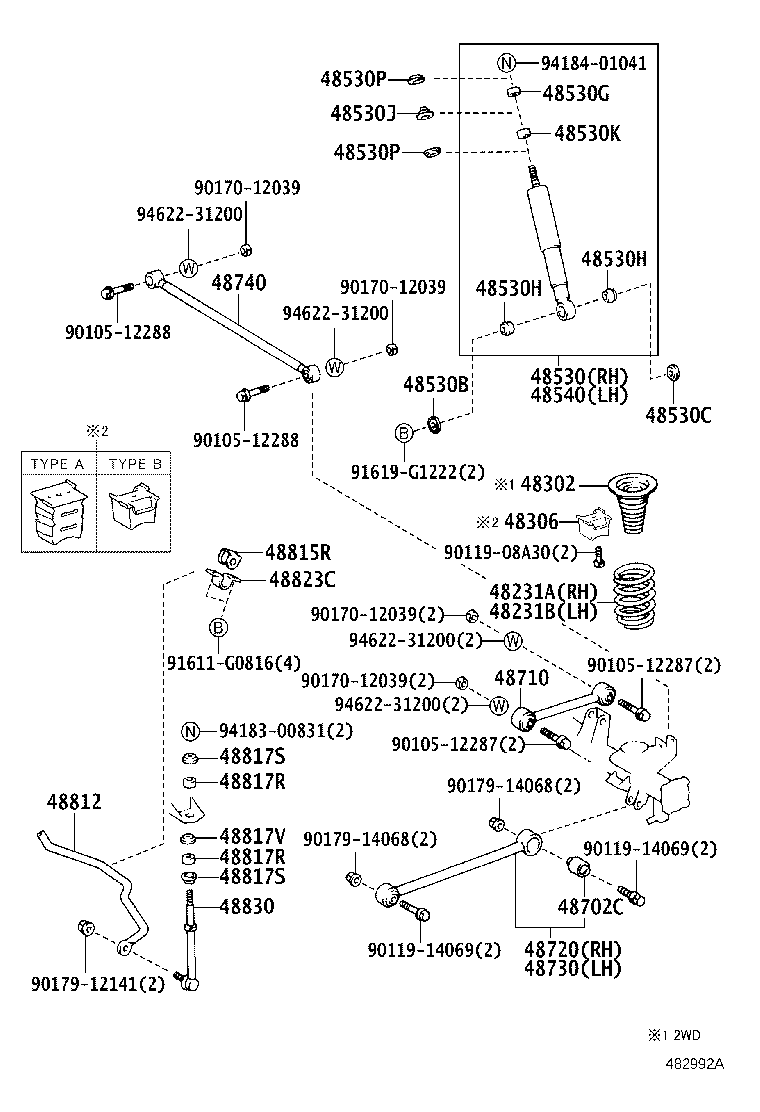

(9607-0008) ; (0008- )SPR,SSRV,SSRX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35180 |
KDN185,KZN185,RZN185,VZN185 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 90948-01026 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02130 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 90948-02119 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01044 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(2 ｽﾃ-ｼﾞ ｼﾖﾂｸｱﾌﾞｿ-ﾊﾞ) |
2 | ||
| 90948-01045 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-35070 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35040 |
RZN185..4FC;KDN185,KZN185,VZN185 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-35100 |
KZN185,RZN185,VZN185 |
1 | ||
| 48812-35110 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-10090 |
KZN185,RZN185,VZN185 |
2 | ||
| 48815-16160 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| Common parts | ||||
| 90105-12287 | ||||
| 90105-12288 | ||||
| 90119-08A30 | ||||
| 90119-14069 | ||||
| 90170-12039 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 91611-G0816 | ||||
| 91619-G1222 | ||||
| 94183-00831 | ||||
| 94184-01041 | ||||
| 94622-31200 | ||||
(9607-0008) ; (0008- )SPR,SSRV,SSRX
ｱﾘ(2ｽﾃｰｼﾞ ｼｮｯｸｱﾌﾞｿｰﾊﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-35170 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35180 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35240 |
KDN185,KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48231-35110 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35230 |
KDN185,KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ(ﾌﾚ-ﾑﾂﾞｹ)) |
1 | ||
| 48231-35120 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ(ﾊﾞﾂｸﾄﾞｱﾂﾞｹ)) |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35180 |
KDN185,KZN185,RZN185,VZN185 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48519A - BRACKET, ACTUATOR SUPPORT, FRONT | ||||
| 48539-35030 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 90948-01026 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19007 |
KZN185,RZN185,VZN185 |
4 | ||
| 90385-19007 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 90385-19009 |
KZN185,RZN185,VZN185 |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02130 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 90948-02119 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01044 |
KZN185,RZN185..SSRX..(EFI,TDE) ｱﾘ(2 ｽﾃ-ｼﾞ ｼﾖﾂｸｱﾌﾞｿ-ﾊﾞ) |
2 | ||
| 90948-01045 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02131 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX |
4 | ||
| 90948-02070 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48538-35010 |
KZN185,RZN185,VZN185..SSRG,SSRX |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80466 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39326 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48530-39325 |
KZN185,RZN185..SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80525 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 48530-39485 |
KZN185,RZN185,VZN185..SSRG,SSRX ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ) |
1 | ||
| 48531-80198 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 48531-80689 |
KDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX ﾏｰｸ 48531−3D231 |
1 | ||
| 48531-80663 |
KZN185,RZN185,VZN185..SSR,SSRX |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-35070 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35040 |
RZN185..4FC;KDN185,KZN185,VZN185 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 48720-35051 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-35100 |
KZN185,RZN185,VZN185 |
1 | ||
| 48812-35110 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-10090 |
KZN185,RZN185,VZN185 |
2 | ||
| 48815-16160 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
KDN185,KZN185,RZN18#,VZN18# |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-35020 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| Common parts | ||||
| 90105-12287 | ||||
| 90105-12288 | ||||
| 90119-08A30 | ||||
| 90119-14069 | ||||
| 90170-12039 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 91611-G0816 | ||||
| 91619-G1222 | ||||
| 94183-00831 | ||||
| 94184-01041 | ||||
| 94622-31200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
