RZN185W-GAPVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Nov 2002
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)

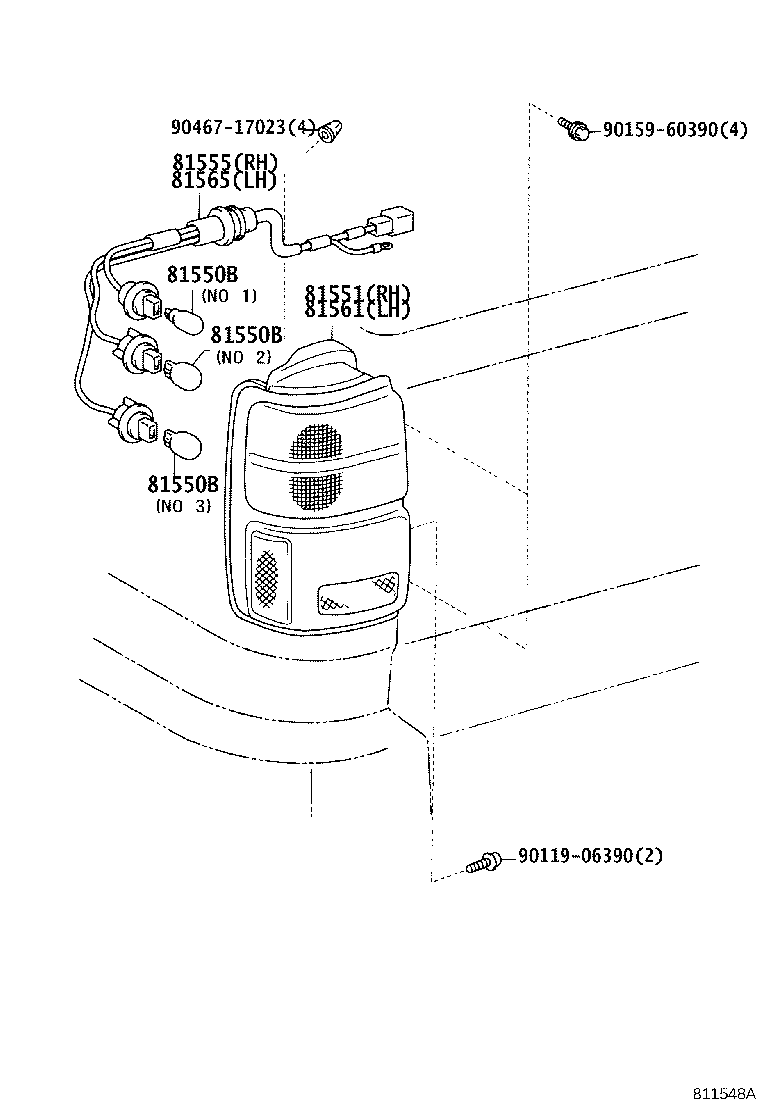

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81555 81561 81565 9011906390 9015960390 9046717023
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-35071

KZN185,RZN18#,VZN18#

 1
81551-35070

KZN185,RZN185,VZN185

 1
81551-35220

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-35220

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555-35070

KZN185,RZN185,VZN185

 1
81555-35200

KZN185,RZN18#,VZN18#

 1
81555-35160

KZN185,RZN185,VZN185

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-35071

KZN185,RZN18#,VZN18#

 1
81561-35070

KZN185,RZN185,VZN185

 1
81561-35160

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-35160

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555-35070

KZN185,RZN18#,VZN18#

 1
Common parts
90119-06390
90159-60390
90467-17023

(0008- )

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81555 81561 81565 9011906390 9015960390 9046717023
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

KDN185,RZN18#,VZN185

12V 16W,NO.1

 2
90981-13044

KDN185,RZN18#,VZN185

12V 21/5W,NO.3

 2
90981-13044

KZN185,RZN18#,VZN18#

12V 21/5W,NO.2

 2
90981-13043

KZN185,RZN18#,VZN18#

12V 21W,NO.1

 4
90981-15011

KDN185,RZN18#,VZN185

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-35071

KZN185,RZN18#,VZN18#

 1
81551-35070

KZN185,RZN185,VZN185

 1
81551-35220

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-35220

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555-35070

KZN185,RZN185,VZN185

 1
81555-35200

KZN185,RZN18#,VZN18#

 1
81555-35160

KZN185,RZN185,VZN185

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-35071

KZN185,RZN18#,VZN18#

 1
81561-35070

KZN185,RZN185,VZN185

 1
81561-35160

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-35160

KDN185,RZN18#,VZN185..SSRG,SSRV,SSRX

 1
81555-35070

KZN185,RZN18#,VZN18#

 1
Common parts
90119-06390
90159-60390
90467-17023
