RZN185W-GAPGK (1998)
Toyota Hilux Surf

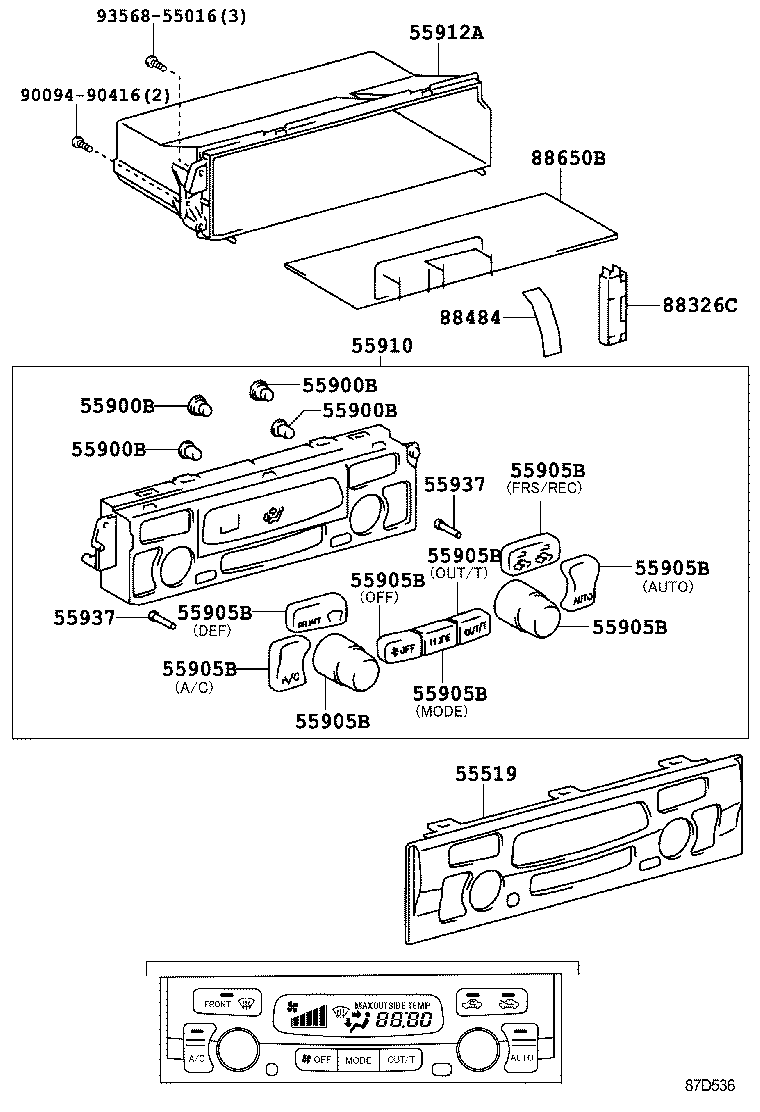

ILLUST NO. 1 OF 4(9807- )
ﾌﾛﾝﾄﾋ-ﾀ ｺﾝﾄﾛ-ﾙ--ﾌﾟﾂｼﾕｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-35100 |
KZN185,RZN185..SSR,SSRV,SSRX ﾚﾊﾞ-ｼｷ |
1 | ||
| 55519-35320 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35030 |
KDN185,KZN185,RZN18#,VZN18# 14V 110MA |
2 | ||
| 81850-35020 |
KDN185,KZN185,RZN18#,VZN18# 14V 80MA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35030 |
KDN185,KZN185,RZN18#,VZN18# 14V 110MA |
2 | ||
| 81850-35020 |
KDN185,KZN185,RZN18#,VZN18# 14V 80MA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35030 |
KDN185,KZN185,RZN18#,VZN18# 14V 110MA |
2 | ||
| 81850-35020 |
KDN185,KZN185,RZN18#,VZN18# 14V 80MA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35030 |
KDN185,KZN185,RZN18#,VZN18# 14V 110MA |
2 | ||
| 81850-35020 |
KDN185,KZN185,RZN18#,VZN18# 14V 80MA |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.1 |
1 | ||
| 55905-35150 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.5 |
1 | ||
| 55905-35120 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.2 |
3 | ||
| 55905-35240 |
KDN185,KZN185,RZN18#,VZN18# FRS/REC |
1 | ||
| 55905-35280 |
KDN185,KZN185,RZN18#,VZN18# ｵｰﾄ |
1 | ||
| 55905-35180 |
KDN185,KZN185,RZN18#,VZN18# DEF |
1 | ||
| 55905-35170 |
KDN185,KZN185,RZN18#,VZN18# ﾀﾞｲｱﾙ |
2 | ||
| 55905-35220 |
KDN185,KZN185,RZN18#,VZN18# OFF |
1 | ||
| 55905-35130 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.3 |
1 | ||
| 55905-35300 |
KDN185,KZN185,RZN18#,VZN18# ﾓｰﾄﾞ |
1 | ||
| 55905-35200 |
KDN185,KZN185,RZN18#,VZN18# A/C |
1 | ||
| 55905-35140 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX NO.4 |
1 | ||
| 55905-35260 |
KDN185,KZN185,RZN18#,VZN18# OUT/T |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-35150 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 55910-35220 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-35010 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 88326C - PLATE, COVER | ||||
| 88326-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-35100 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88650-35130 |
KDN185,RZN18#,VZN185 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 93568-55016 | ||||
