RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

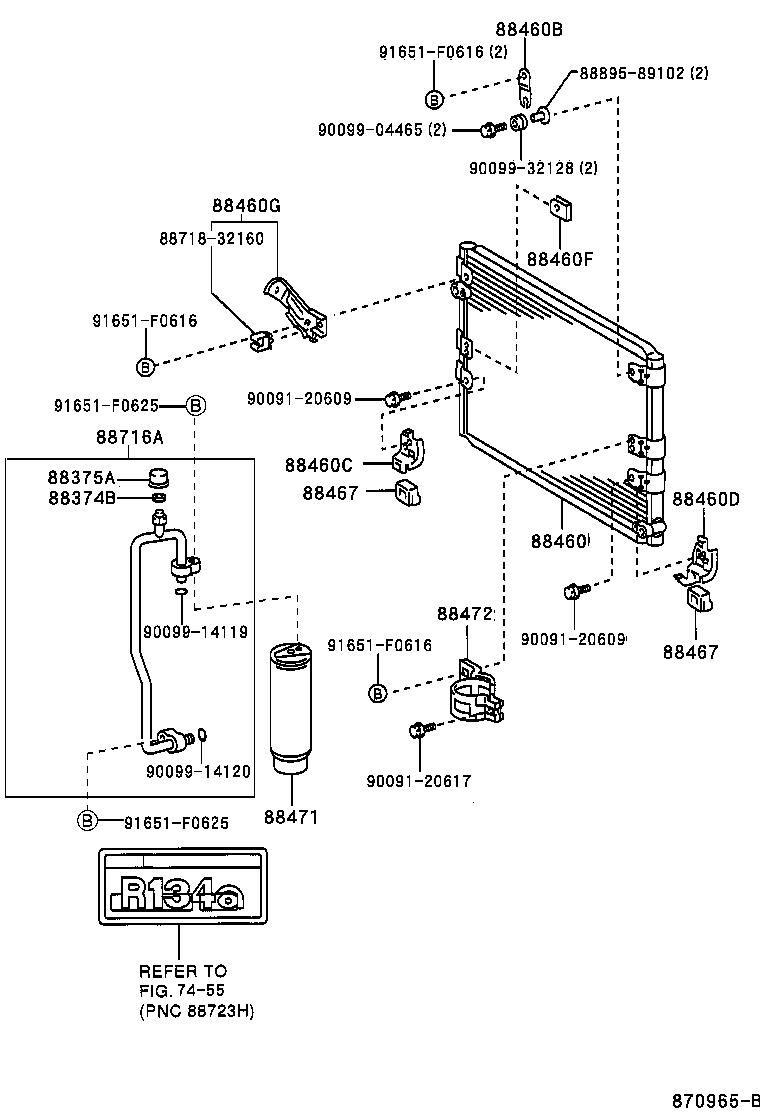

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼ-ﾊﾞ

diagram 7455 88374B 88375A 88460 88460B 88460C 88460D 88460F 88460G 88467 88467 88471 88472 88716A 8871832160 8889589102 9009120609 9009120609 9009120617 9009904465 9009914119 9009914120 9009932128 91651F0616 91651F0616 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KDN185,KZN185,RZN18#,VZN18#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

KDN185,KZN185,RZN18#,VZN18#

 1
88460 - CONDENSER ASSY, COOLER
88461-35050

KDN185,KZN185,RZN18#,VZN18#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-35290

RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV

 4
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-35310

KDN185,KZN185,RZN18#,VZN18#

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-35300

KDN185,KZN185,RZN18#,VZN18#

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-26470

KDN185,KZN185,RZN18#,VZN18#

 4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-35320

KDN185,KZN185,RZN18#,VZN18#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-35020

KDN185,KZN185,RZN18#,VZN18#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-35020

KDN185,KZN185,RZN18#,VZN18#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

KDN185,KZN185,RZN18#,VZN18#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35020

KDN185,KZN185,RZN18#,VZN18#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
88718-32160
88895-89102
90091-20609
90091-20617
90099-04465
90099-14119
90099-14120
90099-32128
91651-F0616
91651-F0625
Linked diagrams
7455

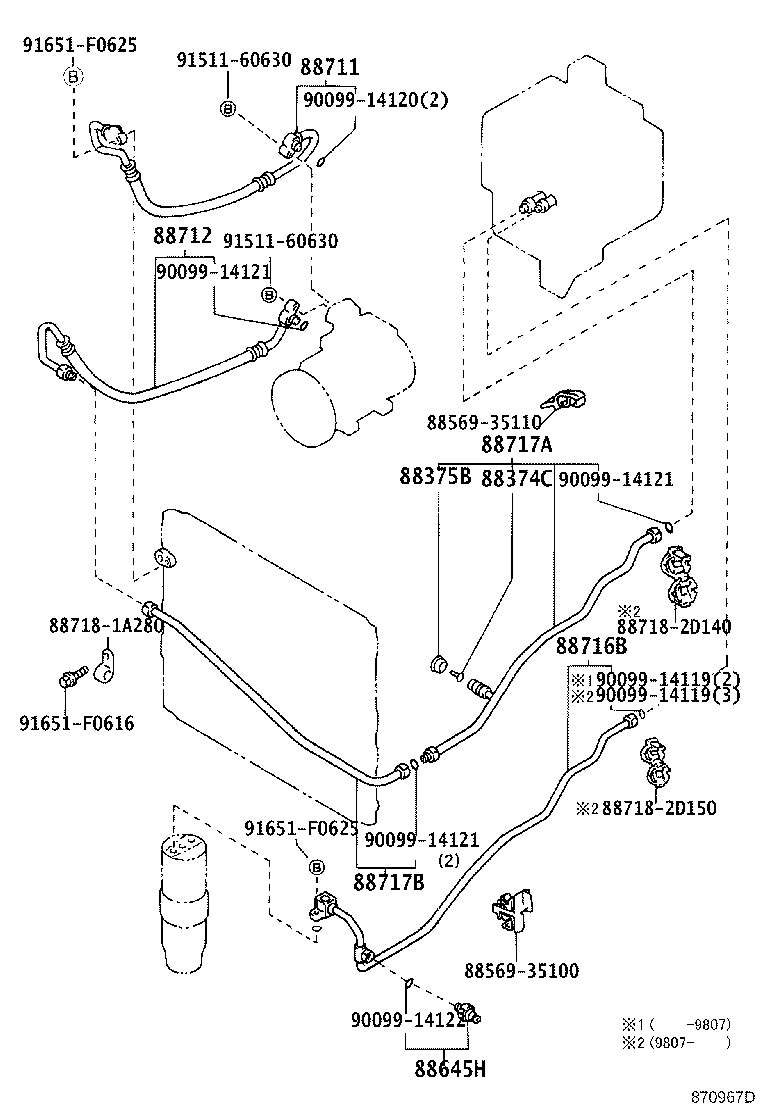

ILLUST NO. 2 OF 2(9511- )RZN18#

Click highlighted areas on diagram

ﾎ-ｽ & ﾊﾟｲﾌﾟ

diagram 88374C 88375B 8856935100 8856935110 88645H 88711 88712 88716B 88717A 88717B 887181A280 887182D140 887182D150 9009914119 9009914120 9009914121 9009914121 9009914121 9009914122 9151160630 9151160630 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

KDN185,KZN185,RZN18#,VZN18#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

KDN185,KZN185,RZN18#,VZN18#

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

KDN185,KZN185,RZN18#,VZN18#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35470

RZN18#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35430

RZN18#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-35340

KZN185,RZN185,VZN185

 1
88716-6B010

KZN185,RZN185,VZN185

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-35120

KZN185,RZN185,VZN185

 1
88717-6A250

KZN185,RZN185,VZN185

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
88569-35100
88569-35110
88718-1A280
88718-2D140
88718-2D150
90099-14119
90099-14120
90099-14121
90099-14122
91511-60630
91651-F0616
91651-F0625
