RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)RZN18#

Click highlighted areas on diagram

ﾅｼ(ﾘﾔﾋ-ﾀ)

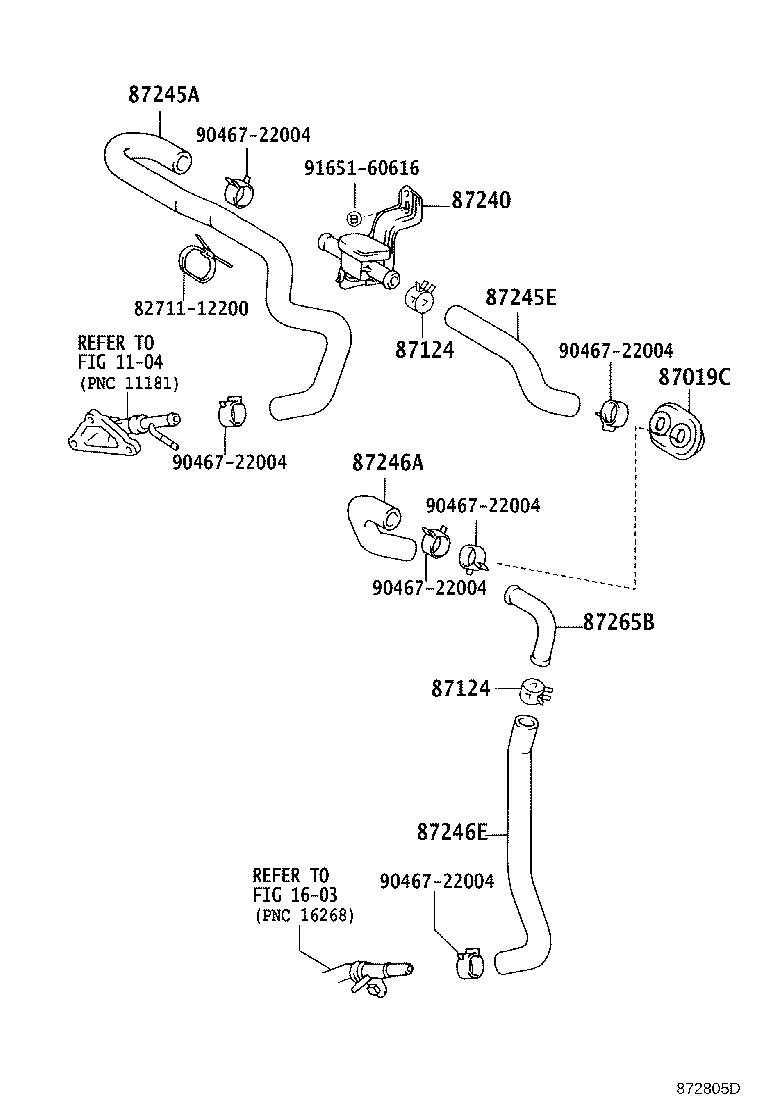

diagram 8271112200 87019C 87124 87124 87240 87245A 87245E 87246A 87246E 87265B 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9165160616
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZN185,RZN18#..EFI,TDE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35440

RZN18#..SPR,SSR,SSRV,SSRX

 1
87245-35490

RZN180..SPR;RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ);ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35520

KZN185,RZN18#..EFI,TDE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35380

RZN18#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-35760

RZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87245-35510

RZN18#..SPR,SSR,SSRV,SSRX

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35230

RZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87265-35240

RZN18#..SPR,SSR,SSRV,SSRX

 1
Common parts
82711-12200
90467-22004
91651-60616

(9511-0008)RZN18#

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋ-ﾀ)

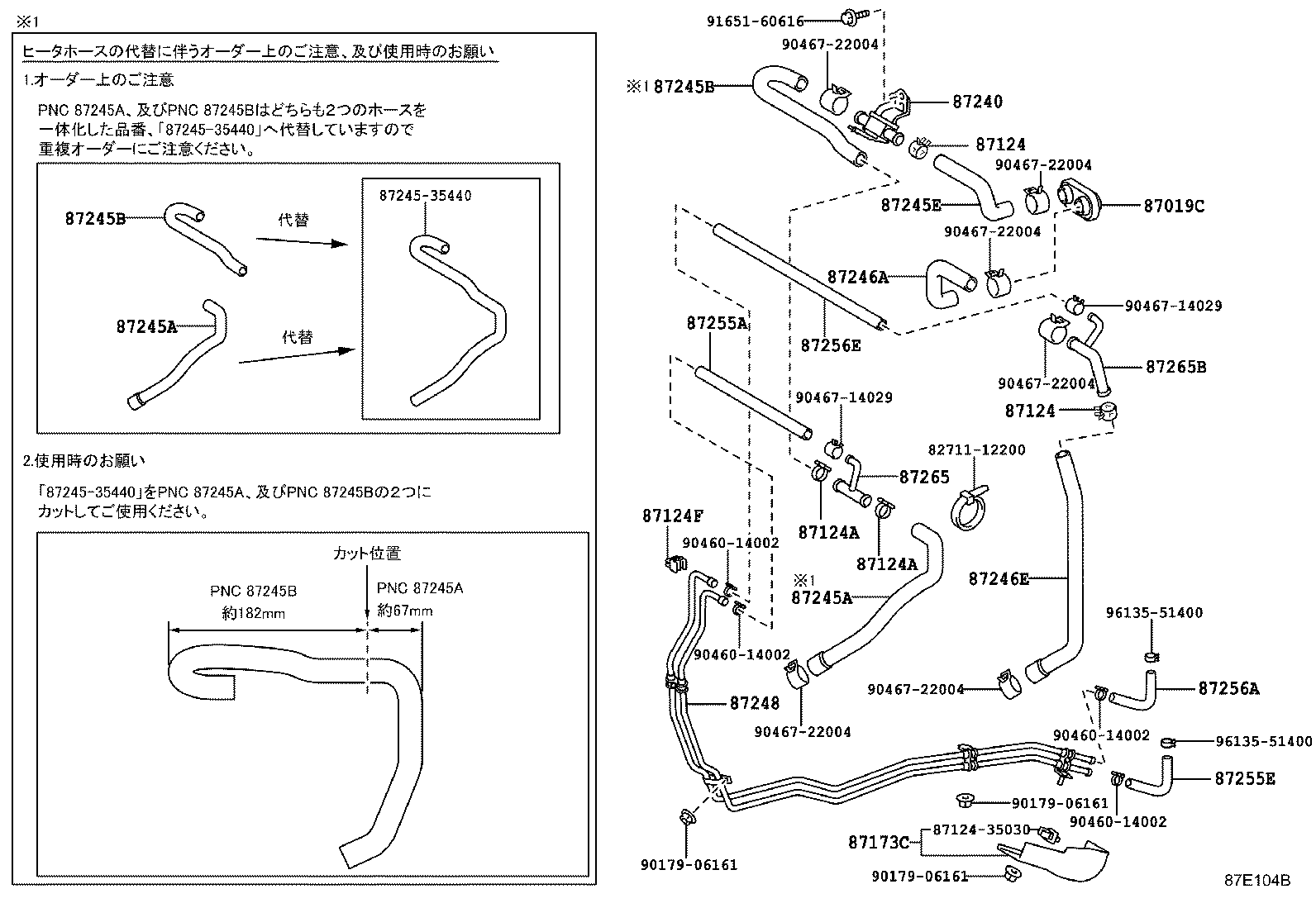

diagram 8271112200 87019C 87124 87124 8712435030 87124A 87124A 87124F 87173C 87240 87245A 87245A 87245B 87245B 87245E 87246A 87246E 87248 87255A 87255E 87256A 87256E 87265 87265B 9017906161 9017906161 9017906161 9046014002 9046014002 9046014002 9046014002 9046714029 9046714029 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9165160616 9613551400 9613551400
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KZN185,RZN18#,VZN18#..EFI,TDE

 1
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87124 - CLAMP, HEATER
87124-28030

KZN185,RZN185

 2
87124A - CLAMP, HEATER
87124-28030

RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 2
87124A - CLAMP, HEATER
87124-28030

RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 2
87124F - CLAMP, HEATER HOSE, NO.1
87124-35020

RZN185,VZN185

 1
87173C - PROTECTOR, HEATER
87173-35010

RZN18#,VZN18#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZN185,RZN18#..EFI,TDE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35440

RZN18#..SPR,SSR,SSRV,SSRX

 1
87245-35490

RZN180..SPR;RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ);ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35440

RZN18#..SPR,SSR,SSRV,SSRX

 1
87245-35490

RZN180..SPR;RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ);ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35500

RZN18#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35500

RZN18#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
87245E - HOSE, HEATER WATER, INLET E
87245-35520

KZN185,RZN18#..EFI,TDE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35380

RZN18#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-35760

RZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87245-35510

RZN18#..SPR,SSR,SSRV,SSRX

 1
87248 - PIPE SUB-ASSY, WATER
87248-35020

RZN185

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99555-10200

RZN185..SSR,SSRV,SSRX

*H,L=150,ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35450

KZN185,RZN185,VZN185

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35461

KDN185,KZN185,RZN18#,VZN18#

 1
87245-35460

KZN185,RZN185,VZN185

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99555-10300

RZN185

*H,L=240,ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35220

RZN185..SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35230

RZN18#..SPR,SSR,SSRV,SSRX

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87265-35240

RZN18#..SPR,SSR,SSRV,SSRX

 1
Common parts
82711-12200
87124-35030
90179-06161
90460-14002
90467-14029
90467-22004
91651-60616
96135-51400
