RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807)

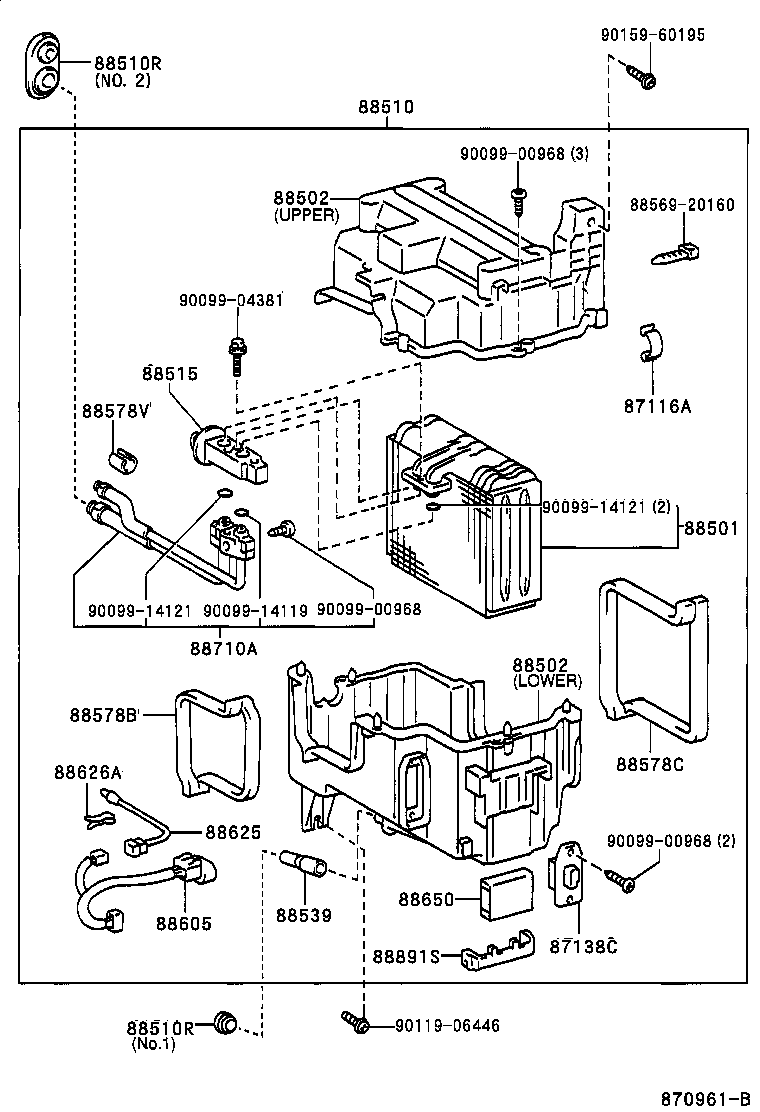

Click highlighted areas on diagram

ﾏﾆﾕｱﾙｴｱｺﾝ

diagram 87116A 87138C 88501 88502 88502 88510 88510R 88510R 88515 88539 8856920160 88578B 88578C 88578V 88605 88625 88626A 88650 88710A 88891S 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9009914121 9011906446 9015960195
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

KZN185,RZN185,VZN185

 3
87116-14010

KZN185,RZN185,VZN185

 3
87138C - RESISTOR, BLOWER
87138-35050

KZN185,RZN185..SSR,SSRV,SSRX

 1
87138-35050

KZN185,RZN185..SSR,SSRV

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35040

KZN185,RZN185,VZN185

 1
88501-35040

KZN185,RZN185,VZN185

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88510 - UNIT ASSY, COOLER
88510-35530

RZN185

 1
88510-35550

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
88510-35530

RZN185..SSR,SSRV

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

KZN185,RZN185,VZN185

NO.1

 1
90480-26022

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.1

 1
90480-01677

KZN185,RZN185,VZN185

NO.2

 1
90480-01677

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.2

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

KZN185,RZN185,VZN185

NO.1

 1
90480-26022

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.1

 1
90480-01677

KZN185,RZN185,VZN185

NO.2

 1
90480-01677

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.2

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

KZN185,RZN185,VZN185

 1
88515-20100

KZN185,RZN185,VZN185

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-35010

KZN185,RZN185,VZN185

 1
88539-35010

KZN185,RZN185,VZN185

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-35040

KZN185,RZN185,VZN185

 1
88578-35040

KZN185,RZN185,VZN185

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050

KZN185,RZN185,VZN185

 1
88578-35050

KZN185,RZN185,VZN185

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-35070

KZN185,RZN185,VZN185

 1
88578-35070

KZN185,RZN185,VZN185

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35220

RZN185

 1
88605-35220

RZN185..SSR,SSRV

 1
88605-35290

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

KZN185,RZN185,VZN185

 1
88625-3A090

KZN185,RZN185,VZN185

 1
88626A - HOLDER, THERMISTOR
88626-28010

KZN185,RZN185,VZN185

 1
88626-28010

KZN185,RZN185,VZN185

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-35060

RZN185

 1
88650-35060

RZN185..SSR,SSRV

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35280

KZN185,RZN185,VZN185

 1
88710-35280

KZN185,RZN185,VZN185

 1
88891S - COVER, COOLER, NO.1
88891-35010

KZN185,RZN185,VZN185

 1
88891-35010

KZN185,RZN185,VZN185

 1
Common parts
88569-20160
90099-00968
90099-04381
90099-14119
90099-14121
90119-06446
90159-60195

(9511-9807)

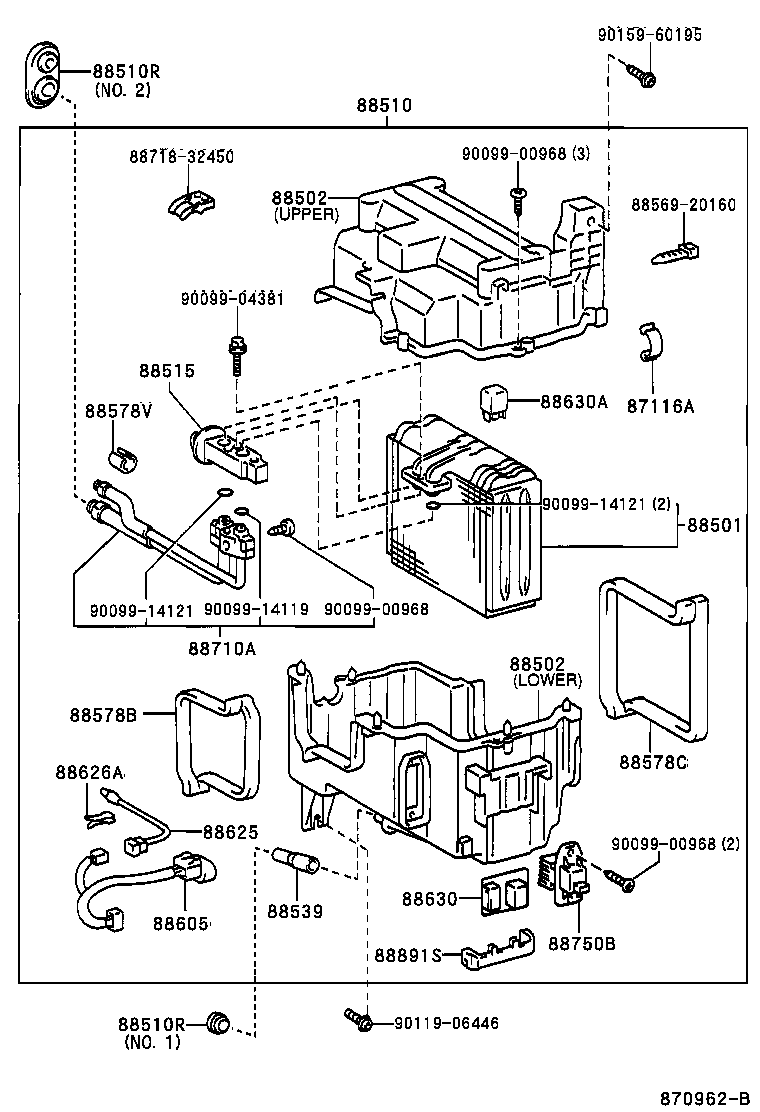

Click highlighted areas on diagram

ｵ-ﾄｴｱｺﾝ

diagram 87116A 88501 88502 88502 88510 88510R 88510R 88515 88539 8856920160 88578B 88578C 88578V 88605 88625 88626A 88630 88630A 88710A 8871832450 88750B 88891S 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9009914121 9011906446 9015960195
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

KZN185,RZN185,VZN185

 3
87116-14010

KZN185,RZN185,VZN185

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35040

KZN185,RZN185,VZN185

 1
88501-35040

KZN185,RZN185,VZN185

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35020

KZN185,RZN185,VZN185

下側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88502-35010

KZN185,RZN185,VZN185

上側

 1
88510 - UNIT ASSY, COOLER
88510-35530

RZN185

 1
88510-35550

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
88510-35530

RZN185..SSR,SSRV

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

KZN185,RZN185,VZN185

NO.1

 1
90480-26022

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.1

 1
90480-01677

KZN185,RZN185,VZN185

NO.2

 1
90480-01677

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.2

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26022

KZN185,RZN185,VZN185

NO.1

 1
90480-26022

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.1

 1
90480-01677

KZN185,RZN185,VZN185

NO.2

 1
90480-01677

KZN185,VZN185..EFI,TDI;KZN185,RZN185..SSR,SSRV

NO.2

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

KZN185,RZN185,VZN185

 1
88515-20100

KZN185,RZN185,VZN185

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-35010

KZN185,RZN185,VZN185

 1
88539-35010

KZN185,RZN185,VZN185

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-35040

KZN185,RZN185,VZN185

 1
88578-35040

KZN185,RZN185,VZN185

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050

KZN185,RZN185,VZN185

 1
88578-35050

KZN185,RZN185,VZN185

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-35070

KZN185,RZN185,VZN185

 1
88578-35070

KZN185,RZN185,VZN185

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35220

RZN185

 1
88605-35220

RZN185..SSR,SSRV

 1
88605-35290

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

KZN185,RZN185,VZN185

 1
88625-3A090

KZN185,RZN185,VZN185

 1
88626A - HOLDER, THERMISTOR
88626-28010

KZN185,RZN185,VZN185

 1
88626-28010

KZN185,RZN185,VZN185

 1
88630 - RELAY ASSY, COOLER
88630-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
88630A - RELAY ASSY, COOLER
90987-02004

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35280

KZN185,RZN185,VZN185

 1
88710-35280

KZN185,RZN185,VZN185

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-35010

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
88891S - COVER, COOLER, NO.1
88891-35010

KZN185,RZN185,VZN185

 1
88891-35010

KZN185,RZN185,VZN185

 1
Common parts
88569-20160
88718-32450
90099-00968
90099-04381
90099-14119
90099-14121
90119-06446
90159-60195
