RZN185W-GAMVK (1995)
Toyota Hilux Surf
Production
Nov 1995
-
Jul 1998
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

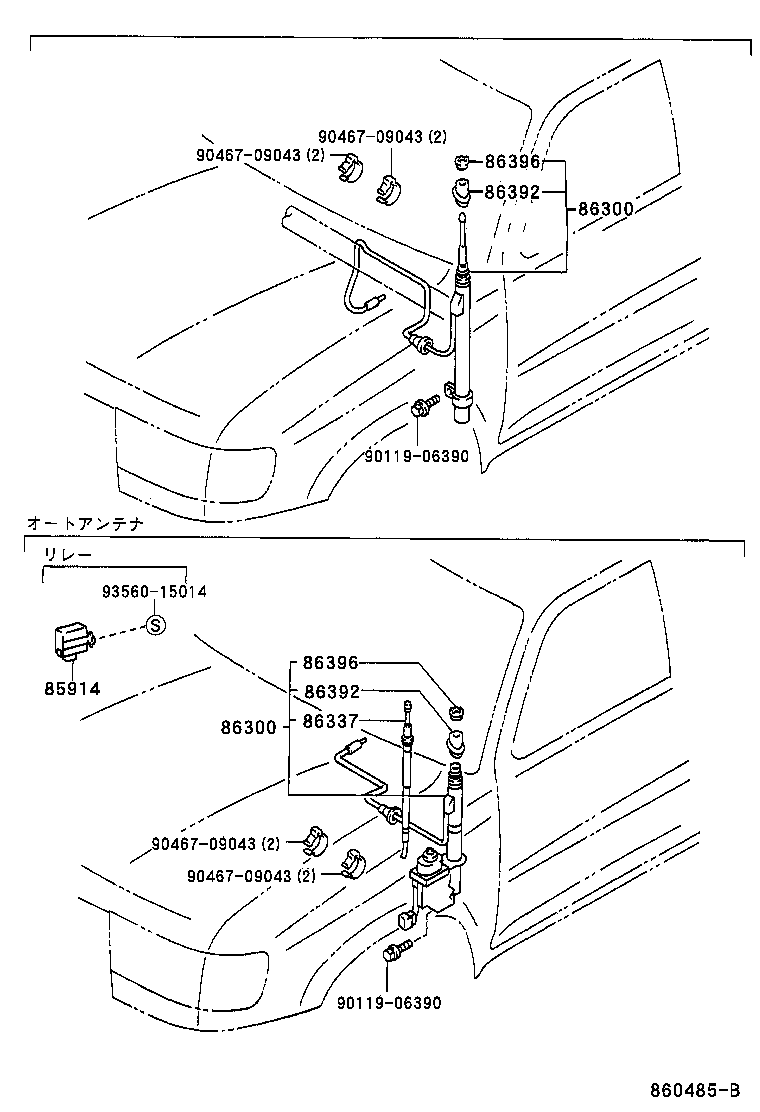

ILLUST NO. 1 OF 2(9511- )
Click highlighted areas on diagram
ﾗｼﾞｵｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-35010 |
KZN185,RZN18#,VZN18# |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-35100 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| 86300-35080 |
KZN185,RZN185..SSR |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-35100 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| 86300-35080 |
KZN185,RZN185..SSR |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-35100 |
KZN185,RZN18#,VZN18# |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-35010 |
KZN185,RZN185..SSR |
1 | ||
| 86392-35020 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-35010 |
KZN185,RZN185..SSR |
1 | ||
| 86392-35020 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-16020 |
KZN185,RZN185..SSR |
1 | ||
| 86396-89102 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-16020 |
KZN185,RZN185..SSR |
1 | ||
| 86396-89102 |
KZN185,RZN18#,VZN18# ｵ-ﾄｱﾝﾃﾅ |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90467-09043 | ||||
| 93560-15014 | ||||

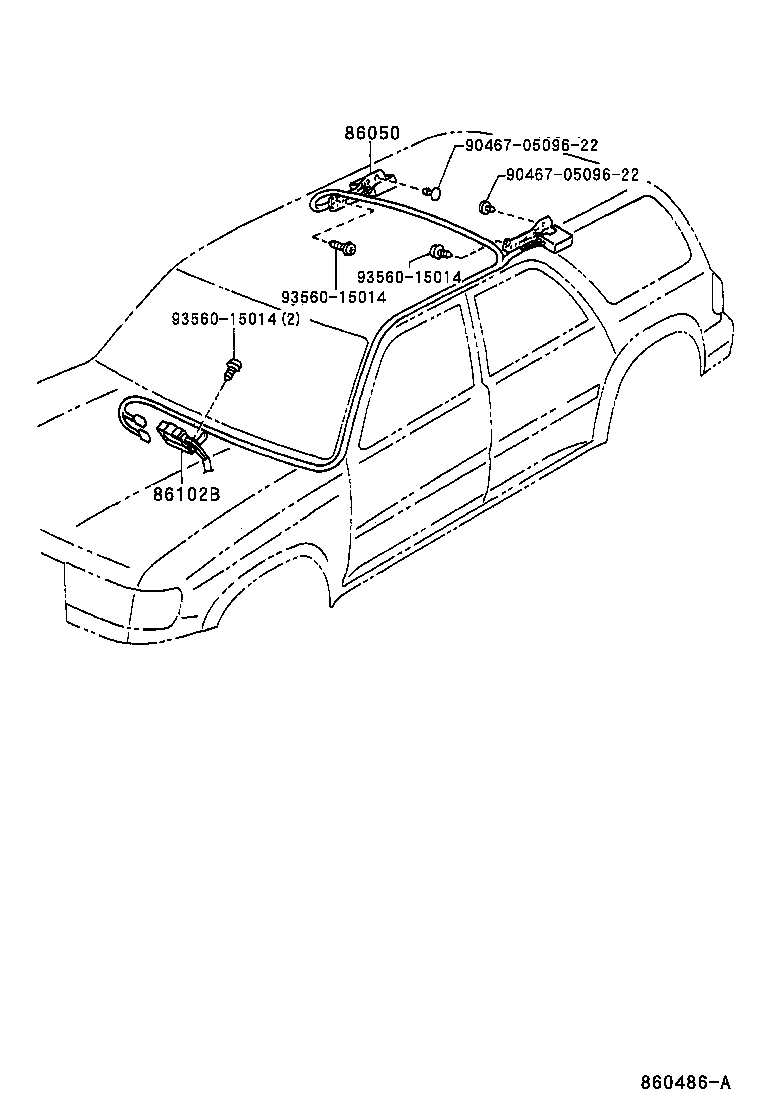

ILLUST NO. 2 OF 2(9511-9807)SSRG,SSRV,SSRX ; (9807- )WIB
Click highlighted areas on diagram
ﾃﾚﾋﾞｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 86050-35011 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 86102B - SELECTOR SUB-ASSY, ANTENNA | ||||
| 86102-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 86102-35011 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| Common parts | ||||
| 90467-0509622 | ||||
| 93560-15014 | ||||
