RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

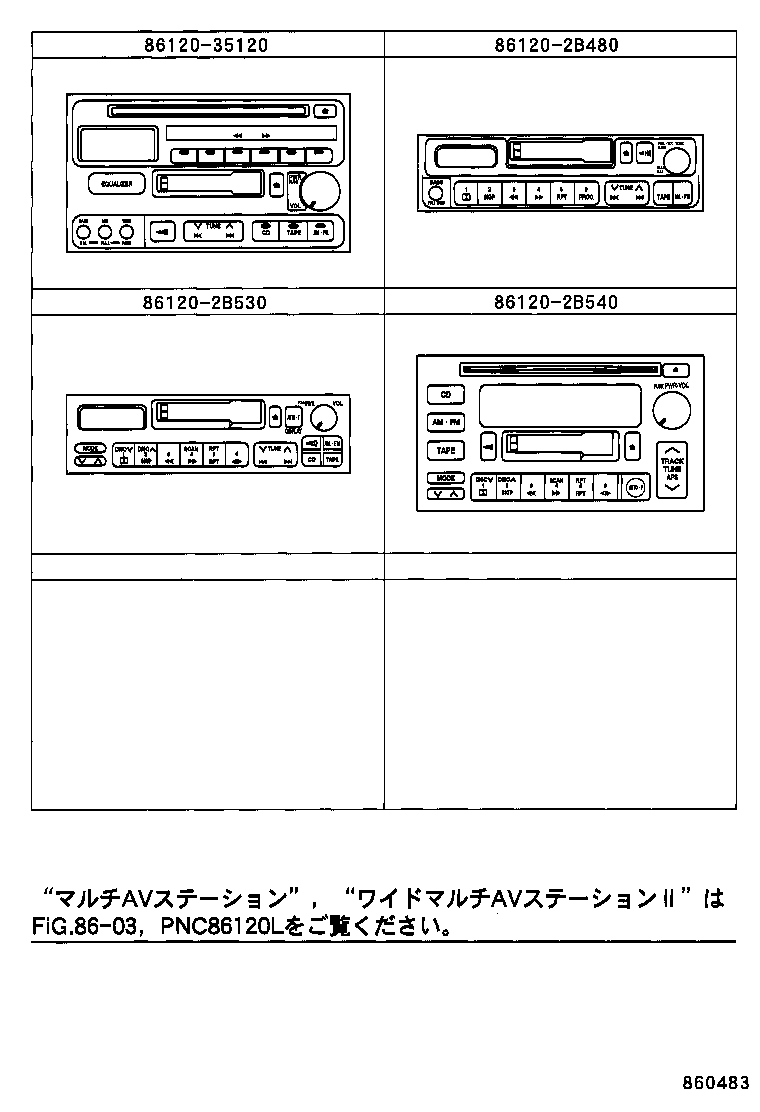

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

ﾗｼﾞｵﾚｼ-ﾊﾞ

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

ﾌﾞﾗｹﾂﾄ,ｱﾝﾌﾟﾘﾌｱｲﾔ & ｺﾝﾃﾞﾝｻ

diagram 86011A 86120 86211 86212 86280 9014950032 9014950032 9015350010 9015350010 9356015014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04083

RZN18#,VZN18#

 1
86120 - RECEIVER ASSY, RADIO
86120-2B530

KZN185,RZN185,VZN185..SSR,SSRG,SSRX

MATSUSHITA,ID=55403,AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ

 1
86120-2B480

KZN185,RZN185,VZN185..SSR,SSRG,SSRX

MATSUSHITA,ID=55401,AM/FM ｶｾﾂﾄ 4ｽﾋﾟ-ｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-35030

KDN185,KZN185,RZN18#,VZN18#

 1
86212 - BRACKET, RADIO, NO.2
86212-35030

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90149-50032
90153-50010
93560-15014
