RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

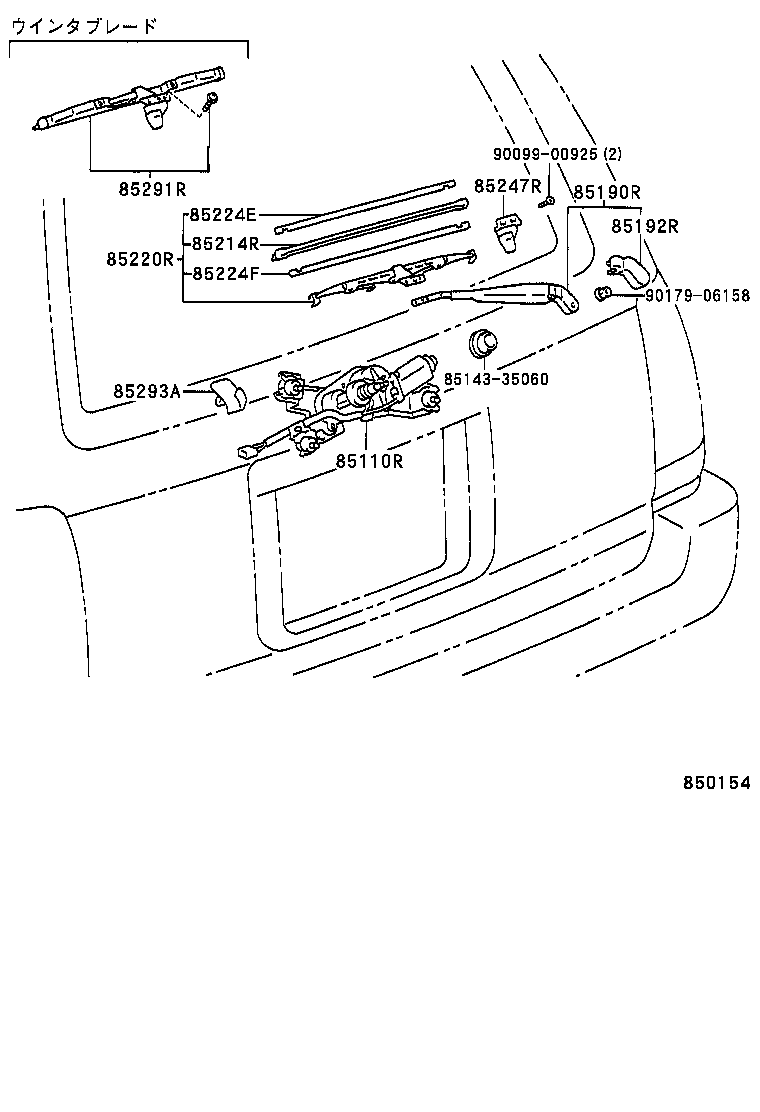

Click highlighted areas on diagram

diagram 85110R 8514335060 85190R 85192R 85214R 85220R 85224E 85224F 85247R 85291R 85293A 9009900925 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85190R - ARM ASSY, REAR WIPER
85241-35020

KDN185,KZN185,RZN18#,VZN18#

 1
85192R - COVER, REAR WIPER ARM
85245-35010

KDN185,KZN185,RZN18#,VZN18#

 1
85214R - RUBBER, REAR WIPER
85214-35060

KDN185,KZN185,RZN18#,VZN18#

 1
85220R - BLADE ASSY, REAR WIPER
85242-35010

KDN185,KZN185,RZN18#,VZN18#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85247R - SLIDER SUB-ASSY, REAR WIPER ARM
85247-35010

KDN185,KZN185,RZN18#,VZN18#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-35030

KDN185,KZN185,RZN18#,VZN18#

 1
85293A - STOPPER,REAR WIPER
85293-35010

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
85143-35060
90099-00925
90179-06158
