RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

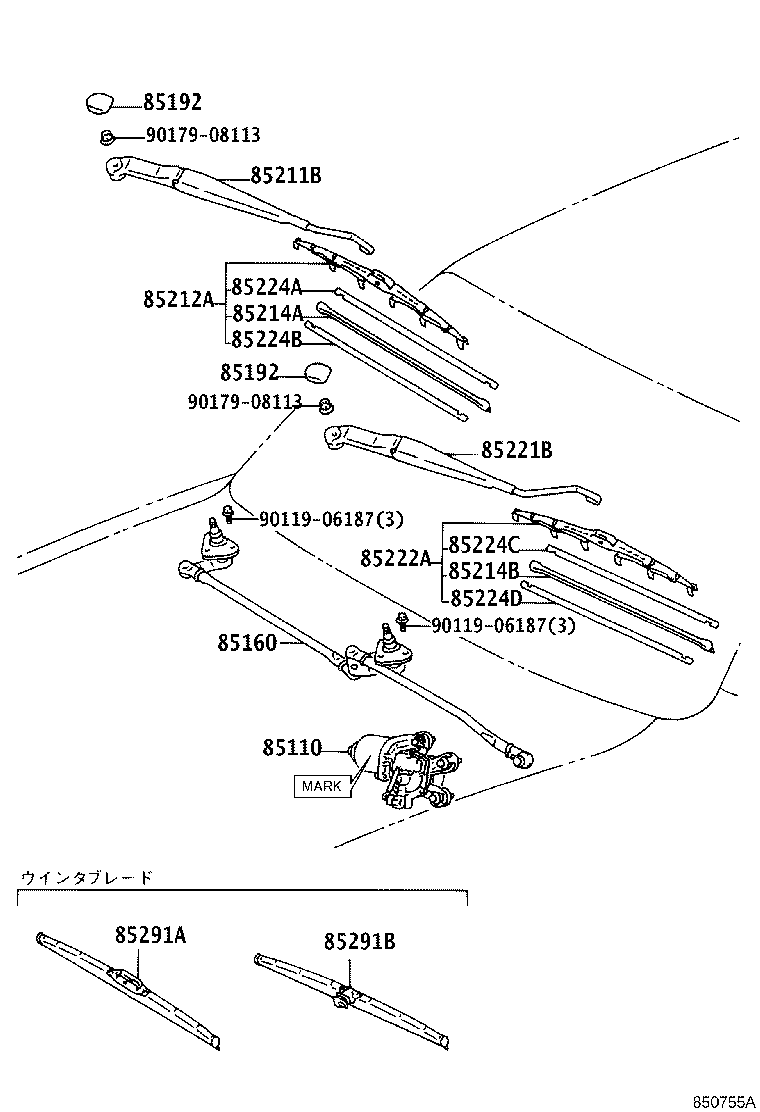

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 85291A 85291B 9011906187 9011906187 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-35220

KZN185,RZN185,VZN185

ﾏｰｸ=85110−35220

 1
85110-35340

KDN185,KZN185,RZN18#,VZN18#

ﾏｰｸ=85110−35340

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-35140

KZN185,RZN18#,VZN18#

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KDN185,KZN185,RZN18#,VZN18#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

KDN185,KZN185,RZN18#,VZN18#

 2
85211B - ARM, FRONT WIPER, RH
85211-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85212A - BLADE, FR WIPER, RH
85212-35060

KDN185,KZN185,RZN18#,VZN18#

 1
85214A - RUBBER, WIPER, RH
85214-35030

KDN185,KZN185,RZN18#,VZN18#

 1
85214B - RUBBER, WIPER, LH
85214-35040

KDN185,KZN185,RZN18#,VZN18#

 1
85221B - ARM, FRONT WIPER, LH
85221-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85222A - BLADE, FR WIPER, LH
85222-35080

KDN185,KZN185,RZN18#,VZN18#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-35010

KDN185,KZN185,RZN18#,VZN18#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-35010

KDN185,KZN185,RZN18#,VZN18#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-35040

KDN185,KZN185,RZN18#,VZN18#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-35040

KDN185,KZN185,RZN18#,VZN18#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-60020

KDN185,KZN185,RZN18#,VZN18#

 1
85291-60080

KDN185,KZN185,RZN18#,VZN18#

ｱﾘ(ﾌｲﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-30030

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
90119-06187
90179-08113
