RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

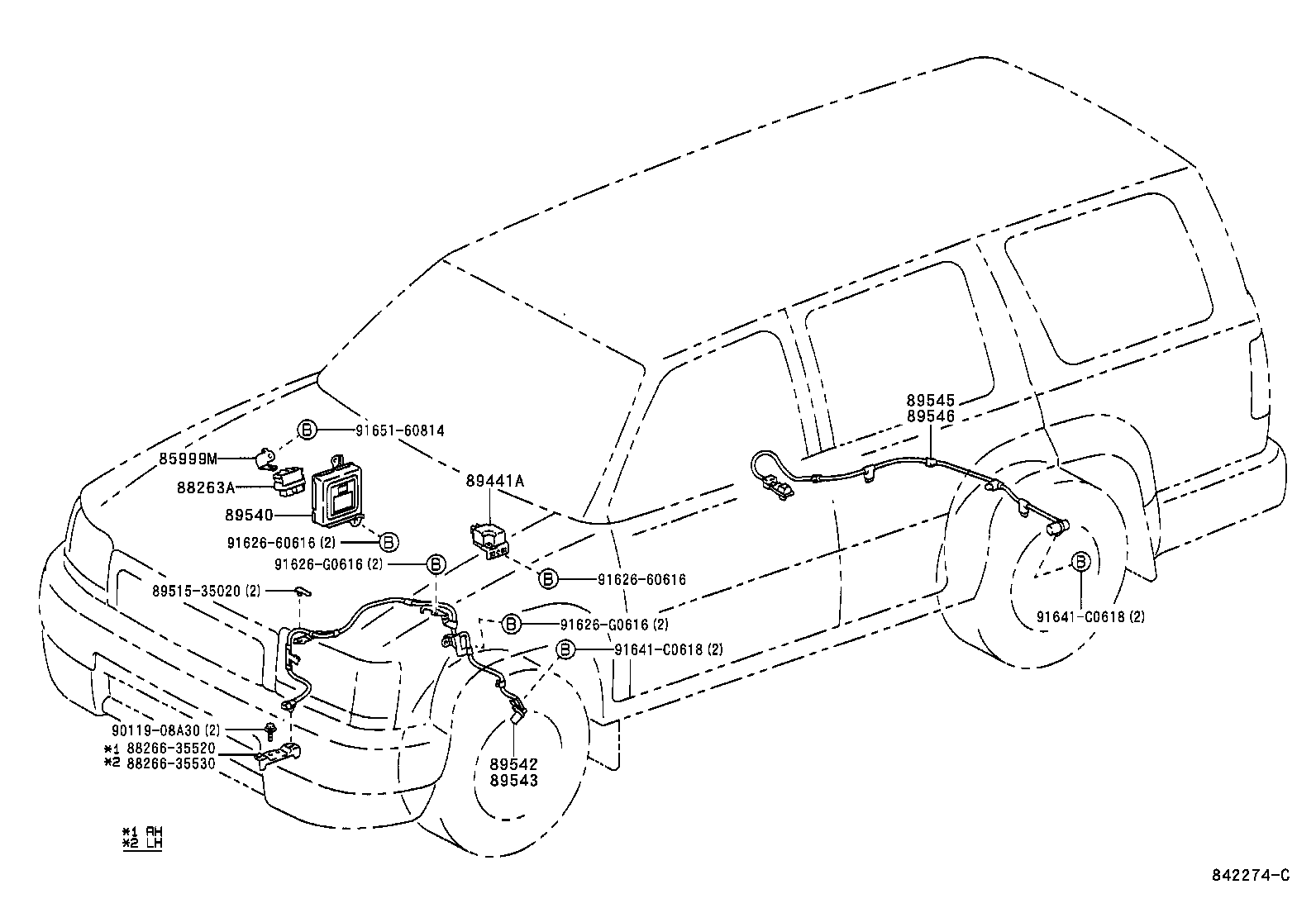

Click highlighted areas on diagram

diagram 85999M 88263A 8826635520 8826635530 89441A 8951535020 89540 89542 89543 89545 89546 9011908A30 9162660616 9162660616 91626G0616 91626G0616 91641C0618 91641C0618 9165160814
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-35070

KDN185,KZN185,RZN18#,VZN18#

 1
85999-35070

KZN185,RZN185,VZN185..EFI,TDE

 1
88263A - RELAY, SKID CONTROL
88263-35090

KZN185,RZN185,VZN185

 1
88263-35090

KDN185,KZN185,RZN18#,VZN18#

 1
88263-12070

KZN185,RZN185,VZN185

 1
89441A - SENSOR, DECELERATION
89440-35030

KDN185,KZN185,RZN185,VZN185

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-35111

KZN185,RZN185,VZN185

 1
89540-35110

KZN185,RZN185,VZN185

 1
89542 - SENSOR, SPEED, FRONT RH
89542-35050

KDN185,KZN185,RZN18#,VZN18#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-35050

KDN185,KZN185,RZN18#,VZN18#

 1
89545 - SENSOR, SPEED, REAR RH
89545-35030

KDN185,KZN185,RZN18#,VZN18#

 1
89546 - SENSOR, SPEED, REAR LH
89546-35030

KDN185,KZN185,RZN18#,VZN18#

 1
Common parts
88266-35520
88266-35530
89515-35020
90119-08A30
91626-60616
91626-G0616
91641-C0618
91651-60814
