RZN185W-GAMVK (1995)
Toyota Hilux Surf

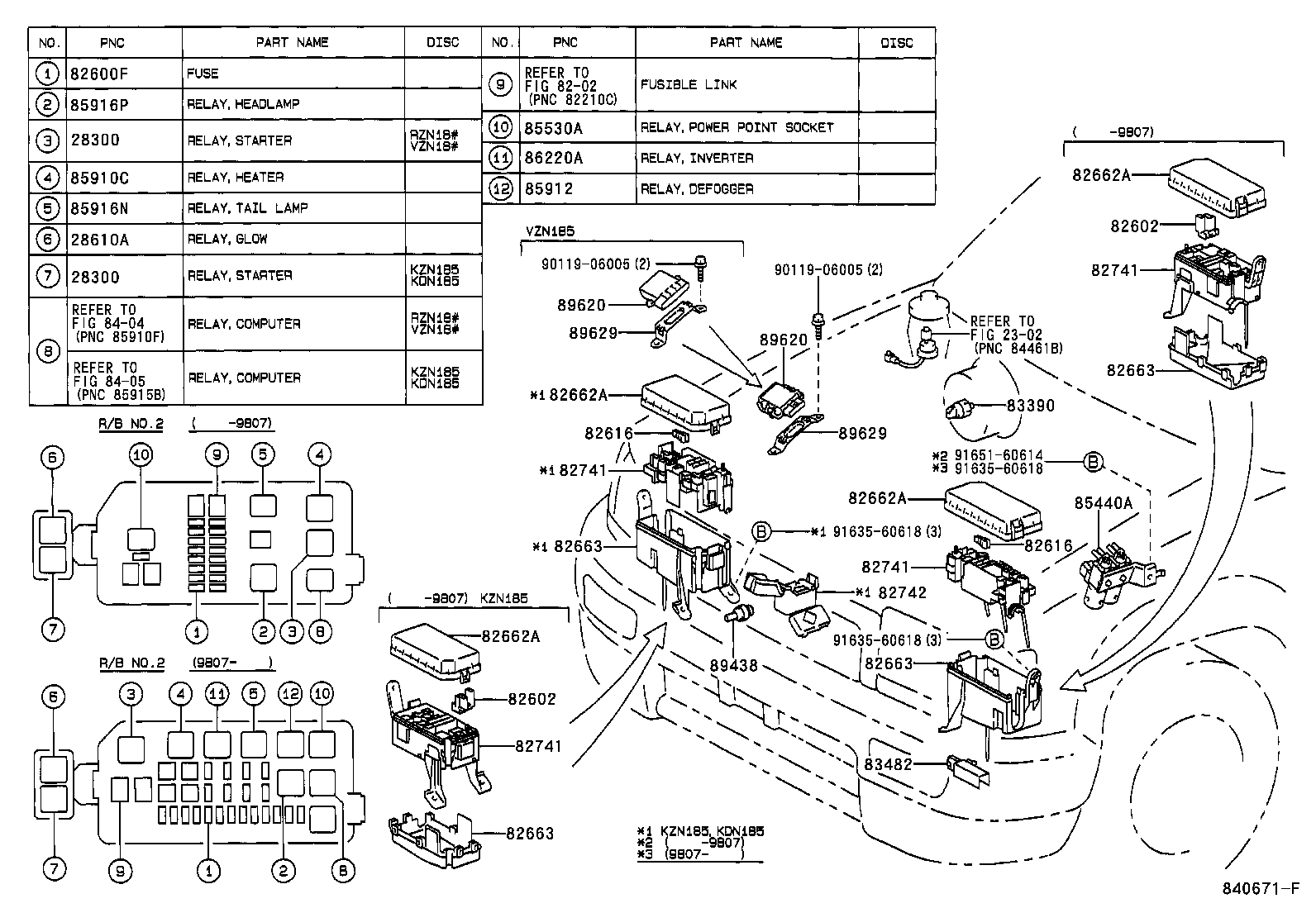

ILLUST NO. 2 OF 7(9511- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDN185,KZN185,RZN18#,VZN18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
KDN185,KZN185,RZN18#,VZN18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
KDN185,KZN185,RZN18#,VZN18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDN185,KZN185,RZN18#,VZN18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35180 |
KZN185,RZN185,VZN185 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35180 |
KZN185,RZN185,VZN185 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-35411 |
RZN185,VZN185 |
1 | ||
| 82662-35410 |
RZN185,VZN185 |
1 | ||
| 82662-35412 |
RZN185,VZN185 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-35411 |
RZN185,VZN185 |
1 | ||
| 82662-35410 |
RZN185,VZN185 |
1 | ||
| 82662-35412 |
RZN185,VZN185 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-35411 |
RZN185,VZN185 |
1 | ||
| 82662-35410 |
RZN185,VZN185 |
1 | ||
| 82662-35412 |
RZN185,VZN185 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-35411 |
RZN185,VZN185 |
1 | ||
| 82662-35410 |
RZN185,VZN185 |
1 | ||
| 82662-35412 |
RZN185,VZN185 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35020 |
RZN185,VZN185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35020 |
RZN185,VZN185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35020 |
RZN185,VZN185 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35020 |
RZN185,VZN185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-35010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-35010 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-35040 |
RZN185,VZN185 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02012 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
RZN18# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
RZN18# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-35040 |
RZN18# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-35040 |
RZN18# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91635-60618 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

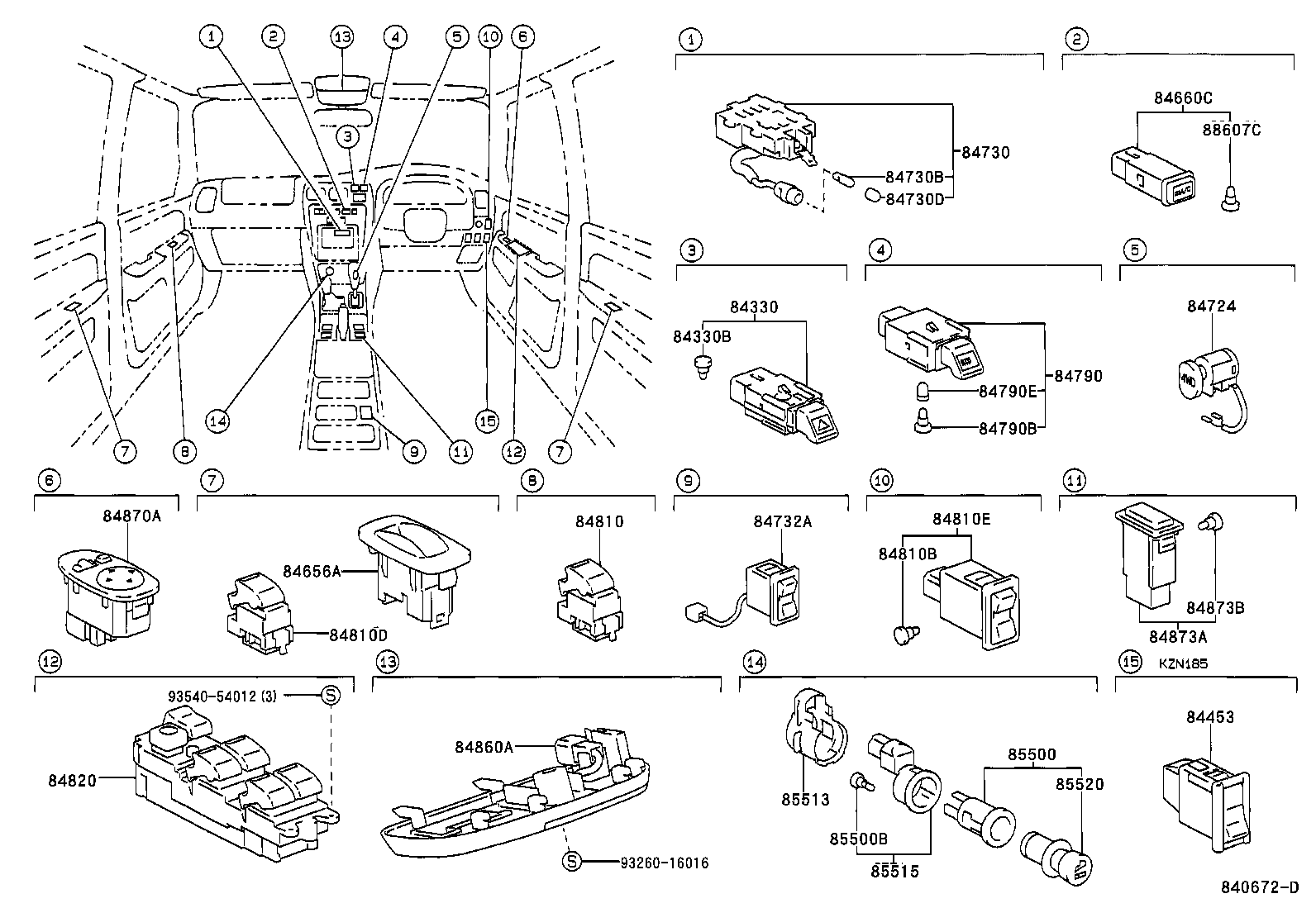

ILLUST NO. 3 OF 7(9511-9807)
ﾙ-ﾌﾍﾂﾀﾞ,ｸﾗｽﾀﾊﾟﾈﾙ & ﾄﾞｱﾄﾘﾑ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-35050 |
KZN185,RZN185,VZN185 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
KZN185,RZN185,VZN185 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-32020C0 |
KZN185,RZN185,VZN185 BLACK,TRIM1# |
2 | ||
| 84656-32020C0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX BLACK,TRIM1#,4# |
2 | ||
| 84656-32020C0 |
KZN185,RZN185..SSR BLACK,TRIM1# |
2 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 84660-35030 |
KZN185,RZN185..SSR,SSRV |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-35010C0 |
KZN185,RZN185..SSR BLACK,TRIM1# |
1 | ||
| 84724-35010C0 |
KZN185,RZN185,VZN185 BLACK,TRIM1# |
1 | ||
| 84724-35010C0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX BLACK,TRIM1#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89115 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 84732-89115 |
KZN185,RZN185..SSR,SSRV |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
KZN185,RZN185..SSR,SSRV 14V 1.4W |
1 | ||
| 90981-11014 |
KZN185,RZN185..SSR,SSRV,SSRX 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
KZN185,RZN185..SSR,SSRV |
1 | ||
| 84998-10050 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-35020 |
KDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10850 |
KZN185,RZN185,VZN185 14V 0.84W |
2 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10720 |
KZN185,RZN185,VZN185 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
KZN185,RZN185,VZN185 |
1 | ||
| 84810-12080 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH) | ||||
| 90010-01013 |
KDN185,KZN185,RZN18#,VZN18# 14V 0.84W |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-32070 |
KZN185,RZN185,VZN185 |
2 | ||
| 84810-12080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10040 |
KZN185,RZN185,VZN185 |
1 | ||
| 84820-35050 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-35020B0 |
KZN185,RZN185..SSR,SSRV,SSRX MOON MIST,TRIM1# |
1 | ||
| 84860-35020E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX MD.OAK,TRIM4# |
1 | ||
| 84860-35020B0 |
KZN185,RZN185,VZN185 MOON MIST,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
KZN185,RZN185,VZN185..SSRV,SSRX |
1 | ||
| 84870-16040 |
KZN185,RZN185,VZN185..SSRV,SSRX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-35020 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH | ||||
| 90010-01013 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
KDN185,KZN185,RZN18#,VZN18# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KZN185,RZN185..SSR,SSRV 14V 0.065A |
1 | ||
| 88607-16010 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| Common parts | ||||
| 93260-16016 | ||||
| 93540-54012 | ||||

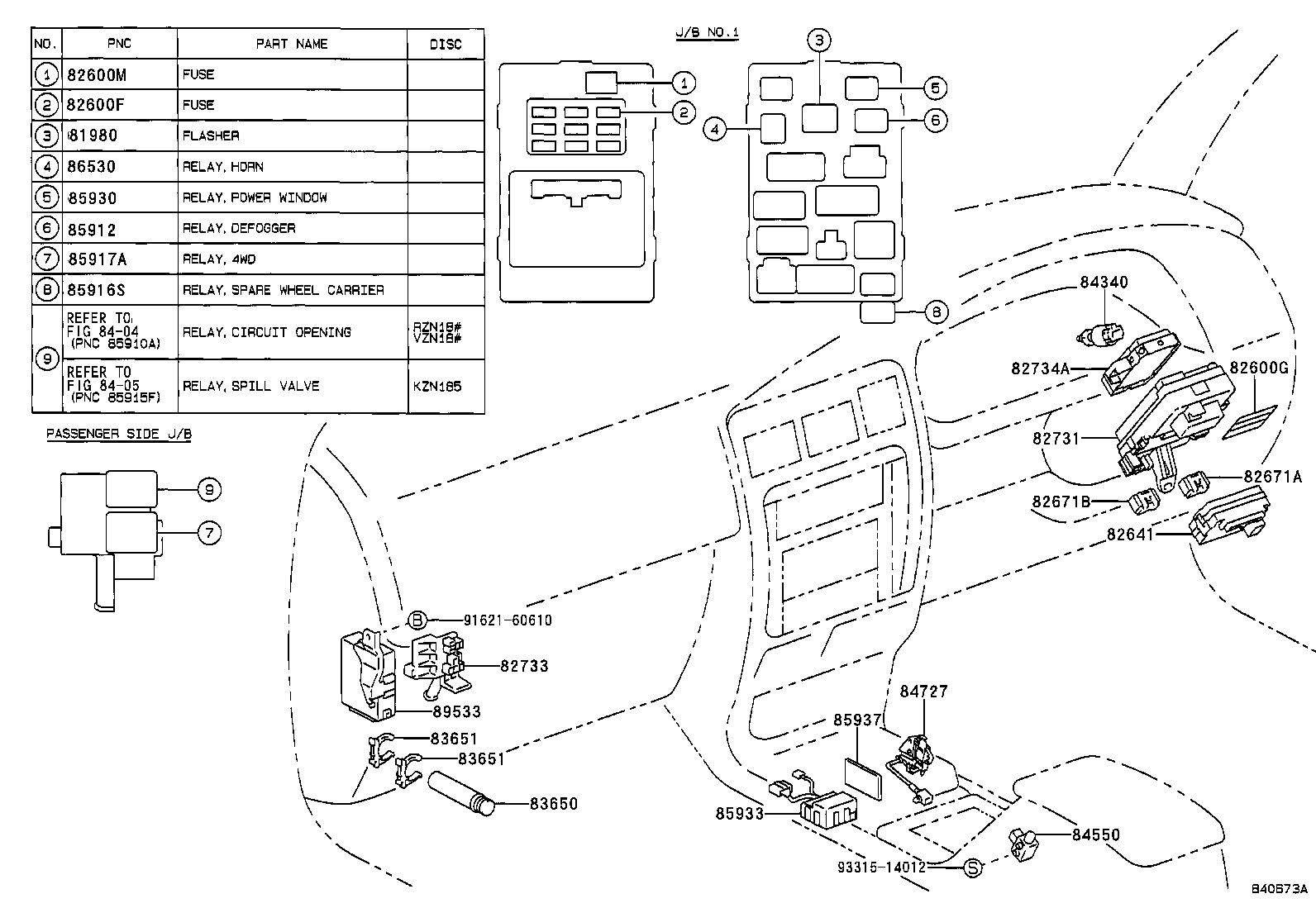

ILLUST NO. 5 OF 7(9511-9807)
ｶｳﾙ ｽｲﾂﾁ & ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KZN185,RZN18#,VZN18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDN185,KZN185,RZN18#,VZN18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
KDN185,KZN185,RZN18#,VZN18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
KDN185,KZN185,RZN18#,VZN18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDN185,KZN185,RZN18#,VZN18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-35061 |
KZN185,RZN185,VZN185 |
1 | ||
| 82683-35060 |
KZN185,RZN185,VZN185 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KDN185,KZN185,RZN18#,VZN18# 30A,ﾋﾟﾝｸ |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-35150 |
KZN185,RZN185,VZN185 |
1 | ||
| 82641-60060 |
KZN185,RZN185,VZN185 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30350 |
KZN185,RZN185,VZN185 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
KZN185,RZN185,VZN185 |
2 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
KZN185,RZN185,VZN185 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
KZN185,RZN185,VZN185 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
KZN185,RZN18#,VZN18# MATSUSHITA |
1 | ||
| 84340-35020 |
KZN185,RZN18#,VZN18# 東海理化 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85916S - RELAY, SPARE WHEEL CARRIER | ||||
| 90987-02012 |
KZN185,RZN185,VZN185..WIB |
1 | ||
| 85917A - RELAY, FOUR WHEEL DRIVE INDICATOR | ||||
| 90987-03003 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KZN185,RZN185,VZN185 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-35090 |
KZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE) |
1 | ||
| 89533-35080 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| Common parts | ||||
| 91621-60610 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||

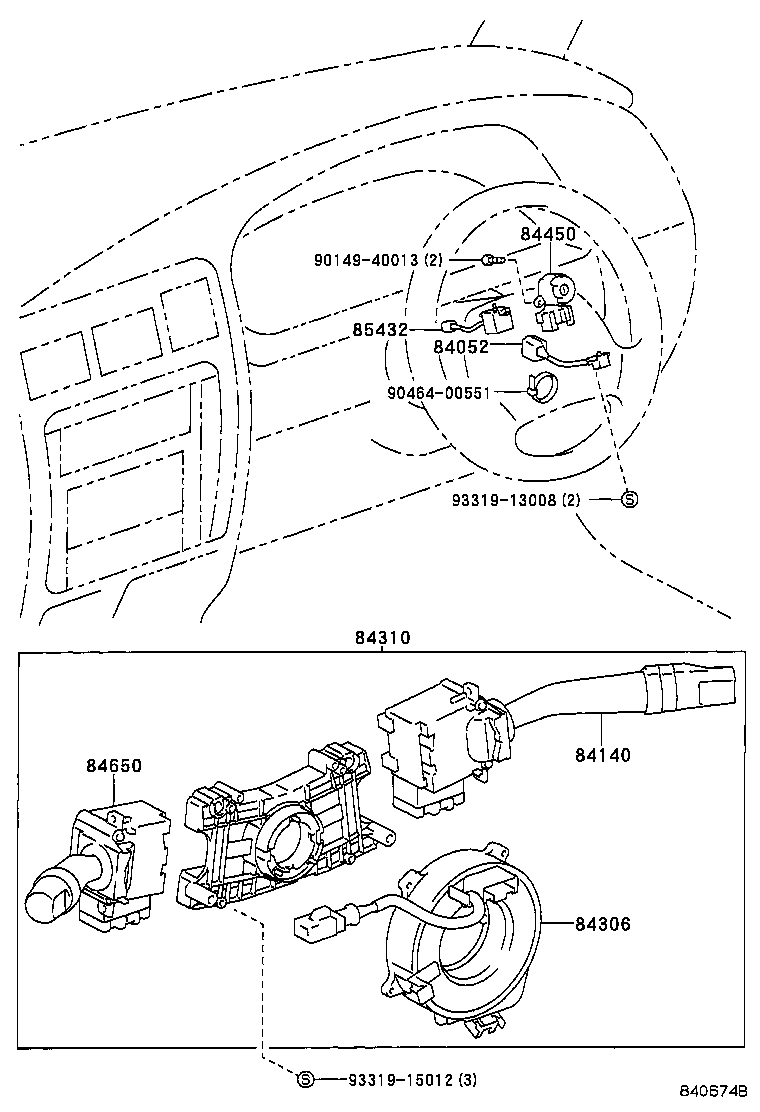

ILLUST NO. 6 OF 7(9511- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
KZN185,RZN185..5F |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26170 |
KZN185,RZN185,VZN185 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 84306-12070 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84306-35011 |
KZN185,RZN185,VZN185 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35880 |
KZN185,RZN185,VZN185 |
1 | ||
| 84310-35600 |
KZN185,RZN185,VZN185 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-35490 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

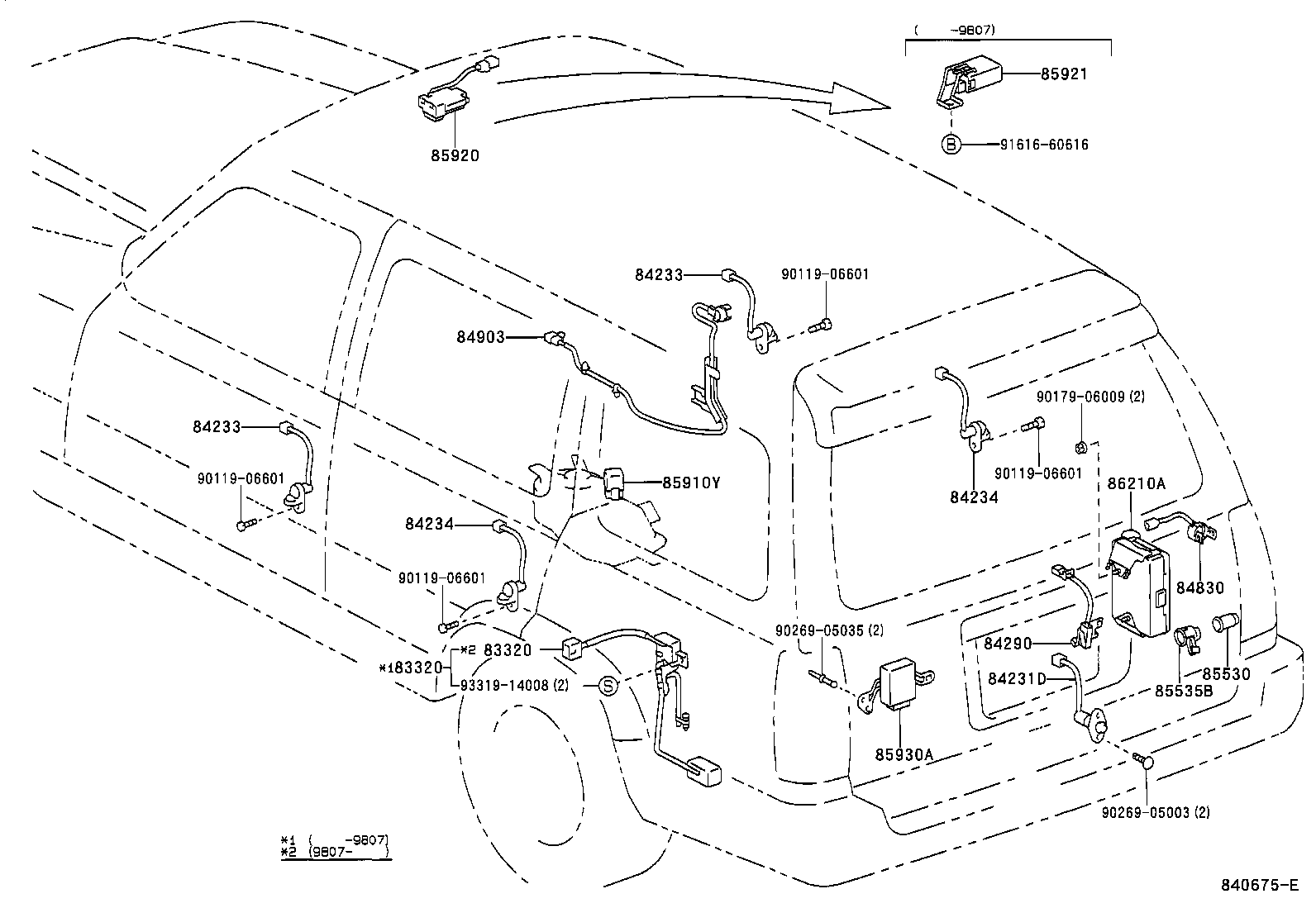

ILLUST NO. 7 OF 7(9511- )
ﾙ-ﾌ,ﾌﾛｱ & ﾄﾞｱ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80330 |
RZN185,VZN185 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80330 |
RZN185,VZN185 |
1 | ||
| 84231D - SWITCH, COURTESY LAMP (FOR TIRE CARRIER) | ||||
| 84231-35020 |
KDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
KDN185,KZN185,RZN18#,VZN18# |
2 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-35020 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 84830 - SWITCH ASSY, TAIL GATE CONTROL | ||||
| 84830-35030 |
KZN185,RZN185,VZN185 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KZN185,RZN185,VZN185 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35020B0 |
KZN185,RZN185,VZN185 MD.MOON MIST,TRIM1# |
1 | ||
| 85535-35020E0 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX OAK,TRIM4# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-04003 |
KDN185,KZN185,RZN18#,VZN18# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-35010 |
KZN185,RZN185,VZN185 |
1 | ||
| 85930A - RELAY ASSY, POWER WINDOW, NO.1 | ||||
| 85930-35020 |
KZN185,RZN185,VZN185 |
1 | ||
| 85930-35040 |
KZN185,RZN185,VZN185 |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90179-06009 | ||||
| 90269-05003 | ||||
| 90269-05035 | ||||
| 91616-60616 | ||||
| 93319-14008 | ||||

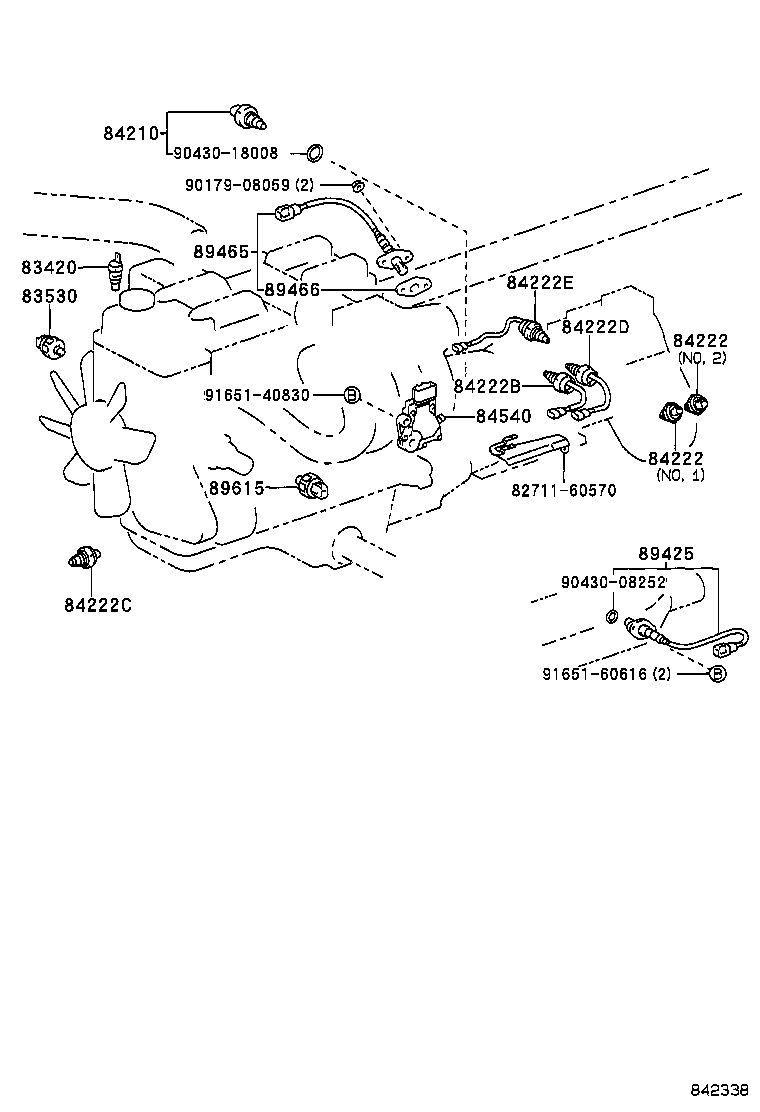

ILLUST NO. 1 OF 7(9511- )RZN18#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
RZN18# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
RZN185,VZN185 |
1 | ||
| 83530-60020 |
RZN18#,VZN18# YAZAKI |
1 | ||
| 83530-28020 |
RZN18#,VZN18# DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KZN185,RZN185..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60080 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),NO.2 |
1 | ||
| 84222-12010 |
KDN185,KZN185,RZN185,VZN185 NO.1 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60080 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD),NO.2 |
1 | ||
| 84222-12010 |
KDN185,KZN185,RZN185,VZN185 NO.1 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35080 |
KZN185..4FC;KDN185,RZN185,VZN185;KZN185..5F..(SSR,SSRV,SSRX) |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35070 |
KZN185,RZN185,VZN185 |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-35090 |
KDN185,KZN185,RZN185,VZN185 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-80032 |
RZN185..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39735 |
RZN185..5F |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZN18#,VZN18# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-50010 |
RZN18# |
1 | ||
| Common parts | ||||
| 82711-60570 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
