RZN185W-GAMVK (1995)
Toyota Hilux Surf

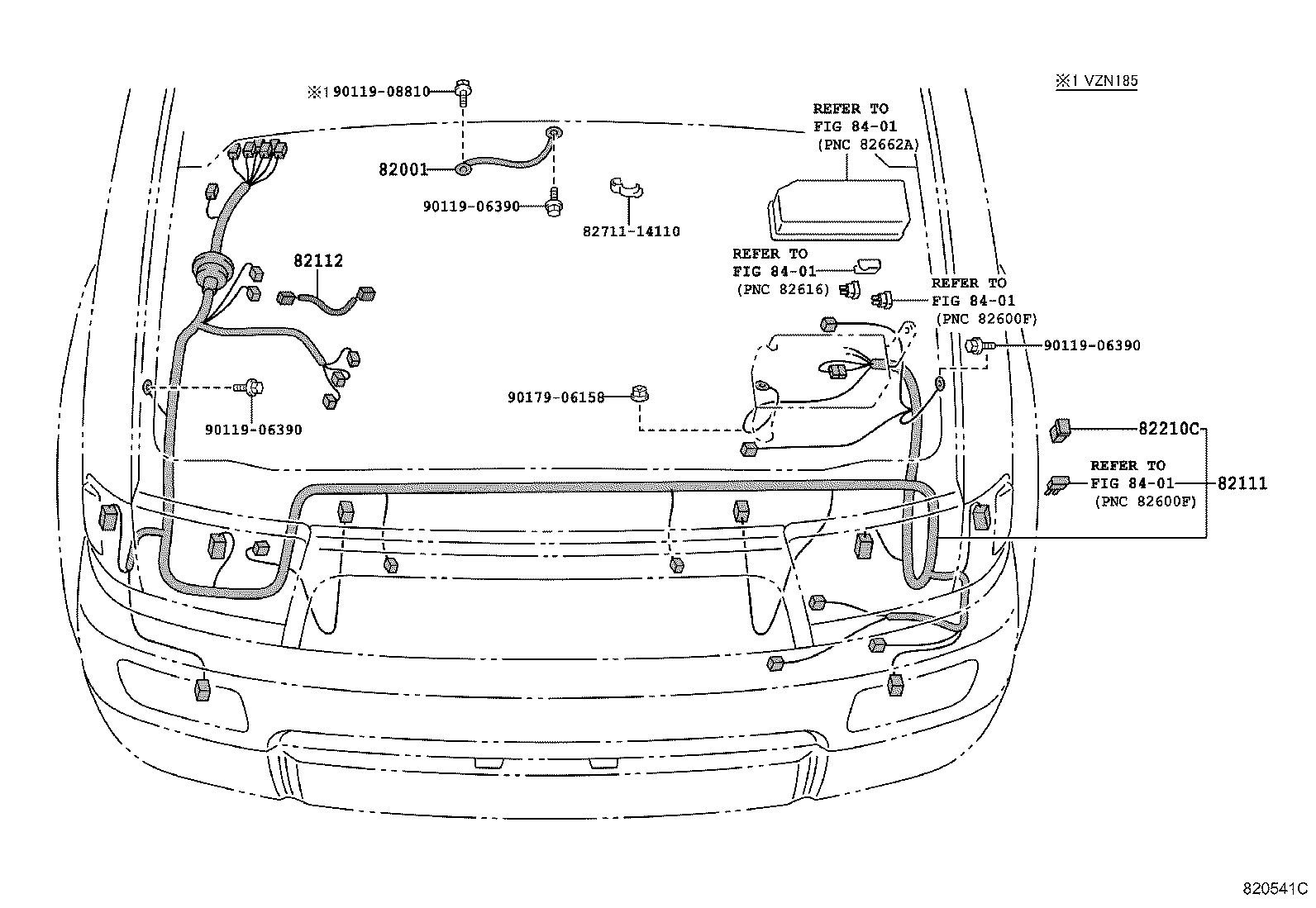

ILLUST NO. 1 OF 7(9511-0008)
ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
RZN18# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3D500 |
RZN185 ｱﾘ(ABS) |
1 | ||
| 82111-3D490 |
RZN185 |
1 | ||
| 82111-3D501 |
RZN185 ｱﾘ(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
RZN185,VZN185;KZN185..SSRX..TDE;KZN185..SSR,SSRG,SSRV 100A,ｵｽ端子,青,TAIHEIYO |
1 | ||
| 90982-08282 |
KZN185,RZN185,VZN185 50A,ﾒｽ端子,赤,YAZAKI |
1 | ||
| 90982-08273 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV 100A,ｵｽ端子,青,YAZAKI |
1 | ||
| 90982-08283 |
RZN185;KZN185..(SSR,SSRV,SSRX)..TDE;KZN185,RZN180,VZN18#..(SPR,SSRG,SSRX)..(EFI,TDI) 30A,ﾒｽ端子,桃,TAIHEIYO |
1 | ||
| 90982-08202 |
RZN185,VZN185 60A,ｵｽ端子,黄,TAIHEIYO |
1 | ||
| 90982-08284 |
KDN185,KZN185,RZN18#,VZN18# 40A,ﾒｽ端子,緑,TAIHEIYO |
1 | ||
| 90982-08285 |
KZN185,RZN185,VZN185 50A,ﾒｽ端子,赤,TAIHEIYO |
1 | ||
| 90982-08280 |
RZN180..SPR;KZN185,RZN185,VZN18# 30A,ﾒｽ端子,桃,YAZAKI |
1 | ||
| 90982-08281 |
KDN185,KZN185,RZN18#,VZN18# 40A,ﾒｽ端子,緑,YAZAKI |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06390 | ||||
| 90119-08810 | ||||
| 90179-06158 | ||||

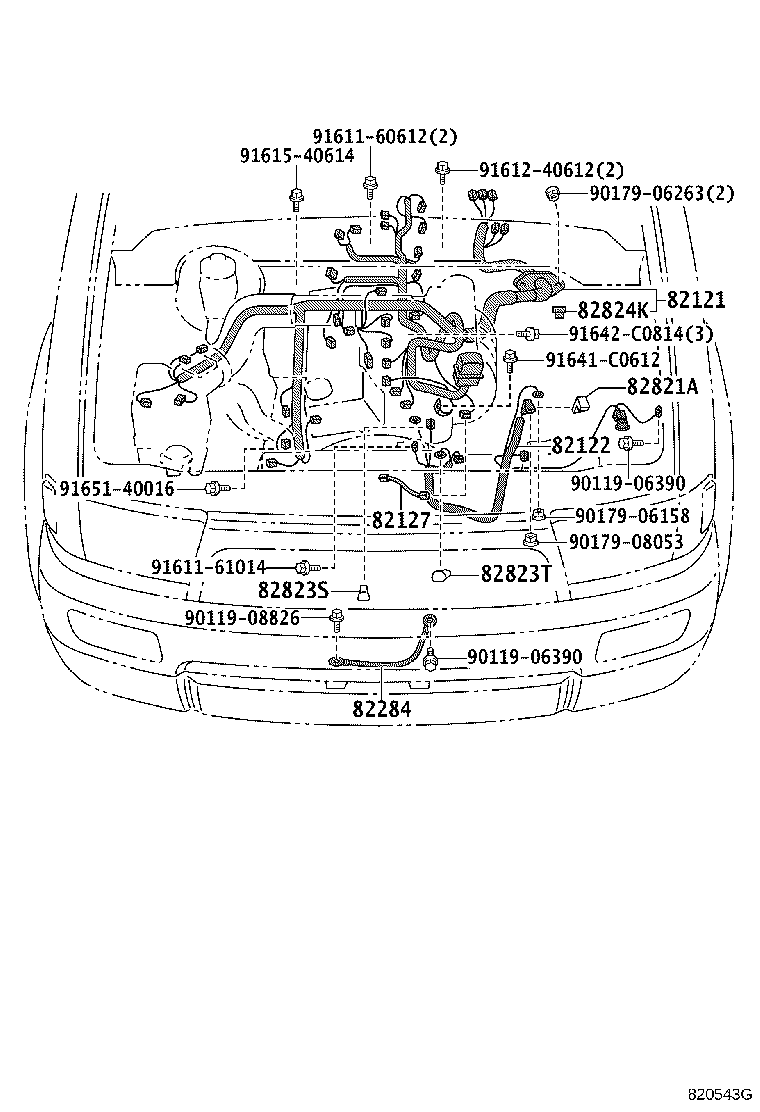

ILLUST NO. 2 OF 7(9511- )RZN18#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3D090 |
RZN185..5F |
1 | ||
| 82121-3D860 |
RZN185..WIB..5F ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD) |
1 | ||
| 82121-3D091 |
RZN185..5F |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35430 |
RZN18# |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-35080 |
KZN185..SSRX..TDI;KZN185,RZN185,VZN185..EFI,TDE |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-35020 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV ｱﾘ(1ﾊﾞﾂﾃﾘ) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35040 |
RZN18# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08826 | ||||
| 90179-06158 | ||||
| 90179-06263 | ||||
| 90179-08053 | ||||
| 91611-60612 | ||||
| 91611-61014 | ||||
| 91612-40612 | ||||
| 91615-40614 | ||||
| 91641-C0612 | ||||
| 91642-C0814 | ||||
| 91651-40016 | ||||

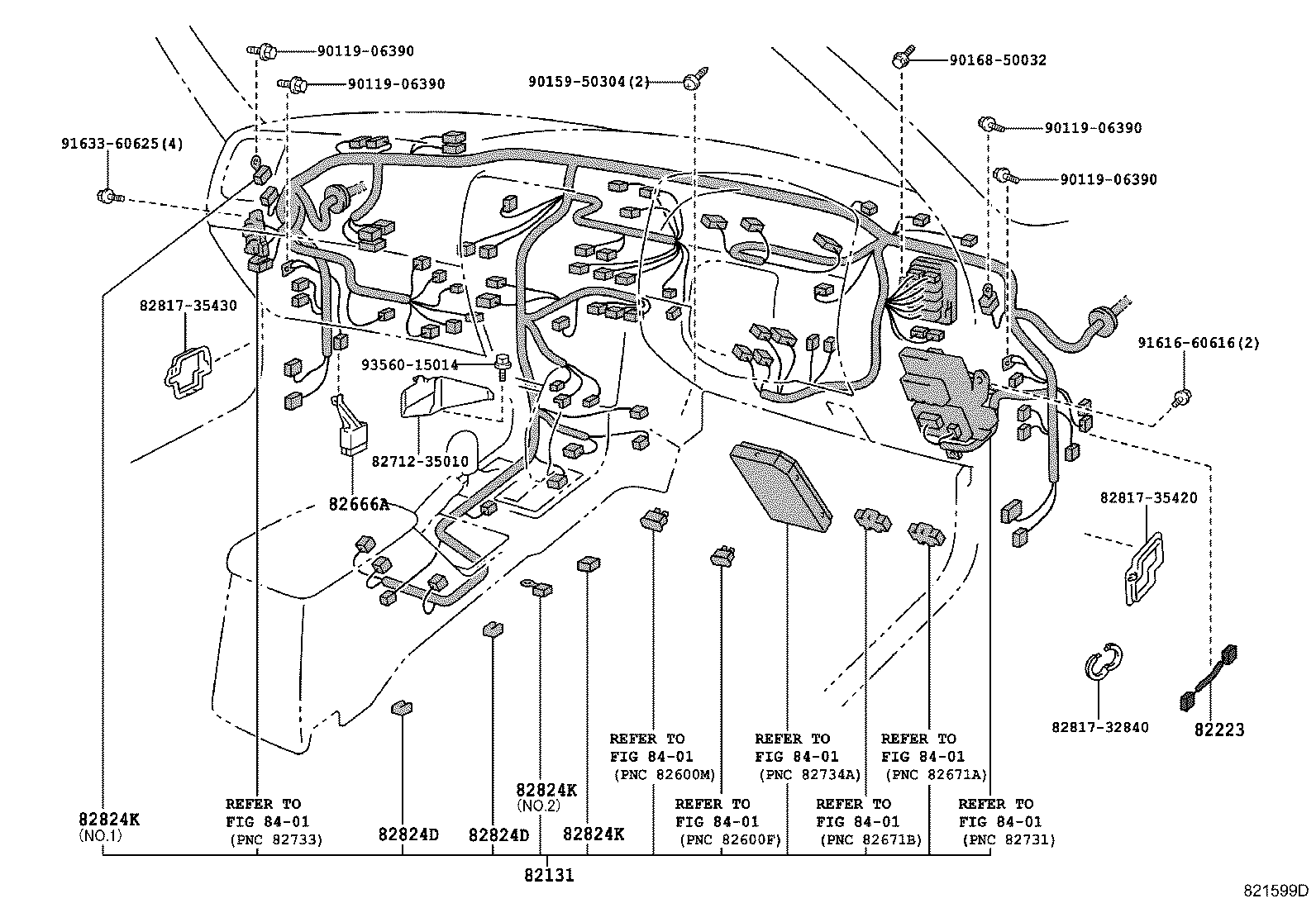

ILLUST NO. 3 OF 7(9511- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-35510 |
RZN185..WIB..5F ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-35490 |
RZN185..5F |
1 | ||
| 82135-35511 |
RZN185..WIB..5F ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-35491 |
RZN185..5F |
1 | ||
| 82135-35492 |
RZN185..5F..(SSR,SSRV) |
1 | ||
| 82135-3G020 |
RZN185..WIB..5F ｱﾘ(ﾏﾙﾁﾓ-ﾄﾞ4WD & ABS & ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-35512 |
RZN185..WIB..5F ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
KDN185,KZN185,RZN18#,VZN18#..DCR,EFI,TDI |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
KDN185,KZN185,RZN18#,VZN18#..DCR,EFI,TDI |
1 | ||
| Common parts | ||||
| 82712-35010 | ||||
| 82817-32840 | ||||
| 82817-35420 | ||||
| 82817-35430 | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 90168-50032 | ||||
| 91616-60616 | ||||
| 91633-60625 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 7(9511- )RZN180..SPR ; (9511- )KZN185,RZN185,VZN18#
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34010 | ||||
| 82711-1B010 | ||||
| 82711-1E350 | ||||
| 82711-34310 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-34100 | ||||
| 82715-34120 | ||||
| 82715-34130 | ||||
| 82715-34140 | ||||
| 82715-34150 | ||||
| 82715-34160 | ||||
| 82715-34170 | ||||
| 82715-34190 | ||||
| 82715-34210 | ||||
| 82715-34240 | ||||
| 82715-34250 | ||||
| 82715-34260 | ||||
| 82715-34300 | ||||
| 82715-34310 | ||||
| 82715-34340 | ||||
| 82715-34390 | ||||
| 82715-35230 | ||||
| 82715-35320 | ||||
| 82715-35430 | ||||
| 82715-35480 | ||||
| 82715-35490 | ||||
| 82715-35510 | ||||
| 82715-35540 | ||||
| 82715-35600 | ||||
| 82715-35630 | ||||
| 82715-35710 | ||||
| 82715-35730 | ||||
| 82715-35740 | ||||
| 82715-35770 | ||||
| 82715-35800 | ||||
| 82715-35810 | ||||
| 82715-35830 | ||||
| 82715-35870 | ||||
| 82715-3D270 | ||||
| 82715-3D370 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 90119-08A21 | ||||
| 90119-10550 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60812 | ||||
| 91611-61014 | ||||
| 91621-60610 | ||||
| 91621-60612 | ||||
| 91621-60614 | ||||
| 91621-60814 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91651-41016 | ||||

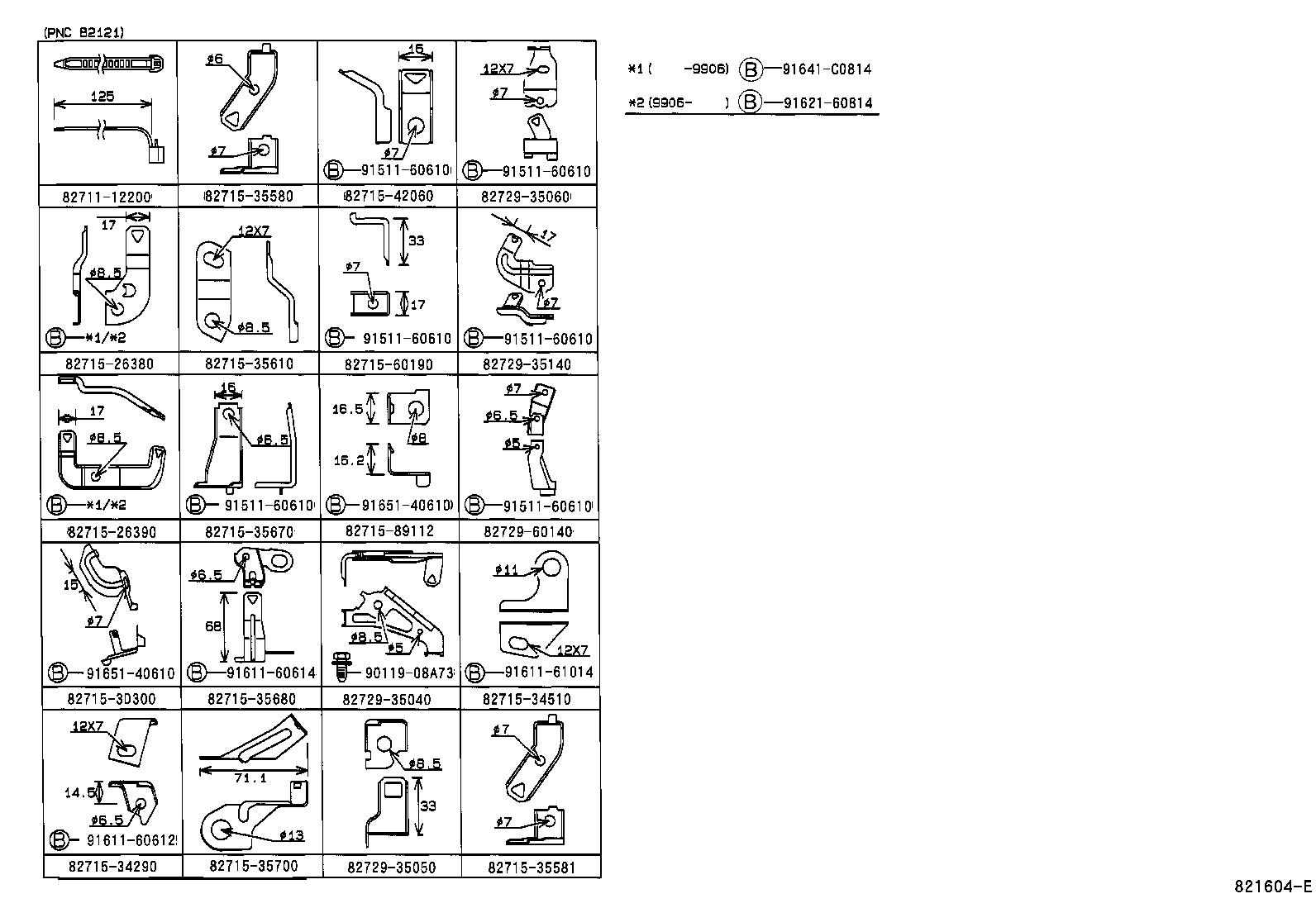

ILLUST NO. 5 OF 7(9511- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82715-26380 | ||||
| 82715-26390 | ||||
| 82715-34290 | ||||
| 82715-34510 | ||||
| 82715-35580 | ||||
| 82715-35581 | ||||
| 82715-35610 | ||||
| 82715-35670 | ||||
| 82715-35680 | ||||
| 82715-35700 | ||||
| 82715-3D300 | ||||
| 82715-42060 | ||||
| 82715-60190 | ||||
| 82715-89112 | ||||
| 82729-35040 | ||||
| 82729-35050 | ||||
| 82729-35060 | ||||
| 82729-35140 | ||||
| 82729-60140 | ||||
| 90119-08A73 | ||||
| 91511-60610 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-61014 | ||||
| 91621-60814 | ||||
| 91641-C0814 | ||||
| 91651-40610 | ||||

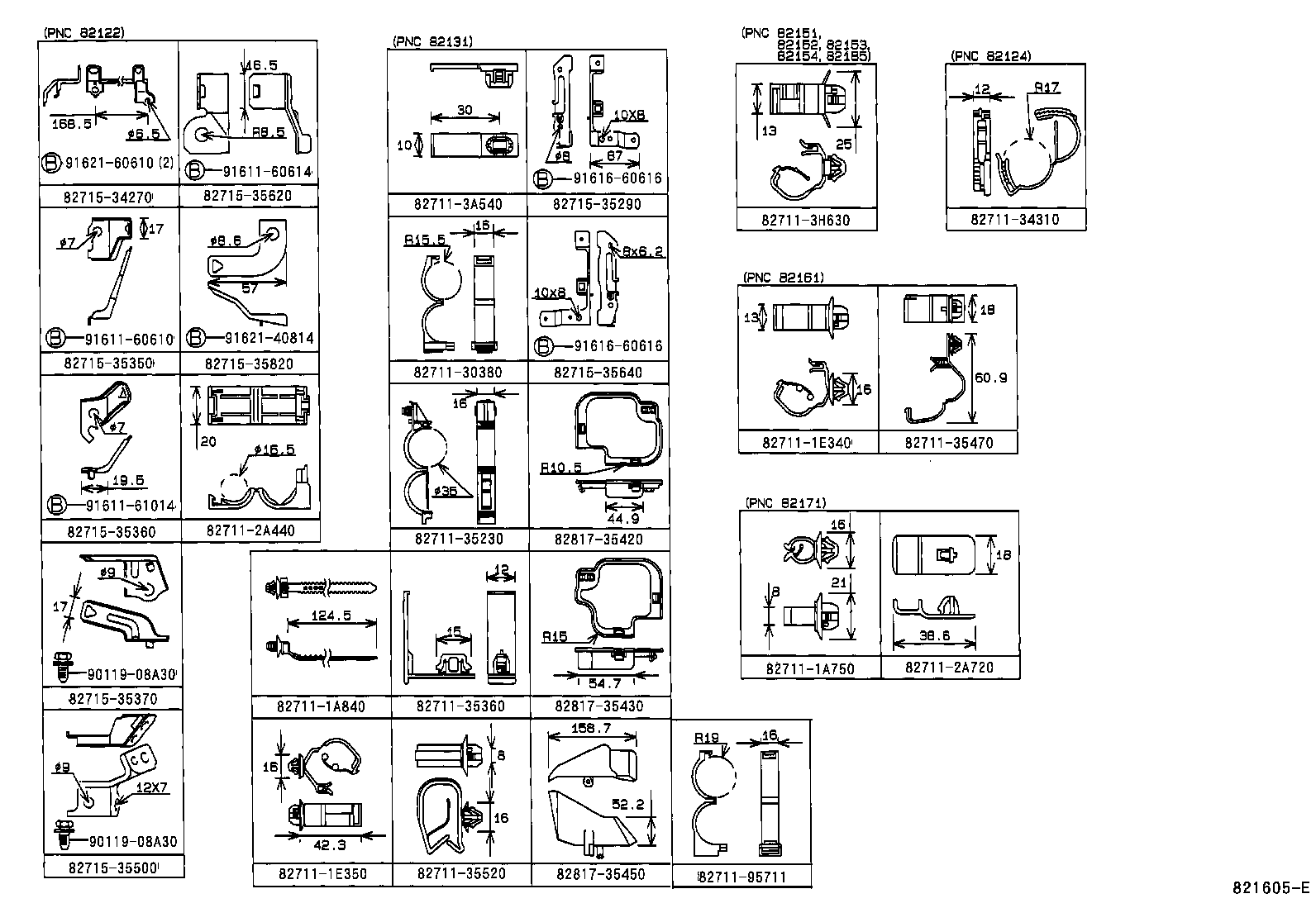

ILLUST NO. 5 OF 7(9511- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-1A840 | ||||
| 82711-1E340 | ||||
| 82711-1E350 | ||||
| 82711-2A440 | ||||
| 82711-2A720 | ||||
| 82711-30380 | ||||
| 82711-34310 | ||||
| 82711-35230 | ||||
| 82711-35360 | ||||
| 82711-35470 | ||||
| 82711-35520 | ||||
| 82711-3A540 | ||||
| 82711-3H630 | ||||
| 82711-95711 | ||||
| 82715-34270 | ||||
| 82715-35290 | ||||
| 82715-35350 | ||||
| 82715-35360 | ||||
| 82715-35370 | ||||
| 82715-35500 | ||||
| 82715-35620 | ||||
| 82715-35640 | ||||
| 82715-35820 | ||||
| 82817-35420 | ||||
| 82817-35430 | ||||
| 82817-35450 | ||||
| 90119-08A30 | ||||
| 91611-60610 | ||||
| 91611-60614 | ||||
| 91611-61014 | ||||
| 91616-60616 | ||||
| 91621-40814 | ||||
| 91621-60610 | ||||
ILLUST NO. 6 OF 7(9511- )
ﾀﾞｲｵ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
RZN185 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
RZN18#;KZN185..5F..TDI;KZN185..NOB..TDI;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
RZN185 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
RZN18#;KZN185..5F..TDI;KZN185..NOB..TDI;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
RZN185 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
RZN18#;KZN185..5F..TDI;KZN185..NOB..TDI;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
RZN185 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
RZN185;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
RZN18#;KZN185..5F..TDI;KZN185..NOB..TDI;KZN185..SSRX..TDE;KZN185,VZN185..SSR,SSRG,SSRV TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||

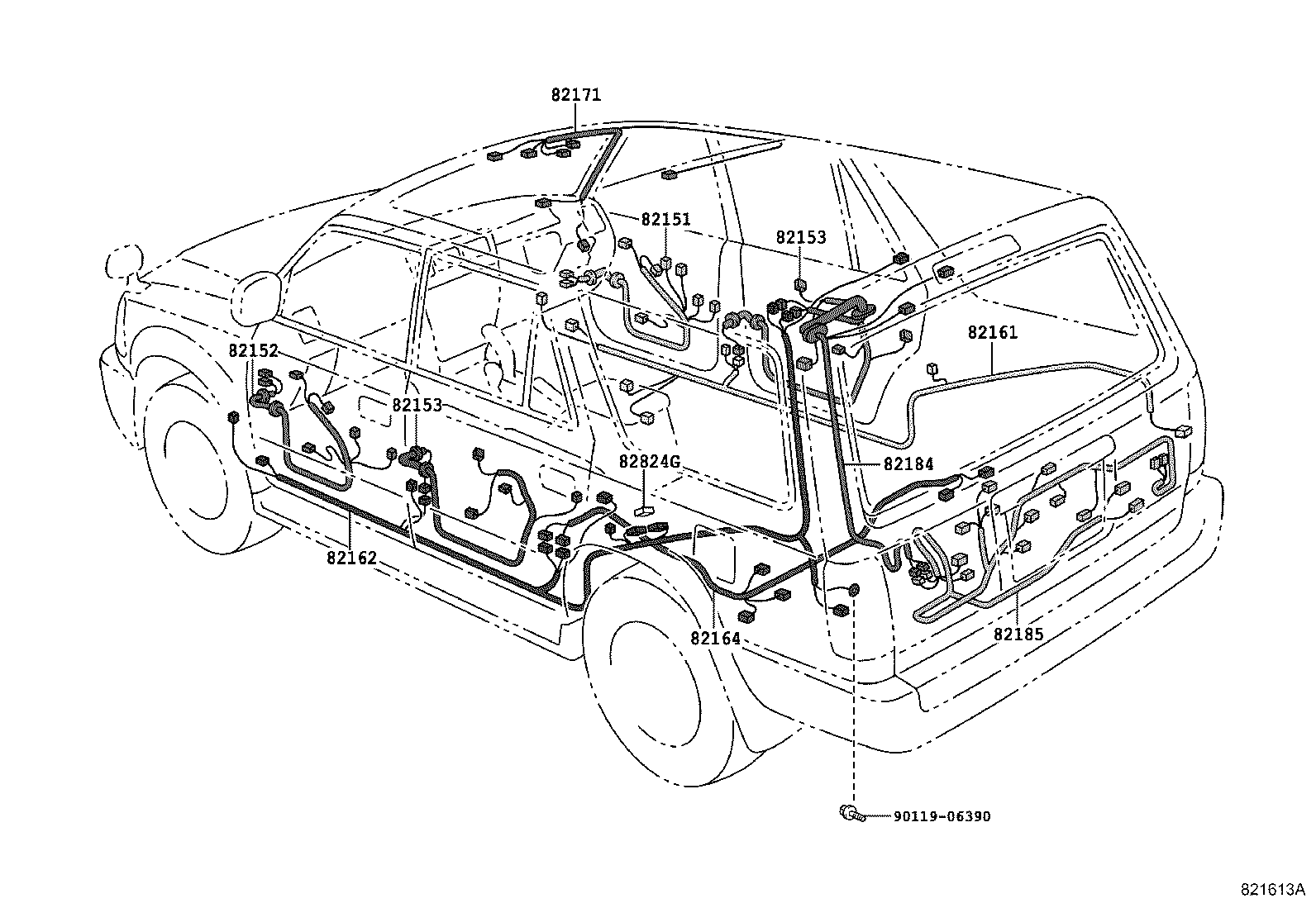

ILLUST NO. 4 OF 7(9511- )
ﾙ-ﾌ,ﾄﾞｱ & ﾌﾛｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-35101 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 82151-35100 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82151-35111 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82151-35110 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-35100 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152-35090 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82152-35091 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 82152-35101 |
RZN185..SSRV,SSRX;KZN185..WIB..5F..TDE;KZN185..NOB..SSRX..TDE;KZN185,VZN185..WIB..4FC ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-35060 |
KZN185,RZN185,VZN185 |
2 | ||
| 82153-35061 |
KZN185,RZN185,VZN185 |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-35060 |
KZN185,RZN185,VZN185 |
2 | ||
| 82153-35061 |
KZN185,RZN185,VZN185 |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-35030 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82161-35131 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 82161-35130 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82161-35040 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 82161-35140 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82161-35141 |
KZN185,RZN185,VZN185 ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-35210 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82162-35090 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ABS) OR ｱﾘ(ABS & ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82162-35230 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ABS) OR ｱﾘ(ABS & ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82162-35070 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82162-35220 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82162-35231 |
KZN185,RZN185,VZN185 |
1 | ||
| 82162-35080 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-35720 |
KZN185..WIB..4FC..SSRX..TDI;KZN185,RZN185,VZN185..(SSR,SSRV,SSRX)..(EFI,TDE) ｱﾘ(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-35250 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-35241 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82171-35240 |
KZN185,RZN185..SSR,SSRV,SSRX |
1 | ||
| 82171-35260 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35251 |
KZN185,RZN185..SSR,SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-35261 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35280 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ & ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35281 |
KZN185,RZN185..SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ & ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35252 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-35262 |
KZN185,RZN185,VZN185..SSRV,SSRX ｱﾘ(ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35282 |
KZN185,RZN185,VZN185..SSRV,SSRX ｱﾘ(ｻﾝﾙ-ﾌ & ﾌｲ-ﾙﾄﾞﾓﾆﾀ) |
1 | ||
| 82171-35242 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-35090 |
KZN185,RZN185,VZN185..SSR,SSRV,SSRX |
1 | ||
| 82184-35110 |
KZN185,RZN185,VZN185..SSRG,SSRV,SSRX ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ & ﾘﾔ ｽﾎﾟｲﾗ) OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82184-35100 |
KZN185,RZN185,VZN185..WIB..(SSRV,SSRX) ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-35041 |
KZN185,RZN185,VZN185..WIB ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
1 | ||
| 82185-35030 |
KZN185,RZN185,VZN185 ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾌﾚ-ﾑ ﾂﾞｹ) |
1 | ||
| 82185-35040 |
KZN185,RZN185..WIB..(SSRV,SSRX) ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

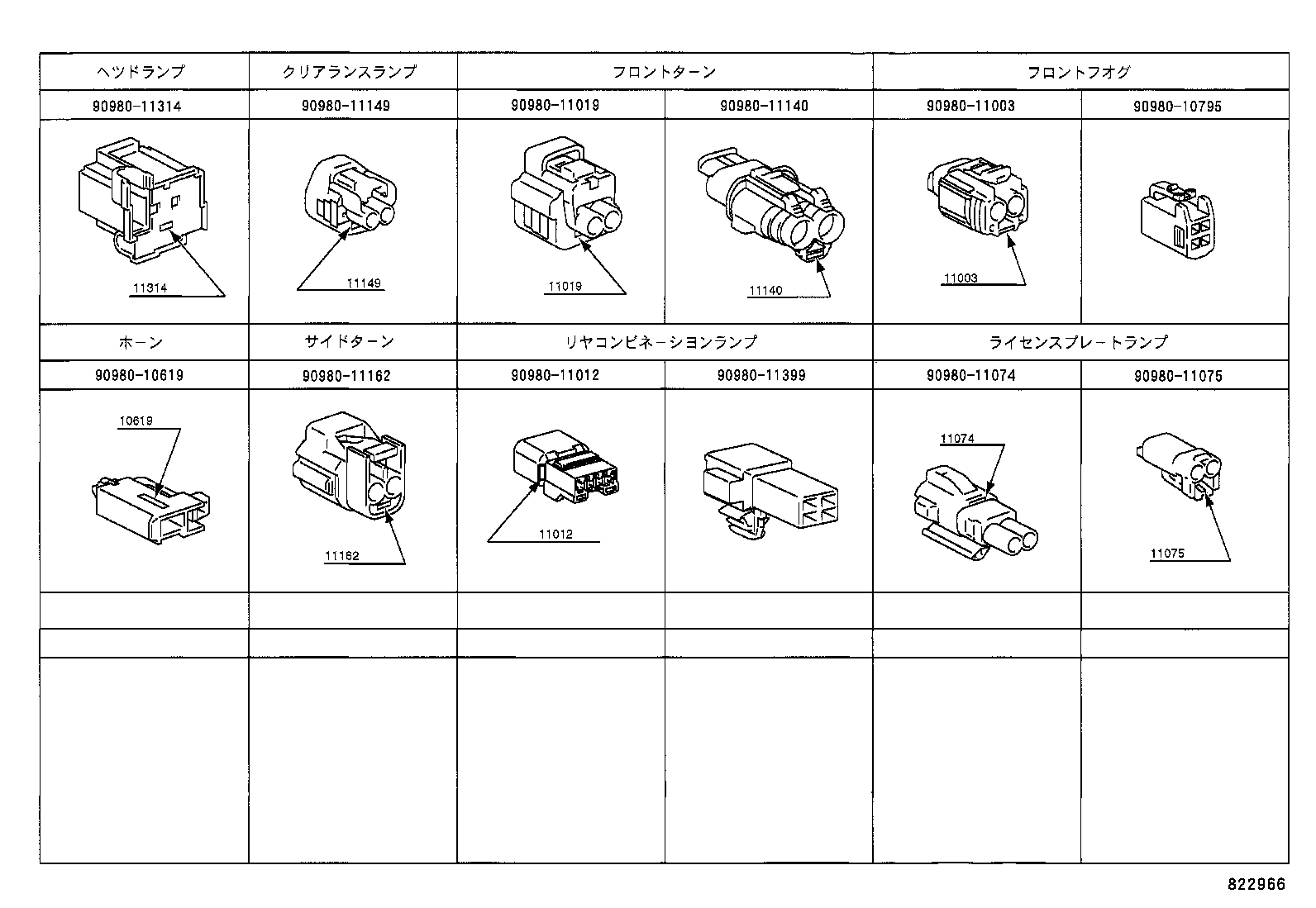

ILLUST NO. 7 OF 7(9511- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-11003 | ||||
| 90980-11012 | ||||
| 90980-11019 | ||||
| 90980-11074 | ||||
| 90980-11075 | ||||
| 90980-11140 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11399 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
