RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

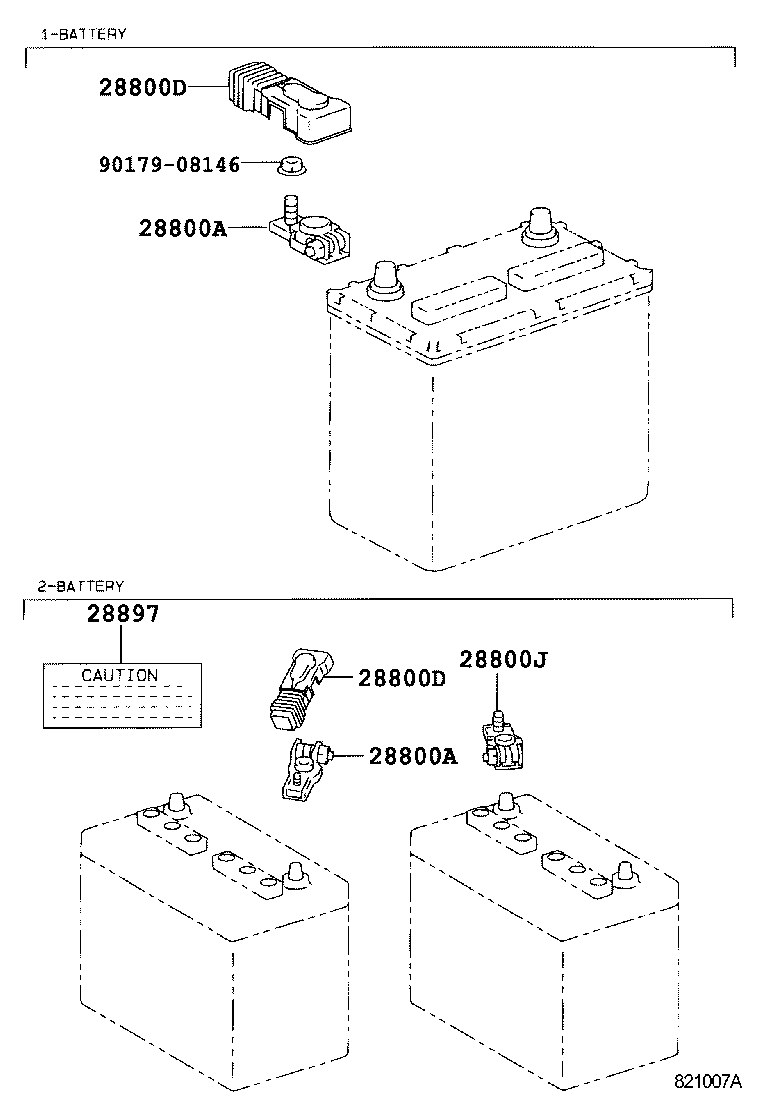

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

diagram 28800A 28800A 28800D 28800D 28800J 28897 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

3RZFE,5VZFE..RZN185,VZN185;1K#,3RZFE,5VZFE..KDN185,KZN185,RZN180,VZN180..SPR,SSR,SSRV,SSRX

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

3RZFE,5VZFE..RZN185,VZN185;1K#,3RZFE,5VZFE..KDN185,KZN185,RZN180,VZN180..SPR,SSR,SSRV,SSRX

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

1KZTE..KZN185..WIB..4FC..SSRX;3RZFE,5VZFE..RZN185,VZN185..SSR,SSRV,SSRX

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

1KZTE..KZN185..WIB..4FC..SSRX;3RZFE,5VZFE..RZN185,VZN185..SSR,SSRV,SSRX

 1
Common parts
90179-08146

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
