RZN185W-GAMVK (1995)

Toyota Hilux Surf

Production Nov 1995 - Jul 1998
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )KDN185,KZN185,RZN185,VZN185

Click highlighted areas on diagram

ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔｽﾎﾟｲﾗ)

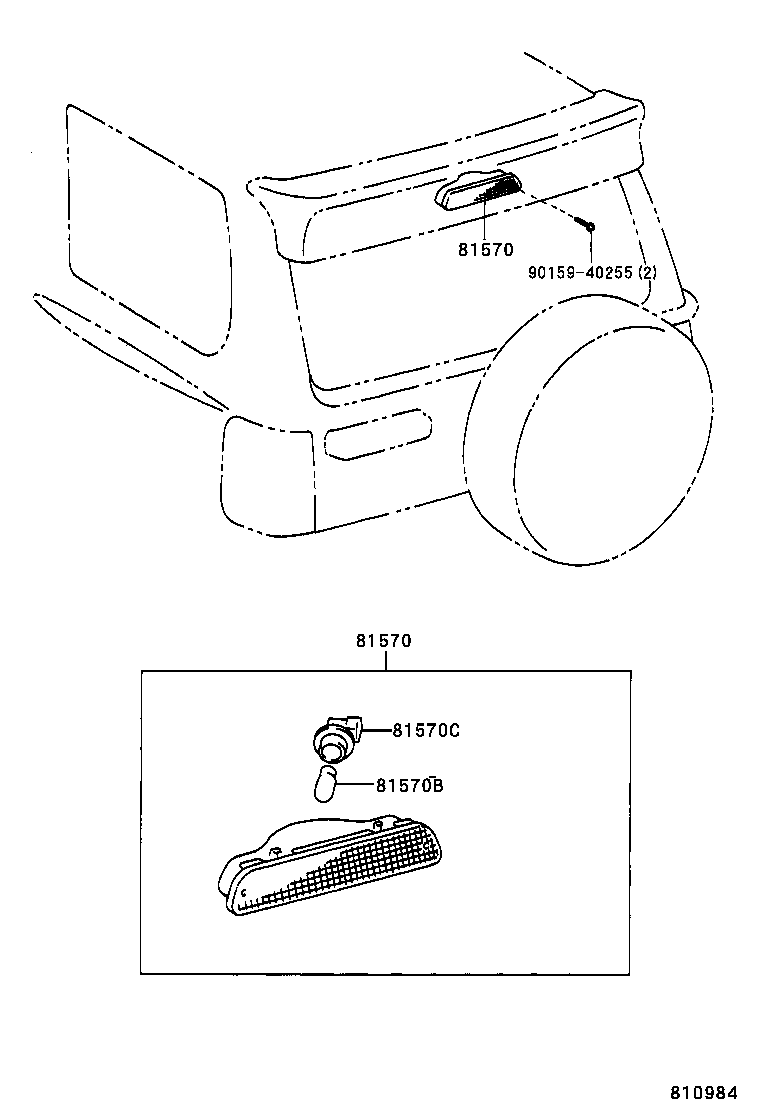

diagram 81570 81570 81570B 81570C 9015940255
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-35040

KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX

 1
81570-35050

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570 - LAMP ASSY, CENTER STOP
81570-35040

KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX

 1
81570-35050

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

KZN185,RZN185,VZN185

12V 16W

 1
81570C - SOCKET, CENTER STOP LAMP
90075-60005

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

 1
Common parts
90159-40255

(9511- )SSR,SSRV,SSRX

Click highlighted areas on diagram

ﾅｼ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔｽﾎﾟｲﾗ)

diagram 81570 81570B 9007502049 9018904042
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-35040

KDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX

 1
81570-35050

KZN185,RZN185,VZN185..SSRG,SSRV,SSRX

ｱﾘ(ﾃﾞｲﾌﾚｸﾀ-=ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

KZN185,RZN185,VZN185

12V 16W

 1
Common parts
90075-02049
90189-04042
